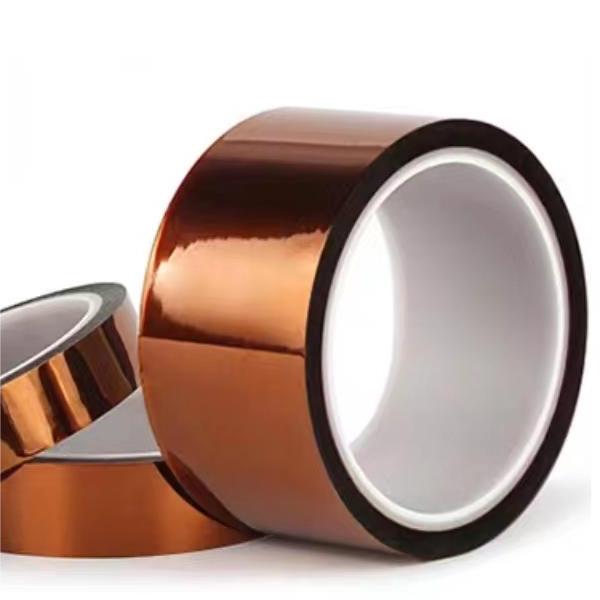

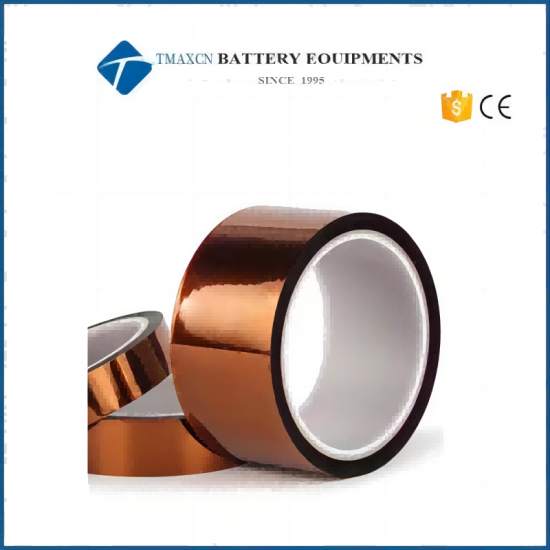

10mm Width High Temperature KAPTON Tape For Lithium Battery Electrode Fixed And Strapping
Model Number:
TMAX-Blue-PT1Compliance:
CE CertifiedPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
2 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Celgard Film For Lithium ion Battery SeparatorNext:
Polymer Lithium ion Battery Side and Top Seal Protective Material ptfe tape/teflon Tape
10mm Width High Temperature KAPTON Tape For Lithium Battery Electrode Fixed And Strapping
SPECIFICATION
This hot melt adhesive/sealant is specific and necessary item for sealing tab (Nickel or Aluminum) in between aluminum-made lamination film (pouch cell case).
Model |
TMAX-W-TTP |
Color |
Milk-White |
Thickness |
100 um |
Width |
4mm, 5mm, 6mm, 7mm, 8mm,10mm, Customized width |
Length |
100m for 1 roll |
Material |
Enhanced Sulfurized Polymer Resin Material (3 Layers Lamination) |
Outside Layers (Both Sides) Thermal Softening Index |
116ºC/ 3 Seconds/ 0.3Mpa/ 180ºC (Reference only) |
Outside Layers (Both Sides) Thermal Melting Index |
135ºC/ 3 Seconds/ 0.3Mpa/ 180ºC (Reference only) |
Middle Layers (Both Sides) Thermal Softening Index |
145ºC/ 3 Seconds/ 0.3Mpa/ 180ºC (Reference only) |
Middle Layers (Both Sides) Thermal Melting Index |
175ºC/ 3 Seconds/ 0.3Mpa/ 180ºC (Reference only) |
Removal Strength from Tab |
> 15N/15mm |
Removal Strength from Al Lamination Film (Cell Case) |
> 35N/15mm |
Resistance to LiPF6 Solution (1:1:1) |
No Change in the Solution @ 85ºC*24 Hours |
