CVD Tube Furnace

1200°C Dual Zones CVD Tube Furnace

  • Model Number:

    TMAX-2-1200-C
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Shipping Port:

    Xiamen
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

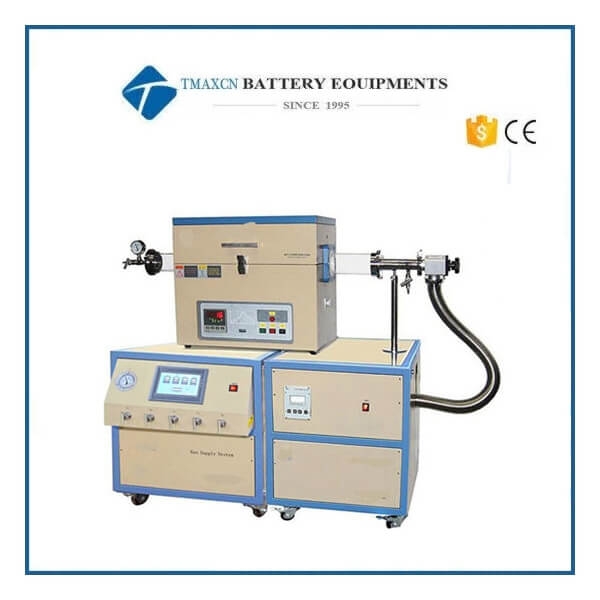

1200°C Dual Zones CVD Tube Furnace


This is a video link to our product.

https://www.youtube.com/watch?v=FzLjvMXq1pY&t=37s



VACUUM PUMP MOBILE CART ONLY AVAILABLE IF YOU PURCHASE A PUMP AND A DIGITAL VACUUM CONTROLLER.


TMAX-2-1200-C series Chemical Vapor Deposition (CVD) multi-zone split tube furnaces feature the famous Kanthal® (Sweden) wire heating elements embedded in high quality Mitsubishi® (Japan) alumina fiber insulation. All steel dual-layer housing ensures durability and helps minimize heat loss to exterior surface.


Furnace operation is controlled by Shimaden® (Japan) 40-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.

All our furnaces are CE compliant.



Features

Compact, portable and lightweight design.

Lower processing temperatures required compare to conventional CVDs.

Film stress can be controlled by high/low frequency mixing techniques.

Split furnace chamber for fast and easy tube access.

Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.

Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.

Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.)

Built-in amp meter and dual voltmeters for easy monitoring and troubleshooting.

Built-in computer interface.

Long life type K thermocouple.

Slidable furnace option gives you ultra fast cooling rates



Safety

Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.

Power failure protection resumes furnace operation right after the point of failure when power is reestablished.

Warning! NEVER fill furnace with explosive gases, including Hydrogen, Carbon Monoxide and Methane.

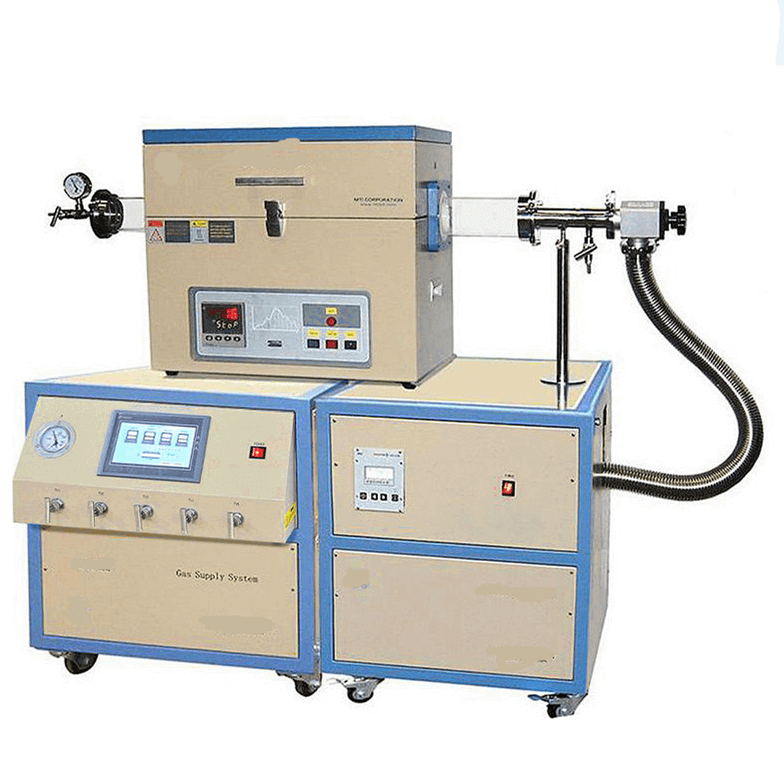

Furnace, vacuum pump and gas mixing system

 Tube material

 Quartz

 Heating element

 Kanthal® (Sweden) resistance coil wire

 Max. vs constant working temperatures

 1200°C max. and 1100°C constant

 Thermo couple type

 K

 Refractory lining

 Mitsubishi® (Japan) 1500 grade fiber alumina

 Temperature controller

 Shimaden® (Japan) fp93 with 4 programs and 40 segments  (ie. 4 x 10 segments or 2 x 20 segments)

 Maximum heating & cooling rate

 < 30°C / min

 Temperature controller precision

 +/- 1°C (+/- 1.8°F)

 Vacuum sealing flange kit

 Stainless steel vacuum sealing flanges with one vacuum gauge,
two valves and four thermal ceramic blocks.

 Electrical requirements

 208-240VAC, 50/60 Hz, single phase


Standard Package

 Part description

   Quantity

Part image

TMAX-2-1200-C split tube furnace

 1 set



 Multi-channel gas supply system

1 set



 Plasma RF power supply (optional)

1 set



 Vacuum pump and enclosure (optional)

 1 set



 Quartz tube

1 pc



 Analog flow meter

1 pc



 Stainless steel vacuum sealing flanges w/ pressure meter

 1 set



 Stainless steel hook

 1 pc



 Alumina ceramic thermal block

 2 pairs



 Thermal gloves

 1 pair



 High temperature Al2O3 alumina crucible

 5 pcs



 Spare fuse

2 pcs



 USB/RS485 computer interface kit

 1 set



 Furnace and Shimaden controller manual

2 pcs
