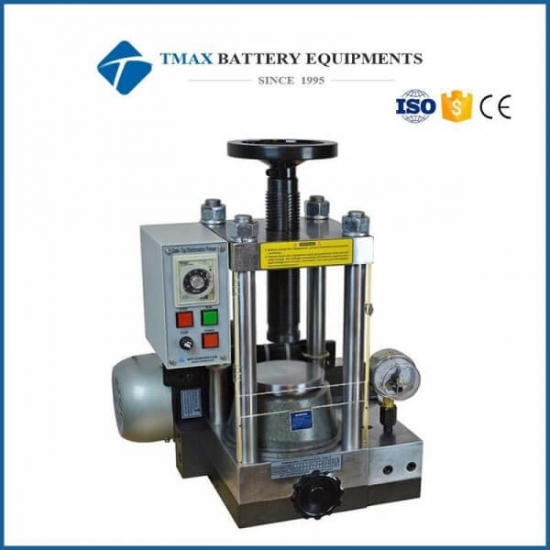

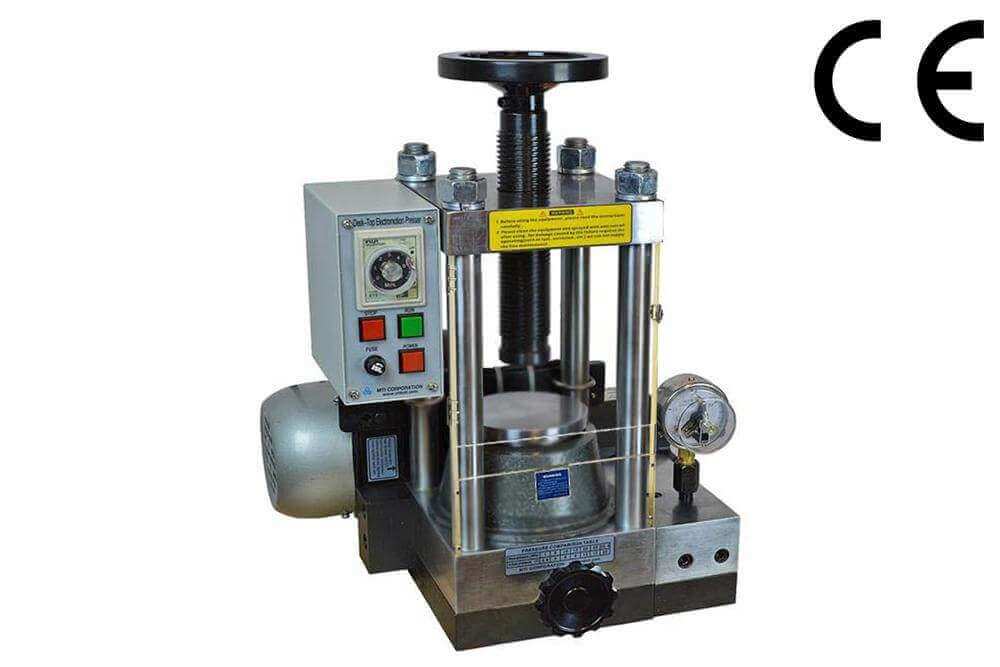

Normal Working Pressure Range

0~20 Metric Tons

Gauge Pressure Value to Force Conversion

Notes:

• Displayed Pressure Value to Actual Applied Force Conversion: 1 MPa = 0.5 Ton
• The actual force applied on the Hydraulic Cylinder (Ton) equal to the force applied on your working piece
• For calculating the actual pressure (MPa) applied on your working piece, please follow the equations in below:

          P = T/(πr^2) x g x 10

• P: Pressure (MPa) applied on your working piece
• T: Force (Ton) applied on the Hydraulic Cylinder
• g: Standard gravity. g ≈ 9.8 m/s²
• π: ~3.14
• r: Radius (cm) of the working piece
• *1 Metric Ton = 1000 kg; 1 MPa ≈ 10 kgf/cm²

Pressure Stability

1MPa /10min

Power

• Standard: 220V AC 50/60Hz ( single phase ) 180W
• Optional: Please order 1000W 110V-220V transformer for using under 110V

Electric Hydraulic Pump

• Pressure gauge with built in pre-stable pressure switch ( accuracy +/-0.5% FS)
• Pressure load will stop when pressure reaches pre-setting point

Bottom Hydraulic Cylinder TravelDistance

0 - 20 mm

Top Support Screw Adjustable Height

180 mm

Protection Cover

• Transparent plastic for safety
• Note: Must close the protection door during pressing

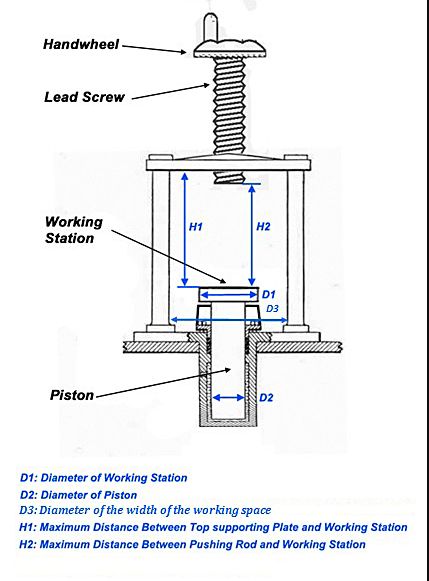

Dimensions of Working Space Under Frame


D1: 98mm
D2: 87mm
D3: 105mm
H1: 150mm
H2: 120mm

Overall Dimension

330mm(L) x 380mm(W) x 480mm(H)

Net Weight

35 kg

Press Dies

• Pressing dies with various diameters are available upon request at extra cost

Warranty

Compliance

• CE Certified
