 powder milling machine

2L-12L powder milling planetary ball mill machine

  • Model Number:

    TMAX-BALL1
  • Compliance:

    CE Certified
  • Warranty:

    One years limited warranty with lifetime technical
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

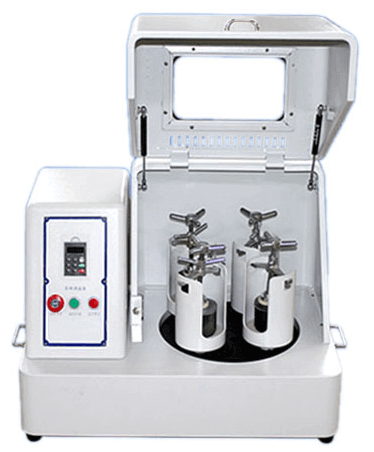

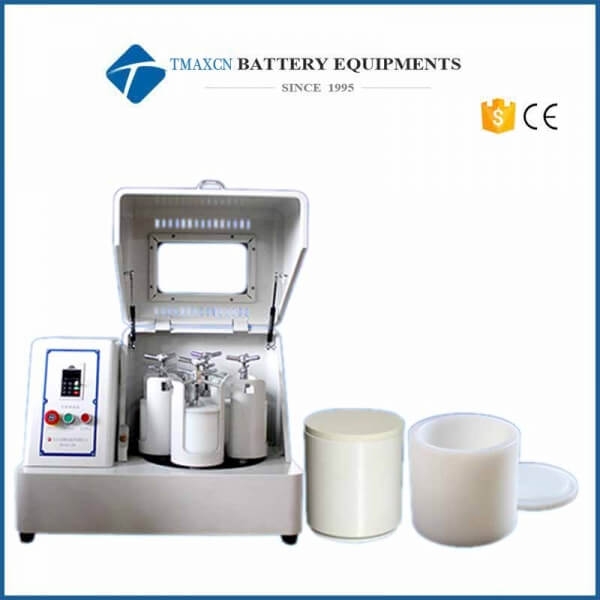

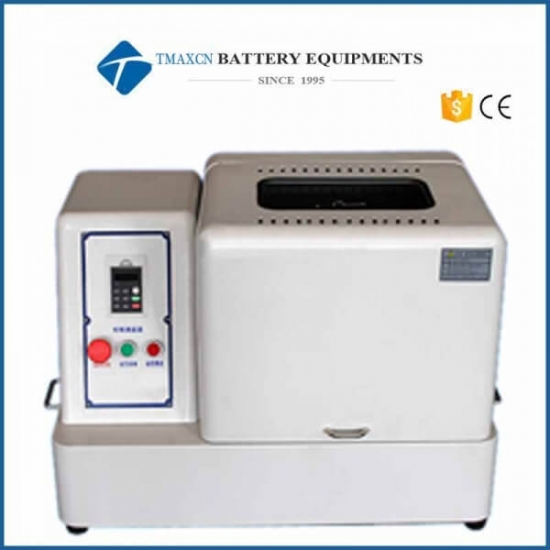

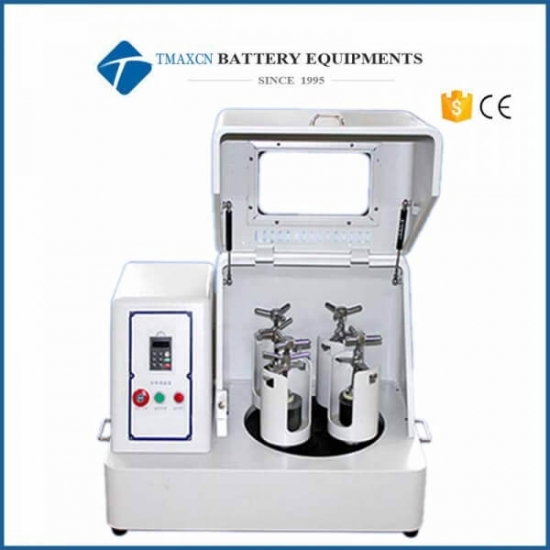

2L-12L  powder milling planetary ball mill machine



Vertical planetary ball mill is a necessary device of high-tech materials mixing, fine grinding, sample making, new product development and small batch production. Tencan planetary ball mill owns small volume, high efficiency, low noise and functional features which is a ideal equipment for R&D institution, university, enterprises laboratory to get samples (each experiment can get four samples at the same time). It gets powder samples under the vacuum state when equipped with vacuum ball mill tank.


Planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be ground by the mill with dry or wet method. Minimum granularity of ground powder can be as small as 0.1μm.


Features of planetary ball mill machine

1.Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
2. Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small Granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.
6. Technical features of Tencan Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.


Technical Parameters of planetary ball mill machine

Drive Mode Gear drive
Operation Mode Two or four grinding tanks working together
Max Load Capacity Less than 2/3 of total volume of grinding jars
Feed Size of Materials ≤3mm
Output Granule Minimum 0.1µm
Rotational Speed Ratio 1/2
Max.Continuous Operating Time 72 Hours
Materials of Jar stainless steel.agate,nylon,corundum, zirconia,etc


Technical Parameter Table(I) of Vertical Planetary Ball Mill (Square Type)
Type NO Specification Volume of Each Matched Pot Quantity Remarks
Tmax-2 2L 50-500ml 4pcs Matched with vacuum mill pots from 50ml to 250ml
Tmax-4 4L 250-1000ml 4pcs Matched with vacuum mill pots from 50ml to 1000ml
Tmax-6 6L 1-1.5L 4pcs Matched with vacuum mill pots from 50ml to 1000ml
Tmax-8 8L 1-2L 4pcs Matched with vacuum mill pots from 50ml to 1500ml
Tmax-10 10L 1-2.5L 4pcs Matched with vacuum mill pots from 1L to 2L
Tmax-12 12L 1-3L 4pcs Matched with vacuum mill pots from 1L to 2L

Accessories of Mill Jars & Balls For planetary ball mill machine

Material Volume of Mill Jar Diameter of Mill Ball (mm)
Stainless Steel 50ml,100ml,250ml,500ml,1L,1.5L,2L,2.5L,3L 1-30mm
Zirconia 50ml,100ml,250ml,500ml,1L,1.5L,2L,3L 1-30mm
Alumina 50ml,100ml,250ml,500ml,1L,1.5L,2L,3L 1-50mm
Tungsten Carbide 50ml,100ml,250ml,500ml,1L,1.5L 3-10mm
Agate 50ml,100ml,150ml,250ml,300ml,400ml,500ml,1L,1.5L,2L 6-35mm
Iron Core PU \ 15-30mm
Nylon 50ml,100ml,250ml,500ml,1L,1.5L,2L,2.5L,3L \
PU 50ml,100ml,250ml,500ml,1L,1.5L,2L,2.5L,3L \
PTFE 50ml,100ml,250ml,500ml,1L,1.5L,2L,2.5L,3L

\
