5V12A 8 Channel Battery Testing System for Pouch Cell/Polymer Battery

1. This tester can analyze polymer and cylindrical batteries from 0.1mA to 12A, up to 5V.

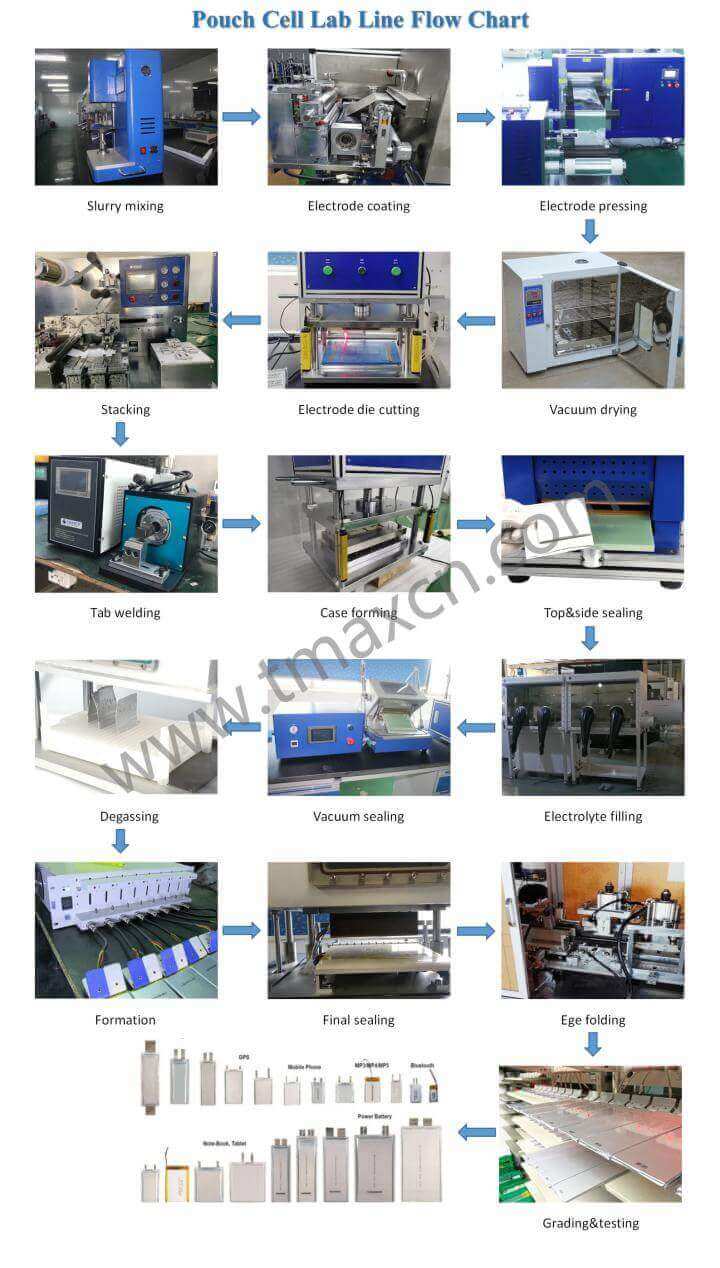

2 The battery tester system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing and etc.



Specifications

Items		Values
Input AC		AC 220V/110V ±10% / 50Hz
Input power		851 W
Resolution		AD：16bit；DA：16bit
Input impendence		≥1MΩ
	CV output range	25mV~5V
	Min discharge voltage	1.0V for universial holder,1.5V for 2m cable
Voltage	Accuracy	± 0.05% of FS
	Stability	± 0.05% of FS
	Output range/channel	Range1: 5mA-1A; Range2: 1A-12A
	Accuracy	± 0.05% of FS
Current	CV cut-off current	Range1: 2mA; Range2: 24mA
	Stability	± 0.05% of FS
	Output power/channel	60	W
Power	Stability	± 0.1% of FS
	Current rsponse time	Max rising time:1ms
Time	Working step time	≤(365*24)h/step Time format-00：00：00.000(h、m、s、ms)
		Min data record interval:100ms
	Data record conditions	Min voltage change：10mV
Data record		Min current change：Range1: 2mA; Range2: 24mA
	Frequency	10Hz
	Charge modes	CC、CV、CCCV、CP
Charge	Cut-off condition	Voltage、Current、Time、Capacity、-△V
	Discharge modes	CC、CP、CR、CV
Discharge	Cut-off condition	Voltage、Current、Time、Capacity、-△V
	Charge	CC、CP
	Discharge	CC、CP
	Min pulse width	500ms
Pulse	Pulse counts	Up to 32
	Chg and Dischg switch	Supported
	Cut-off condition	Voltage、Time
DCIR	Supported
	Max cycles	65535
Cycle	Max steps	254
	Cycle nest	3
		● Power-off data protection
		● Off-line operation mode
Protection	Safety protection	● User-defined protection conditions, such as upper and lower limited current/voltage, delay time, temperature, etc.
Channels feature		Independent pairs of closed loop for constant
Channels control mode		Independent control
Data acquisition method		Kelvin connection
Noise		<85dB
Database		MySQL
Communicatin		TCP/IP
Operating system		Windows 7/8/10 64 bit
Data export		EXCEL、TXT、CSV、PDF、Plot/Graph
Disk drive		500GB
Communication port		Ethernet port
Leak Current		0.0000005mA
Channels per unit		8
Operation and storage environment requirement
Items		Values
		0℃~40℃ (When the temperature is 25±10℃, the accuracy error caused by temperature change is less than 50ppm /℃)
Operation environment temperature
Storage environment temperature		-10℃~50℃
Operation environment humidity		≤70% RH(no moisture condensation)
Storage environment humidity		≤80% RH(no moisture condensation)
Clamps and dimensions
Items		Values

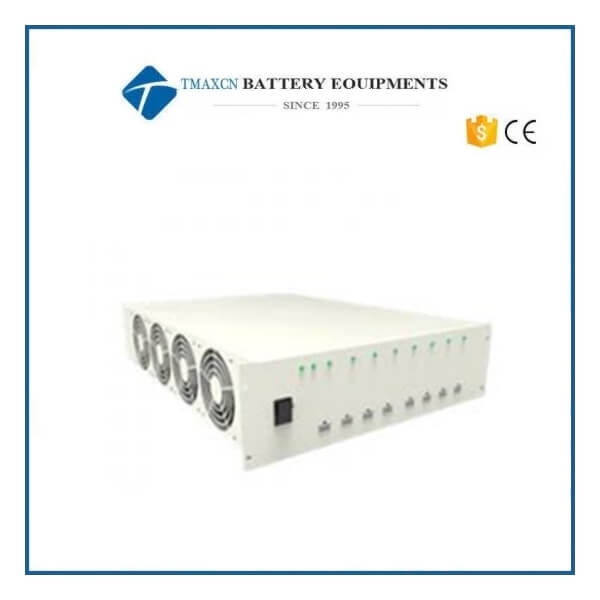

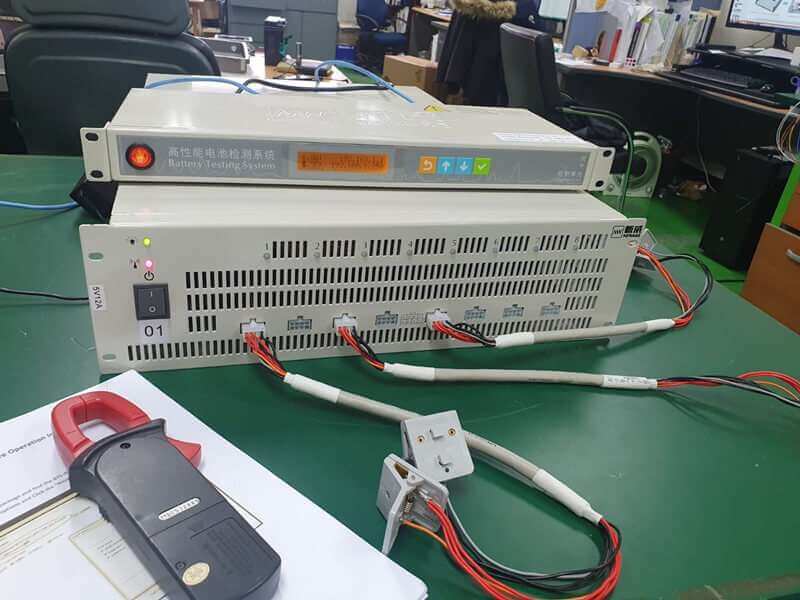

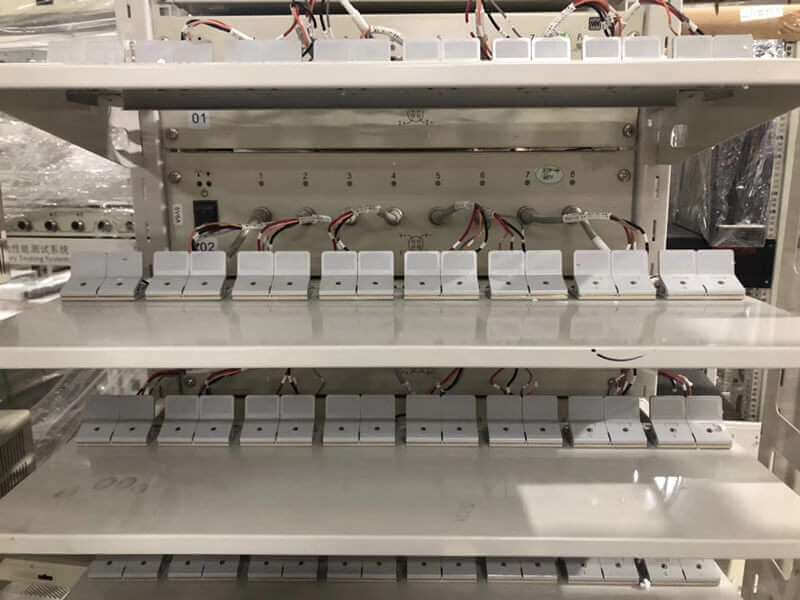

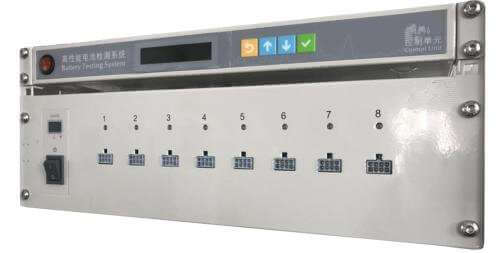

Tester pictures

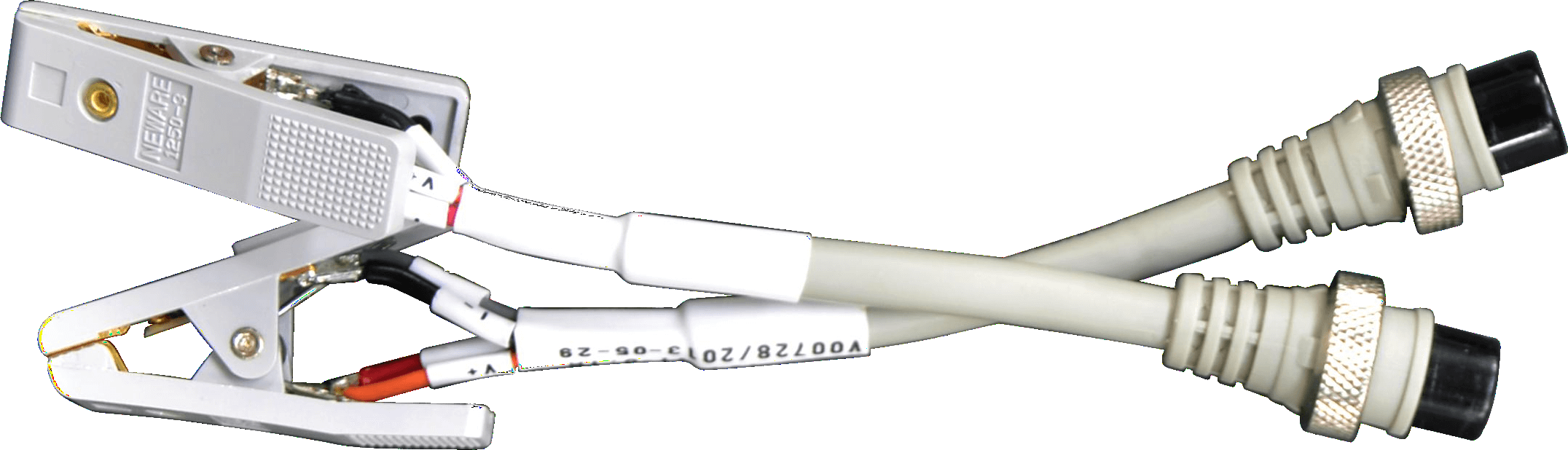

Clamps pictures		Alligator		Polymer	Coin
		Pictures just for reference
Dimensions（W*D*H）(mm)		3U3F，480*730*130
