Roll Slitting Machine

Battery Electrode Roll Slitting Machine For R&D Laboratories

  • Model Number:

    TMAX-MQ350A
  • Dimension(L*W*H):

    20-500mm
  • Net Weight:

    200kg
  • Compliance:

    CE Certified
  • Warranty:

    One year limited warranty and lifetime support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

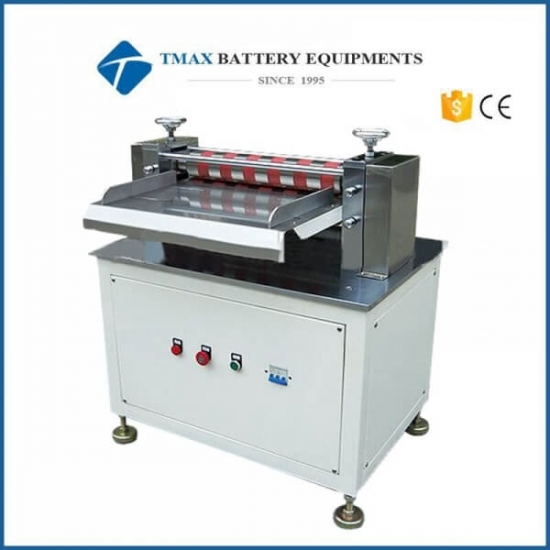

Battery Electrode Roll Slitting Machine For R&D Laboratories

Features

1.TMAX-MQ350A model Battery Electrode Slitting machine  is a semi-automatic slitting machine for preparing electrode of cylinder batteries and prismatic batteries in R&D laboratories and production line.

2 .The slitting machine can slit electrode with width up to 400mm, and with finished slitting width from 20mm to 400mm with different model cutter blade.

3 .This equipment is suitable for rechargeable lithium batteries cathode and anode electrode of the longitudinal cutting, the electrode of the base material can be aluminum foil and copper foil, sliced edge tidy, high dimensional accuracy, no burr, it is an important equipment in plate processing.


 Specification

Model

Battery Electrode Slitting Machine

Source voltage

AC 110V-220V, Customized, 50HZ

Power

800W

Warranty

Two years limited warranty and lifetime support

Slitting mode

Single knife hobbing

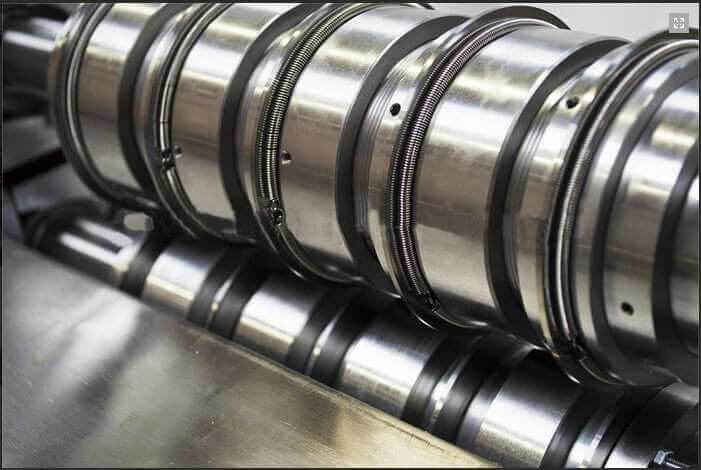

Knife type

Upper and lower round knife

Slitting width

20-500mm

Slitting thickness

100-300um

Hob diameter

 Φ80 mm

Slitting speed

10m/min, Adjustable

Dimension(L*W*H)

610*610*1100mm

Weight

200kg


Related Machine for Cylindrical Cell Making

Process

 Electrode Rolling

 Ultrasonic Welding

 Electrode Winding

Spot Welding



Grooving

Sealing

Testing

Specfication

Roller Size:optional

(100*100)mm
(100*200,100*250)mm
(100*300)mm
(100*400)mm



 Welding Power:optional

80-6500W



Manual or semi-sutomatic optional



Single welding needle or double welding needles optional

Lab cylindrical cell grooving machine



Manual Sealing or Pneumatic Sealing Machine





5V 3A or 5V 6A 8 Channel Battery Tester

Machine

Rolling Press Machine

Ultrasonic Spot Welding Machine

Winding Machine

Spot Welding Machine

Grooving Machine

Sealing Machine

Battery Tester

Pictures















 Pouch Cell Preparation

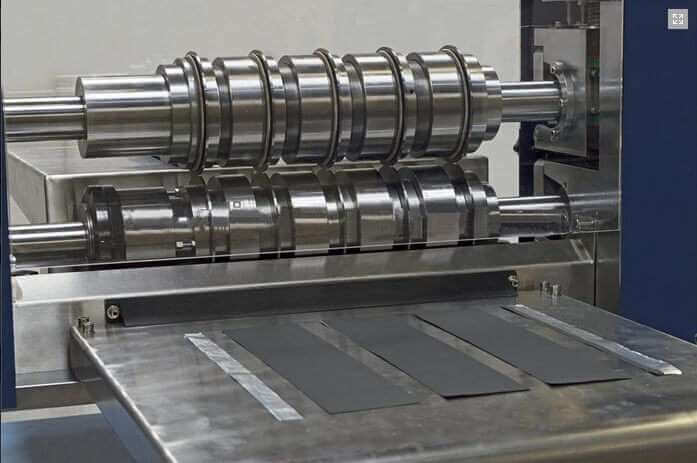

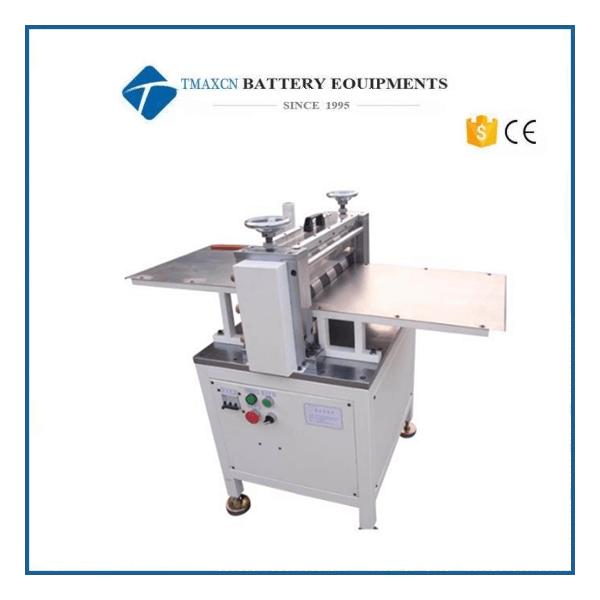

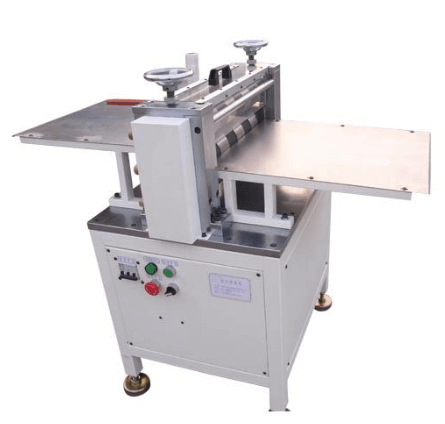

Electrode Slitting Machine

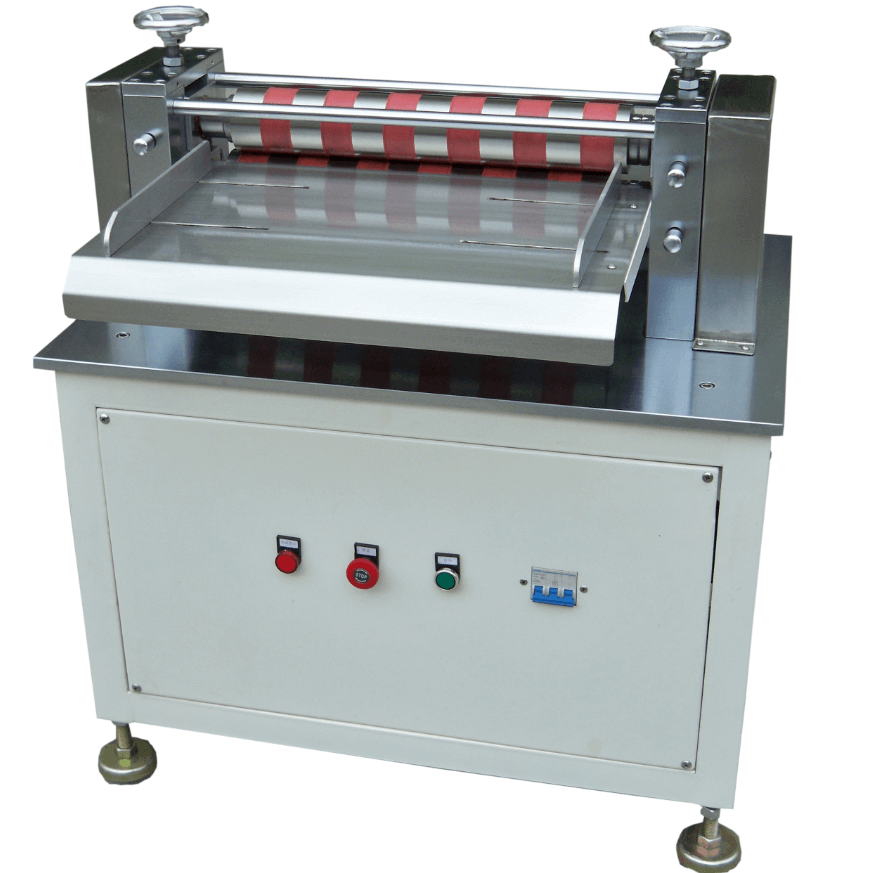

 Electrode Slitting Machine
