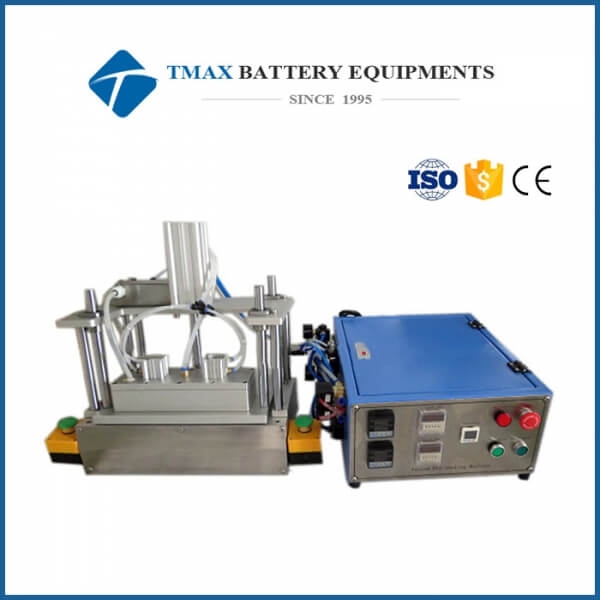

Battery Pouch Vacuum Sealing Machine For Sealing Aluminum-laminated Case
Model Number:
TMAX-JK-200Input Power:
1200WDimension(L*W*H):
600 x 300 x 500mmNet Weight:
75kgCompliance:
CE CertifiedWarranty:
1 Year limited warranty with lifetime supportMOQ:
1Payment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Battery Sealing Machine For Pouch Cell Top-side SealingNext:
Pouch Cell Vacuum Sealer Sealing Machine for Battery Making
Battery Pouch Vacuum Sealing Machine For Sealing Aluminum-laminated Case
Battery Pouch Vacuum Sealing Machine
1. The battery pouch vacuum sealing machine TMAX-JK-200 is mainly used
for sealing aluminum-laminated
case in glove box after injection of electrolyte into pouch Li-ion cell or after formation for final seal (polymer Li-Ion cell).
2. The vacuum sealing
machine is with sealing machine and control box separately
design, When used for pre-sealing, the sealing unit can be used in the glove box.
3. For final sealing, it can be used for lab or small quantity
producing, if with production line, Suggest use the vacuum sealer for
final pouch.
SPECIFICATIONS:
Model |
Vacuum pre-sealing machine TMAX-JK-200 |
Power Supply |
110V-240V, selectable, Single Phase 50/60Hz |
Power |
1200W |
Warranty |
One Year limited warranty with lifetime support |
Sealing Pressure |
Vacuum chamber lid and sealing die need to be drived by compressed high purity inert gases with recommended 60 psi |
Vacuum degree |
-90kpa-0, adjustable |
Sealing head length |
200mm, customize |
Sealing stamp width |
5mm, customized |
Sealing temperature |
RT-250℃, adjustable with control accuracy of +/-2°C |
Heating Timer |
0 - 99 seconds Adjustable |
Air supply |
0.4-0.6MPa |
Dimension(L*W*H) |
Sealing Unit : 600mm(L) x 300mm(W) x 500mm(H) Control Unit: 400mm(L) x 450mm(W) x 200mm(H) |
Package dimension |
660*600*590mm |
Net weight |
Sealing machine : 45kg Control box : 15kg |
Package weight |
75kg |

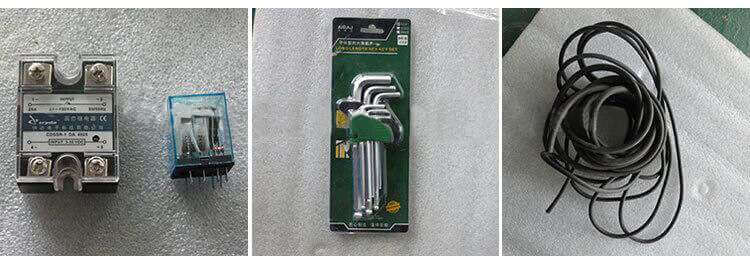

Accessories parts |
1 piece heating pipe 3 meters seal components 1 piece intermediate relay 1 piece time relay 1 customized power plug line |
