Coin Cell Case

Coin Cell Case with One Side Kapton Window for In-situ X- Ray Analysis

  • Model Number:

    TMAX-CCC
  • Type:

    Coin Cell Cases
  • Dimension(L*W*H):

    CR 2016 2025 2032 2450 2045
  • Compliance:

    CE Certified
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    2 days
Product Details

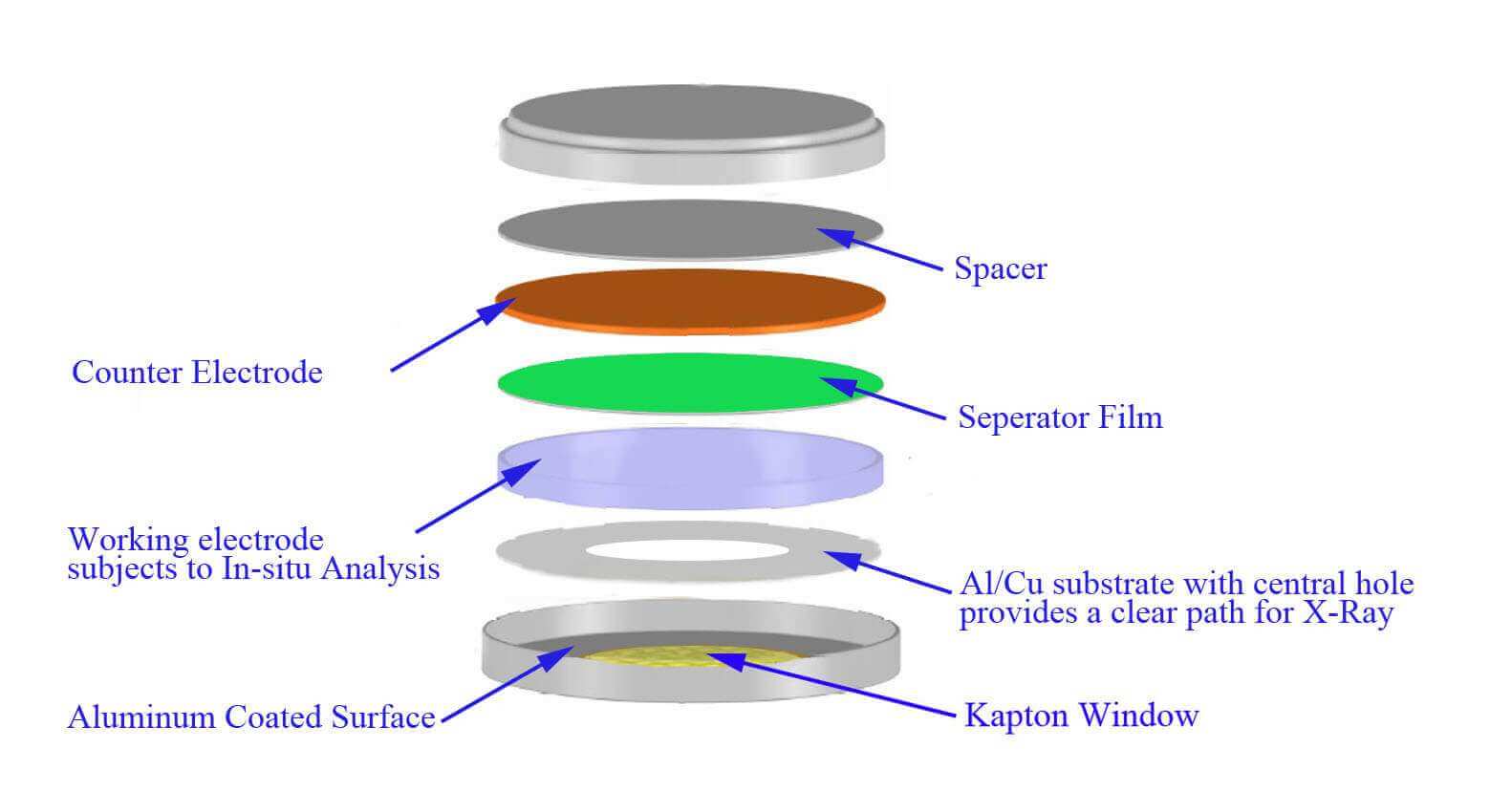

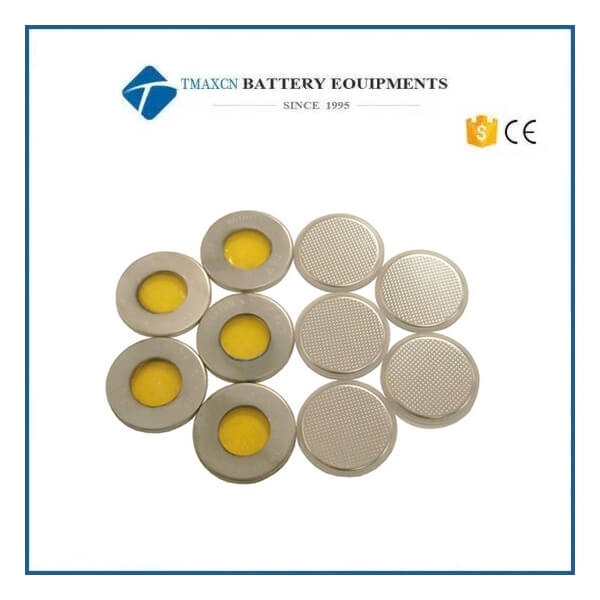

Coin Cell Case with One Side Kapton Window for In-situ X- Ray Analysis


Dimensions (Dia x Height)

20mm x 1.6mm

Or customized

Kapton window thickness

0.18mm

Coating

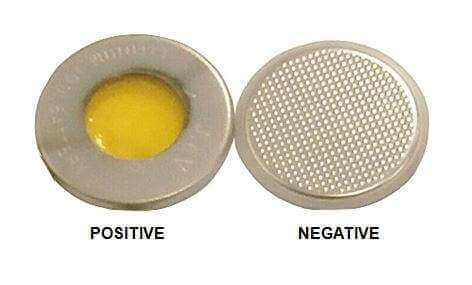

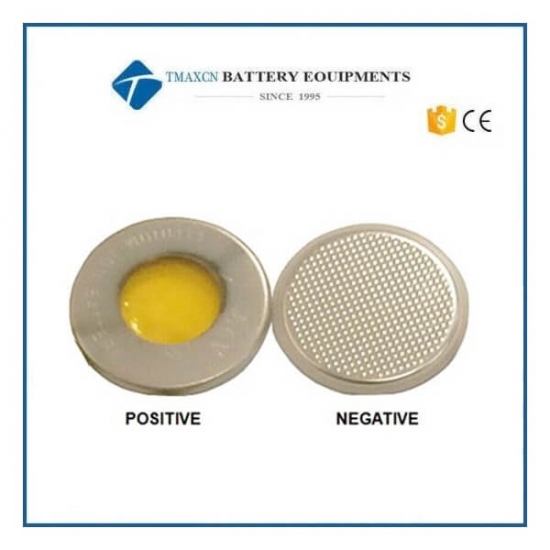

The positive side of casing is coated with aluminum

Al coating thickness

< 0.01mm

Weight

0.25 Oz (7 grams)

Application note

· In order to get better in situ XRD curve for battery, please use carbon foil as current collector instead of Al or Cu foil, which will absorb X-ray.


Other coin cell type:

Name Model/Size Material
Coin cell case CR2032 304ss/316ss/Gold-Coated/Al-Coated/ Kapton
CR2016 304ss/316ss/ Kapton
CR2025 304ss/316ss
CR2450 304ss
CR2430 304ss/316ss
CR2325 304ss
CR1620 304ss
CR1632 T:3.2mm D:16mm  304ss
CR1616 304ss
CR1220 304ss
CR1820 304ss
CR0927 304ss
CR1220 304SS
CR1025 304SS
CR1016 304SS
CR3048 304SS
CR3032 304SS
CR2477 304ss
CR2032 Lithium air case 304ss
Coin cell spacer 15.8*0.2mm 304ss/316ss
15.8*0.5mm 304ss/316ss/Pure aluminum
15.8*0.8mm 304ss/316ss
15.8*1mm 304ss/316ss
20.2*0.4mm 304ss
Wave Sprin  (Belleville Washers) 15.4O.D*10.5 I.D*1.0Height*0.25 Thickness mm 304ss/316ss
Coin Cell Conical Spring 15.4 mm dia * 1.1 mm height *0.25 mm thickness 304ss/316ss
20*1.7mm 304ss
