Product number

Technical name

Technical Parameters

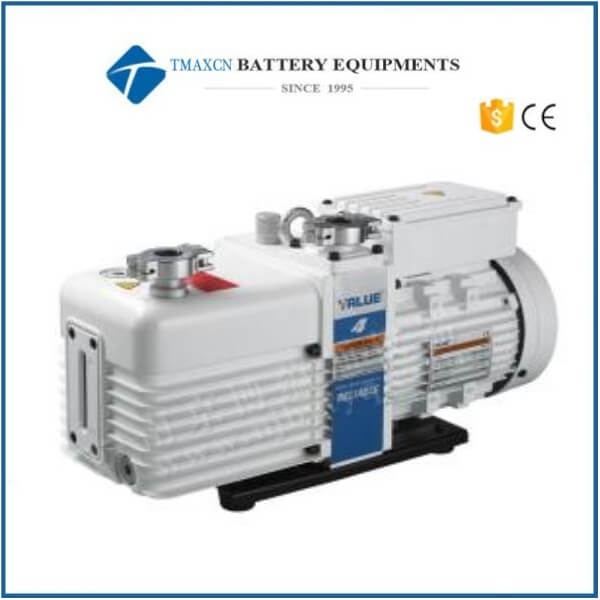

TMAX-vane pump1

Pumping speed m3/h(L/s)

50Hz

8 m³/h

2.2 L/s

60Hz

9.6 m³/h

2.6 L/s

Limit partial pressure - no gas town (Pa)

5x10-2

Ultimate total pressure - no gas town (Pa)

5x10-1

Ultimate total pressure - gas town (Pa)

3

power supply

Single phase / three phase

Motor power (KW)

0.4 KW/0.37 KW

Intake and exhaust connection port DN

KF16/25

Oil consumption

0.6-1 L

Motor speed (rpm)

50Hz

1440 rpm

60Hz

1720 rpm

Working temperature

5-40℃

Noise (dB)

≤56

Weight (kg)

21kg
