Electric Injection Pump

Double Head Electric Injection Pump

  • Model Number:

    TMAX-S1876
  • Input Power:

    200W
  • Dimension(L*W*H):

    290*210*145mm
  • Net Weight:

    4.3kg
  • Compliance:

    CE Certified
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

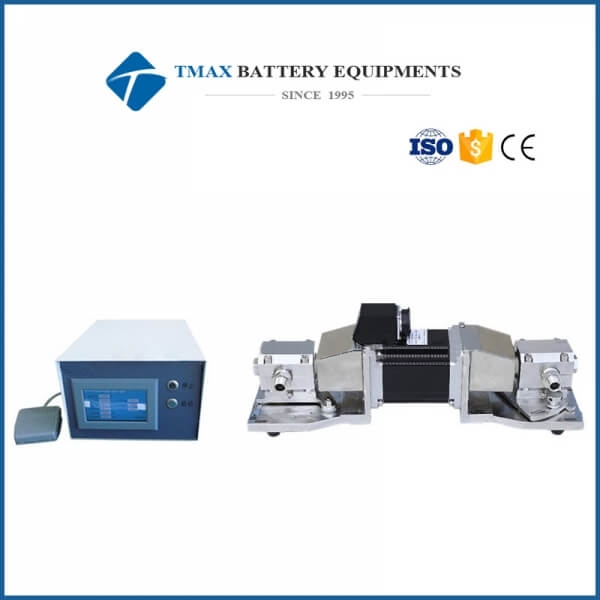

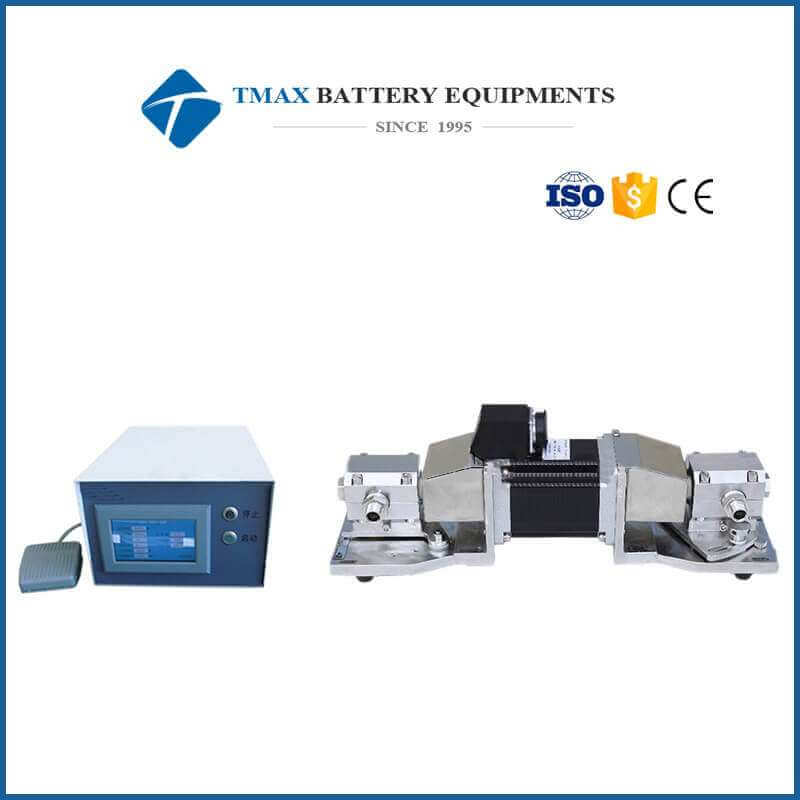

Double Head Electric Injection Pump


Double Head Electric Priming Pump is mainly used for the battery electrolyte, capacitor, acid, alkali, glue, reagents, and other industries of high precision fluid metering injection liquid

2 This ceramic pump has high safety performance with Password protection and factory restore function to ensure setting parameters can not be changed arbitrarily.


SPECIFICATIONS:

Model

Double Head Electric Priming Pump  TMAX-S1876

Warranty

One year limited and lifetime support

Type

Rotating reciprocating positive displacement special ceramic injection pump

Speed (r/min)

18-1000, According to system configuration and fluid characteristics

Stroke number

1-10000times, According to system configuration and fluid characteristics

Ceramic Pump

Materials

Using nanotechnology and gel injection molding processing and molding technology,

the microstructure uniformity, high density

Pump core technology

High precision polishing processing, do not need to seal and lubricating oil

Pump core performance

High temperature resistance, wear resistance, acid and alkali resistance,

high hardness and low coefficient of friction

Capacity range

 Double pump, Max0-1876 microlitre/one stroke

Ceramic pump sleeve

SUS316 stainless steel

Filling accuracy

Within 5‰

Import and export pipeline

Standard

(liquid into the tube diameter 6 mm, outside diameter of 8 mm,

tube inner diameter 4 mm, outside diameter 6 mm)

Dimension

270*120mm*145mm (L*W*H)

Weight

About 2.8kg

Controller Box

Source voltage

AC110V/220V, 50/60HZ Single phase

Power

200W

Dimension

290*210*145mm (L*W*H)

Weight

4.3kg

Standard interface

I/O, RS232, CC TRIG, AUX OUT (optional pedal)

Safety performance

Password protection and factory restore function

to ensure setting parameters can not be changed arbitrarily
