Edge Folding Machine for sale

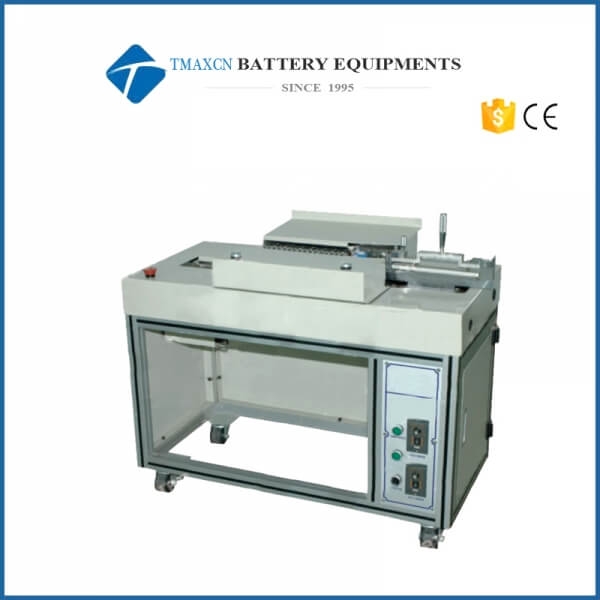

Edge Folding Machine

  • Model Number:

    TMAX-A-019
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

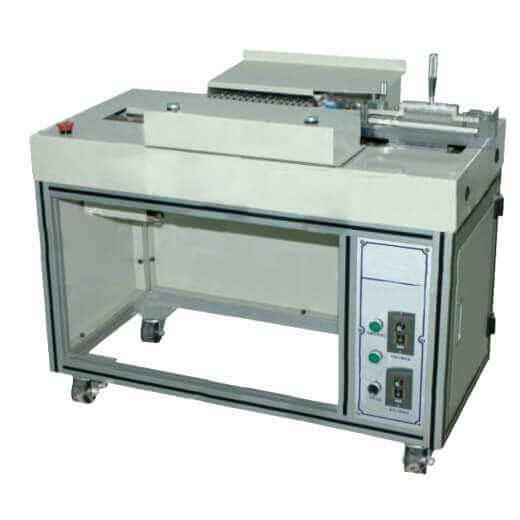

Edge Folding Machine


Functions

This equipment is suitable for soft package lithium battery removal of the redundant edges on both sides, double flanged after trimming, hot finalize to sharp.


Features
Feeding station is equipped with batteries positioning, positioning width adjustable, ensure the battery in the jig location;
Free margin-cutting mechanism, trimming width can be precise fine-tuning
Mirror precision polishing wheel group, smooth finish double flanged;
Adjustable hot side temperature, pressure, time to finalize the design module, ensure that after folding battery overall width uniformity;
High production efficiency, to complete a movement cycle just 5 seconds (including heating side 2 s);
Fixture height is adjustable, need to adjust to adapt to different thickness of battery production;
The trigger open clamp, loading/adding at the same position, easy to operate;
Margin-cutting mechanism, folding wheel mechanism, hot side are in the same piece of big plate, below the bottom plate is equipped with linear guide, fine tuning screw, change battery width can be adjusted quickly;

Fixed round cutter structure, the blade just put the knife edge rotating an Angle can use again, without repair the mold can be used more than 1 million times.


Technical Parameters(for reference)

ITEM

MAIN PARAMETERS

Measures

L*W*H 1050*550*850mm

Weight

About 300Kg

Power

AC220V/50Hz, 1.5Kw

Air source

0.6Mpa,5L/S

Applicable range

L250mm,W:30-200mm,T:2.5-20mm

Capacity

400-1000P/H

Action

99%
