Spin Coater

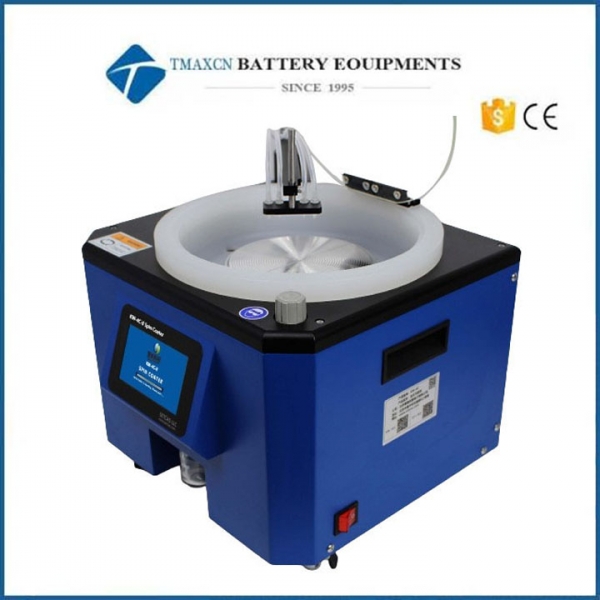

High-speed Benchtop Spin Coater with Integrated 4 Coating Development Pipes

  • Model Number:

    TMAX-4C-II

  • Dimension(L*W*H):

    210mm(W)X220mm(D)X160mm(H)

  • Net Weight:

    10KG

  • Compliance:

    CE Certified

  • Warranty:

    Two Years limited warranty with lifetime support

  • Shipping Port:

    Xiamen

  • Payment:

    L/C D/A D/P T/T Western Union

  • Delivery Time:

    5 days
Product Details

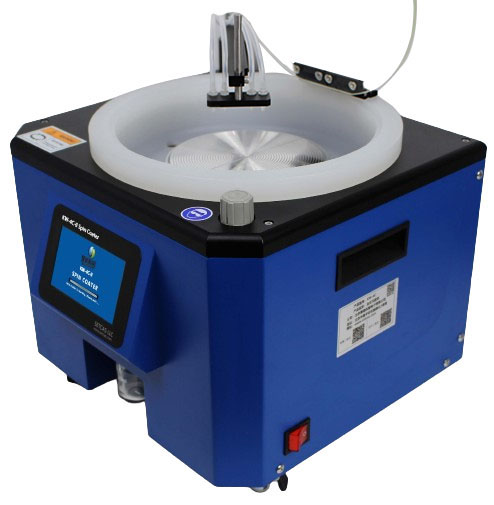

High-speed Benchtop Spin Coater with Integrated 4 Coating Development Pipes


Spin Coater




Key Features：

1.  Anti-flying chip protection and alarm, formula with power-offprotection function

2.  Anti-glue protection and alarm, integrated anti-glue system, supporting development system, and supporting anti-glue plate holder

3.  The adsorption force is adjustable, can be displayed, and can be monitored in real time. If the adsorption force is insufficient, it will alarm, prohibit starting and stop immediately.

4.  The motor can rotate forward and reversely

5.  Adjustable acceleration (acceleration: 10- 10000RPM/S, speed range: 50- 12000RPM)

6.  With communication interface: USB, external mouse and keyboard, transfer recipes through U disk

7.  With cover opening protection function

8.  Integrated 4-way glue application and development pipeline, with automatic swing arm, 2-way glue dispensing, and 2-way development

Spin Coater Specifications

Substrate size

5mm to 150mm（ 6 inches）

Speed range

50- 12000RPM

Acceleration range

10- 10000RPM/S， Adjustable

Motor speed stability

±1RPM

Spin coating uniformity

±1%

Glue coating and developing system

Integrated 4-channel glue application and development management,  standard 2-channel automatic  glue  application  and development module

Human machine interface

4.3 inch touch screen

Communication interface

USB  interface,  can be connected  to the wireless  mouse   and keyboard: the machine can be placed in the glove

Turn around

Can rotate forward and reverse

Stylus

Stylus BAMBOO resistance pen (standard)

Vacuum Pump

SC-550V

Set data

Unlimited group data, each group of 10 speeds (standard)

Seconds per period

0- 10000s

Storage data

Unlimited data

Data protection

With power-down protection function by default

Operating voltage(Spin Coater)

AC100-250V, single phase, 50/60Hz

Operating voltage(Pump)

AC220V(Standard)    AC110V(Optional)

Adjustable vacuum adsorption force

Yes

Pumping speed

≥60L/MIN

Max vacuum

-85KPA

Sound Level

≤55db

Spin coater power

200W

Pump power

350W

Dimensions(Spin Coater)

210mm(W)X220mm(D)X160mm(H)

Weight(Spin Coater)

10KG

Weight(Pump)

9KG

Relative humidity

< 85%

Ambient temperature

0-40℃

Warranty

1 year



Spin Coater
