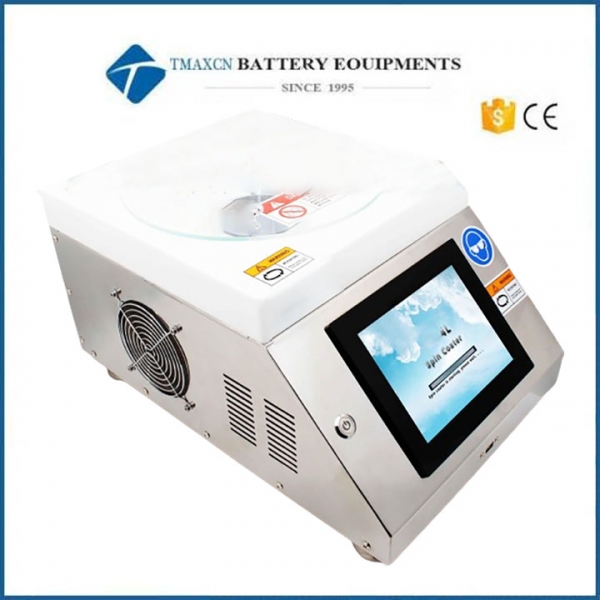

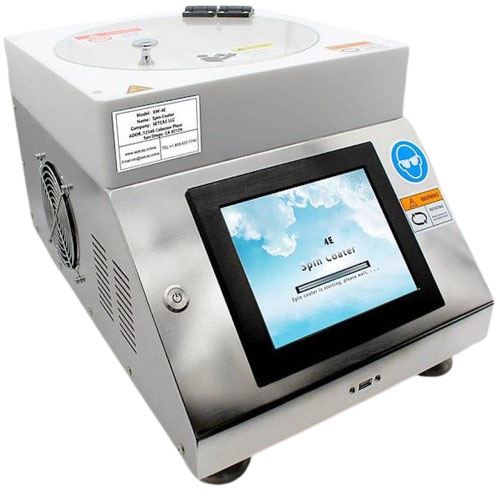

Lab 200C Spin Coater with Bluetooth Communication Function And Supporting Remote Communication Software

Model Number:
TMAX-4L-E
Dimension(L*W*H):
340mm(W)X500mm(D)X250mm(H)
Net Weight:
18KG
Compliance:
CE Certified
Warranty:
Two Years limited warranty with lifetime support
Shipping Port:
Xiamen
Payment:
L/C D/A D/P T/T Western Union
Delivery Time:
5 days

WhatsApp : +86 13003860308
Email : David@tmaxcn.com
Email : Davidtmaxcn@gmail.com
Wechat : 18659217588

Product Details

Lab 200C Spin Coater with Bluetooth Communication Function And Supporting Remote Communication Software

Key Features：

1. With heating function: room temperature -200℃

2. With Bluetooth communication function and supporting remote communication software (only supported by KW-4E-I and above models)

3. Can be equipped with 2-4 channels of automatic glue dispensing and developing function (only supported by KW-4E-II and above models)

4. The adsorption force is adjustable, the adsorption force is displayed in real time, and it has leakage recovery function (only supported by KW-4E-III model)

5. The chamber is made of polytetrafluoroethylene PTFE material

6. Spin coating can be reversed and forwarded

7. Motor imported from Germany

Spin Coater Specifications

Substrate size	5-200mm（ Standard）/5-600mm （Optional）
Speed range	10- 12000RPM（ Standard）/10-20000RPM （Optional）
Acceleration range	10-30000RPM/S， Adjustable
Motor speed stability	±1RPM
Spin coating uniformity	±1%
Heating range	Room temperature -200℃
Heating Speed	to 100℃ (1S) to 200℃(2S)
Cooling rate to room temperature	2 second
Human machine interface	8-inch touch screen
Communication interface	USB (standard) / RS485 (standard) /Bluetooth (Optional)
Turn around	Support forward and reverse
Stylus	Stylus BAMBOO resistance pen (standard)
Vacuum Pump	SC-550V
Set data	Unlimited groups data,， 10 speeds per group (standard)
Seconds per period	0- 10000s
Storage data	Unlimited data
Data protection	default with power-down protection
Operating voltage(Spin Coater)	AC100-250V, single phase, 50/60Hz
Operating voltage(Pump)	AC220V(Standard) AC110V(Optional)
Pumping speed	≥60L/MIN
Max vacuum	-85KPA
Sound Level	≤55db
Spin coater power	650W
Pump power	350W
Dimensions(Spin Coater)	340mm(W)X500mm(D)X250mm(H)
Chamber material	Overall PTFE material
Weight(Spin Coater)	18KG
Weight(Pump)	9KG
Relative humidity	< 85%
Ambient temperature	0-40℃
Warranty	1 year
