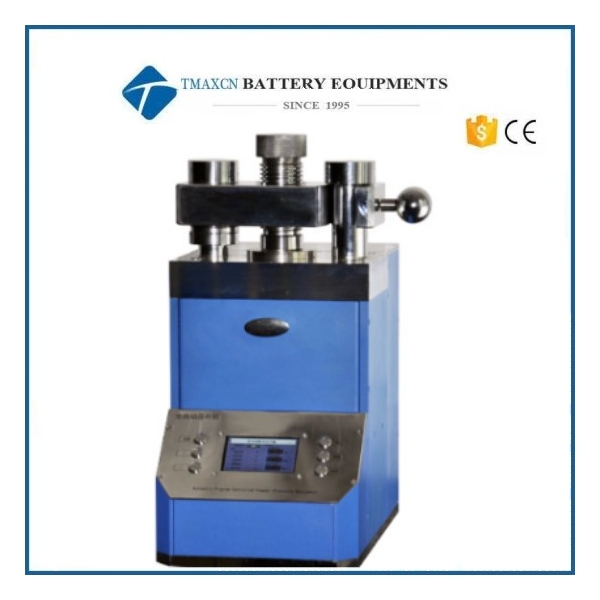

Lab 60T Automatic Fluorescent Powder Pellet Press

Model Number:
TMAX-PP-60X
Compliance:
CE Certified
Warranty:
One year limited standard warranty
Payment:
L/C D/A D/P T/T Western Union
Delivery Time:
5 days

WhatsApp : +86 13003860308
Email : David@tmaxcn.com
Email : Davidtmaxcn@gmail.com
Wechat : 18659217588

Previous:
60T Lab Electric Isostatic Hydraulic Press
Next:
Laboratory 40T Automatic Isostatic Powder Tablet Press

Product Details

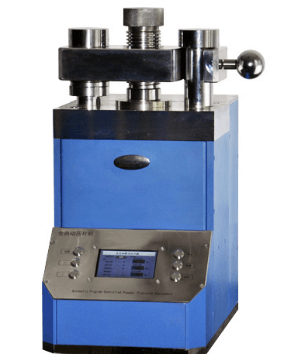

Lab 60T Automatic Fluorescent Powder Pellet Press

Parameter

Model	PP-60X
Pressure range	0-60t
Pressurization process	Program pressurization - program pressure maintaining - timed pressure relief - automatic sample withdrawal
Compress time	0-999 s
Pressure conversion	The program automatically converts the pressure of the mold
LCD	4.3 inch LCD screen
Built-in mold	Boric acid/steel ring/plastic ring mold (built-in 1 set of molds)
Sample size	Standard Φ40mm
Mold material	High chromium die steel with gold indenter
Demoulding method	Automatic demolding
Dimentions	300520580mm（LWH）
Device power	220V（50Hz/60Hz）
Equipment weight	180kg

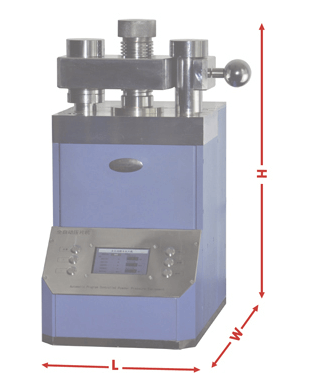

Tablet press size diagram

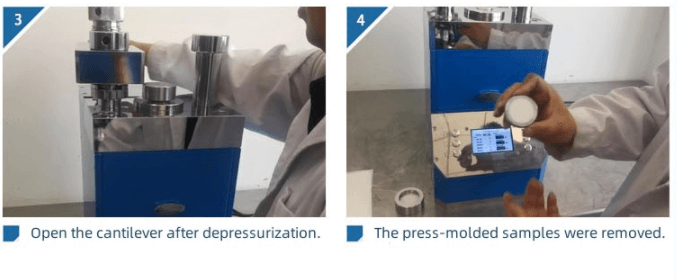

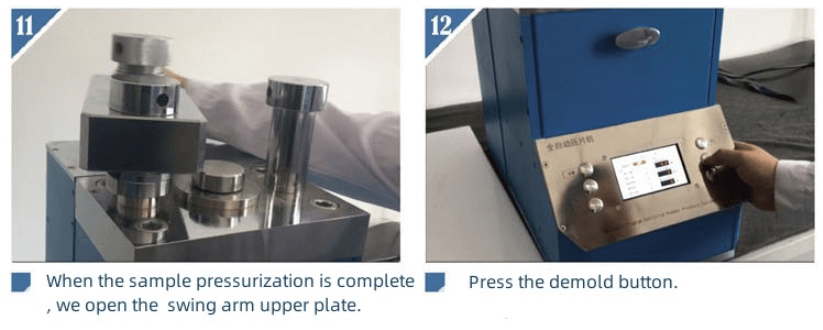

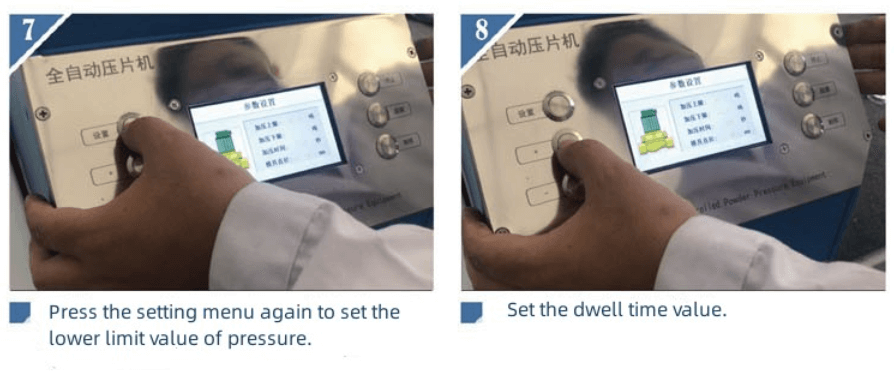

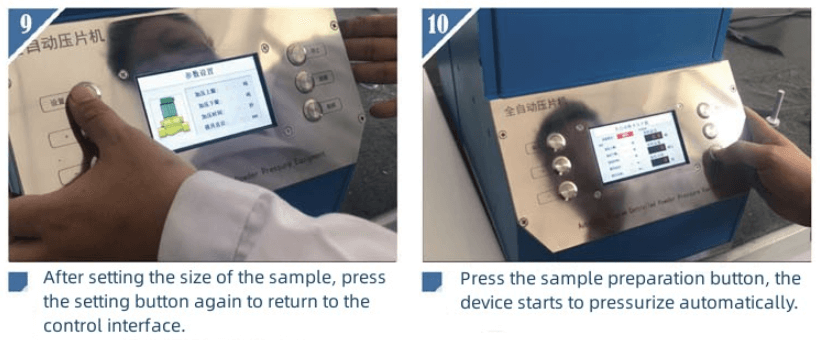

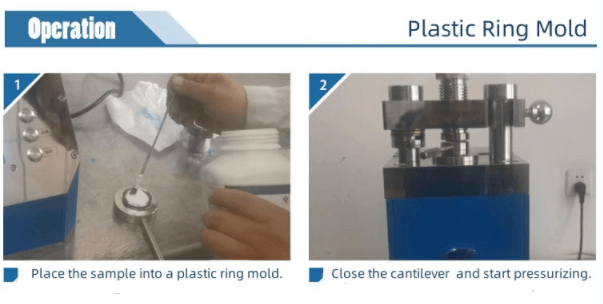

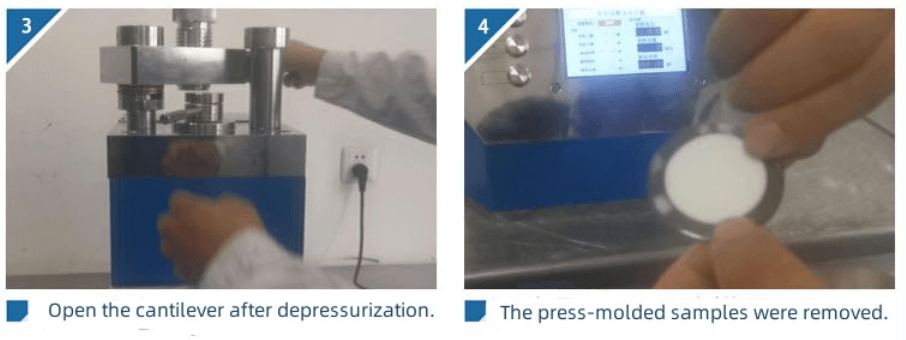

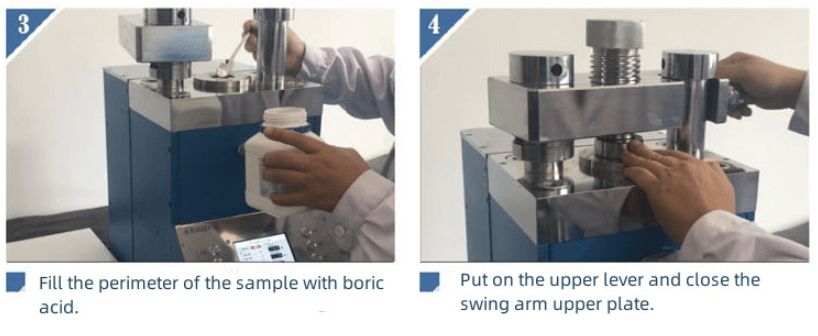

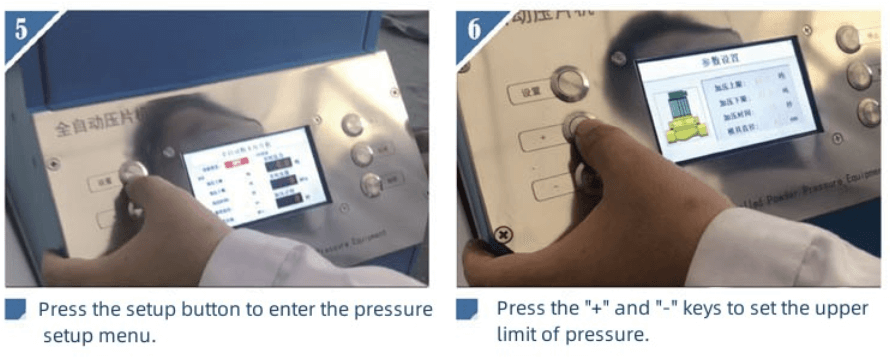

Operation

Related Tags :

Powder Pellet Press Fluorescent Powder Pellet Press Automatic Powder Pellet Press
