 Vacuum Tube Furnace

Laboratory 1700C High Temperature Vacuum Split Tube Furnace with Flanges & Optional Quartz Tube 60 or 80mm

  • Model Number:

    TMAX-KTL1700
  • Dimension(L*W*H):

    650x450x670mm
  • Compliance:

    CE Certified
  • Warranty:

    One years limited warranty with lifetime technical support
  • Shipping Port:

    Xiamen
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

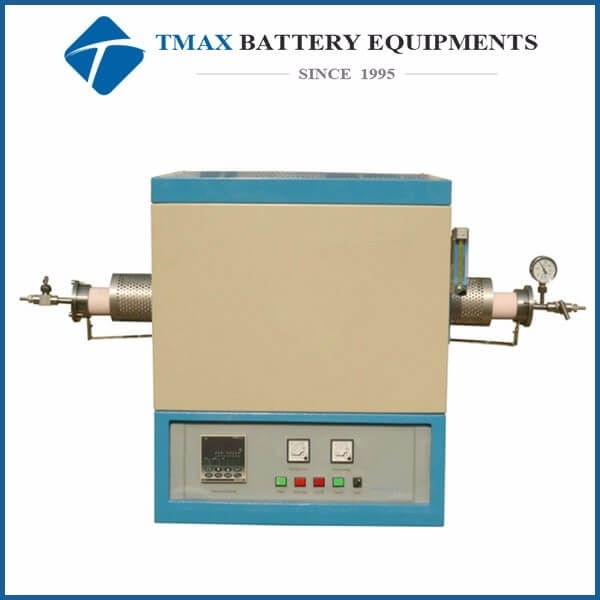

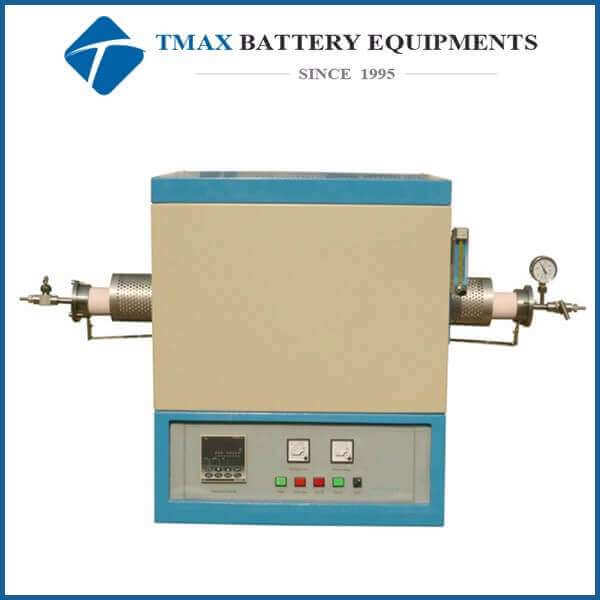

1700°C High Temperature Split Tube Furnace with Vacuum Flanges & Optional Quartz Tube 60 or 80mm


TMAX-KTL1700 is a CE certified compact and energy saving split tube furnace with a max. working temperature of 1700°C. Built-in precision temperature controller can provide up to 40 segments of heating and cooling steps with +/- 1 °C accuracy. The furnace include a working tube vacuum flange and refractory ceramic blocks based on your application needs.


SPECIFICATIONS:

Model

KTL1700-I

KTL1700-II

Power

4KW

4KW

Tube Size

60mm O.D x 800mm L

80mm O.D x 1000mm L

Product Dimensions (mm)

650x450x670

650x450x670

Heating Zone length

260 mm heating zone

260 mm heating zone

Voltage

AC 220 Single Phase, 50/60 Hz

Temperature range

100~1600° C (Continuous); 1700 C (<1 hour)

Max. Heating Rate

<= 20° C /min

Temperature Controllers

1.      Digital controllers with 40 programmable segmentsfor precise control of heating rate, cooling rate and dwell time.

2.      Built in PID Auto-Tune function with overheating & broken thermocouple protection.

3.      Over temperature protection and alarm allows for operation without attendant(s).

4.      +/- 1 ºC temperature accuracy.

5.      Two K-type thermocouples (one for each zone).

6.      RS485 Communications Port.

Thermal Couples

K type

Temperature Accuracy

+/- 1° C

Heating Element

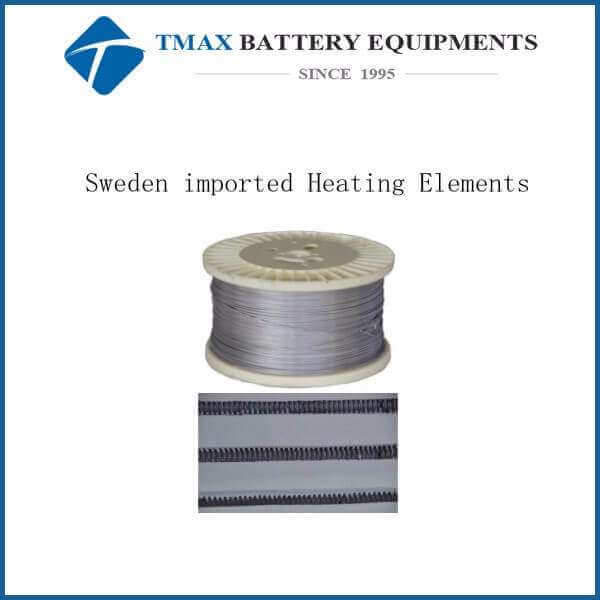

Fe-Cr-Al Alloy doped by Mo

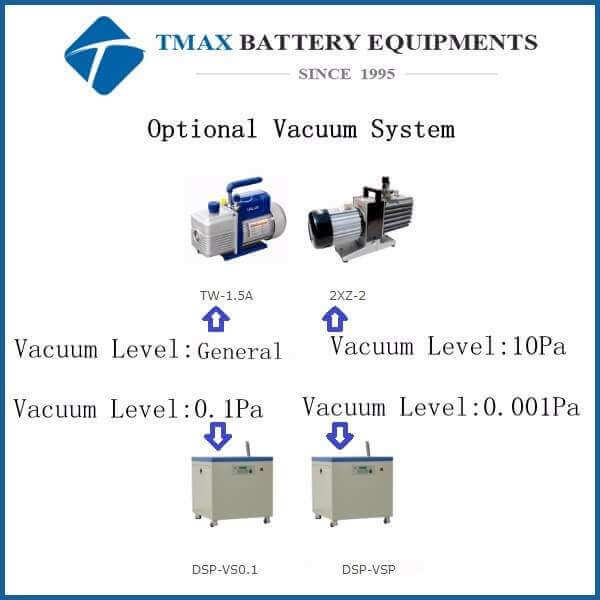

Vacuum Flange & Fitting Ports

1.      One pair of SS 304 vacuum flange with double high-temperature silicone O-rings are Included

2.       One Vacuum pressure gauge is installed, one digital vacuum gauge is available upon request at extra cost

3.       The flange set has two 1/4'' Bard fittings, two needle valve, one set of KF25 quick clamp, one blank flange fitting, 1/4'' tube feedthrough port (for 1/4" O.D thermocouple insert) and a KF25 vacuum port.

4.       Vacuum level can reach 10^-2 torr by quality mechanical vacuum pump and 10^-5 torr by molecular pump

Application Notes

1.      Tube furnaces with quartz tubes are designed for using under vacuum and low pressure < 0.2 bars / 3 psi / 0.02 MPa.Vacuum pressure may only be safely used up to 1000°C. The flow rate for gasses should be limited to < 200 SCCM (or 200 ml/min) for reducing thermal shocks to the tube.

2.      Attention: A two-stage pressure regulator must be installed on a gas cylinder to limit the pressure to below 3 PSI for safe operation.

Warranty

One year limited warranty with lifetime support.

Compliance

CE
