Prismatic Cell

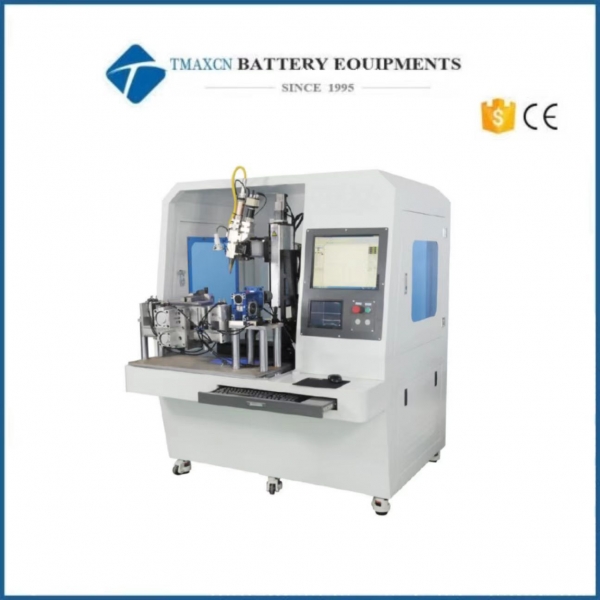

Laboratory Battery Laser Welding Machine For soft connector welding&filling hole sealing

  • Model Number:

    TMAX-HJ-6000
  • Compliance:

    CE Certified
  • Warranty:

    One years limited warranty with lifetime technical support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days

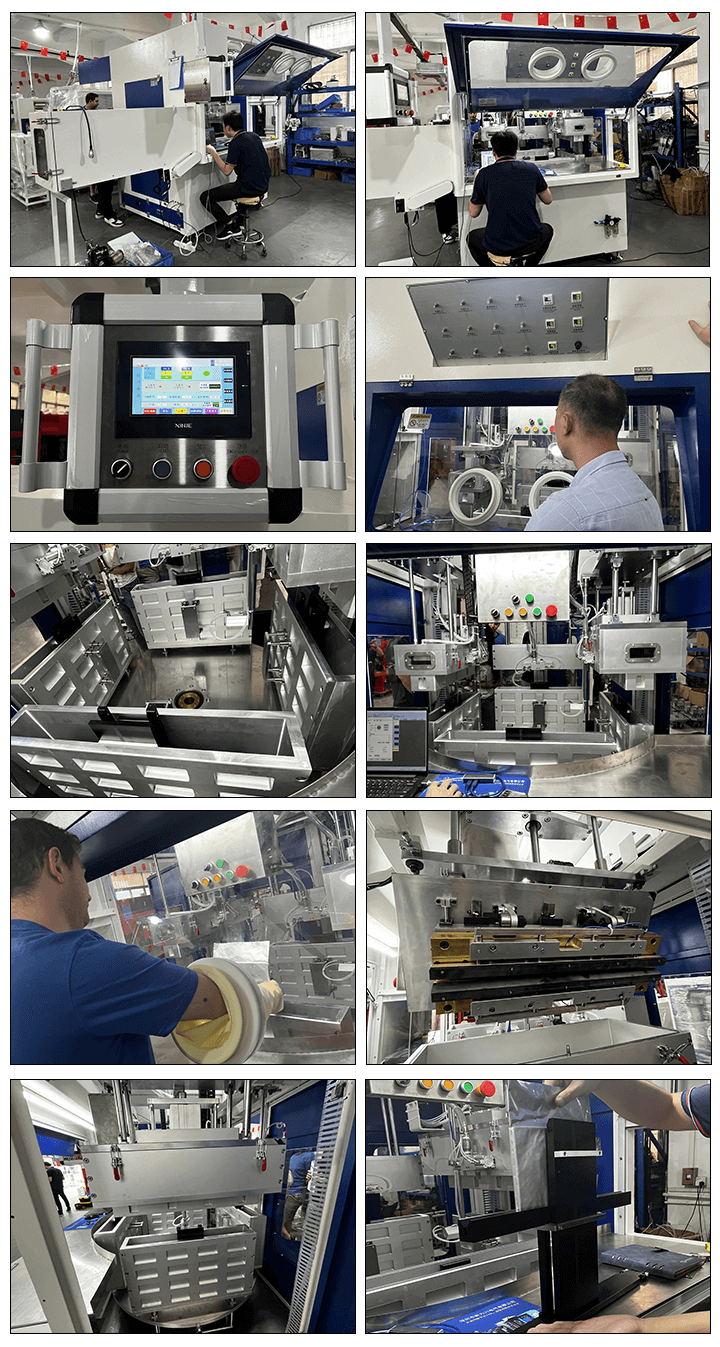

Product Details

Laboratory Battery Laser Welding Machine For soft connector welding&filling hole sealing


1Equipment Overview

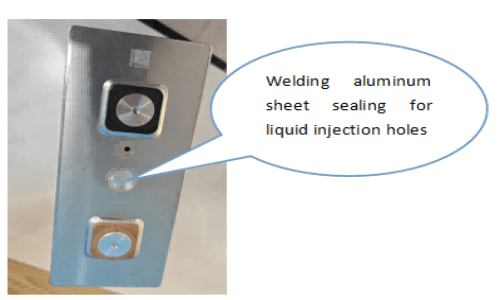

A specialized model designed and developed for the welding of lithium-ion batteries (communication power batteries, energy storage, etc.). With proper clamps, this series of systems can complete the laser welding of aluminum sheets for the liquid injection holes of the prismatic cell case cover and the positive and negative electrode welding of the collector plates of the cover plate.

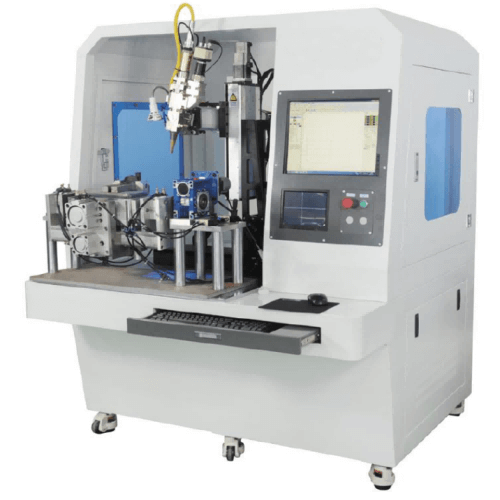

1. Equipment Outline Drawing (for reference)

2. Workflow:

Manual feeding → Cylinder compression → Press the start button and wait for welding → After welding is completed, the cylinder is released → Manual material collection, cycle operation.



2、 Technical parameters

No

Item

Parameters

1

Center wavelength

1077~1085nm

2

Full height half width spectral width

<3nm

3

Rated maximum output power

6000W

4

Power regulation range

10~100%

5

Power stability (>24 hours)

<0.4%

6

Beam quality

<1.2

7

input voltage

380VAC

8

Maximum power consumption

8.5KW

9

Maximum modulation frequency Max

50KHz

10

Waveform rise/fall time

5us

11

Cooling method

Water cooling

12

Output cable length

15m

13

Laser output head

QBH

14

Working environment temperature

5~40℃

15

Cooling water temperature

18~28℃

16

Storage temperature

-20~60℃

3、 Process performance

1. Real time processing feedback control performance and waveform control function, achieving ideal welding conditions;

2. The combination design of the galvanometer scanning head enables spot welding and seam welding within the processing range;

3. The gradual in and out function completes the overlap at the beginning and end of the seam welding;

4. The setting of input and output terminals (signals) makes automation easier;

5. Standardized workbench design, simple and flexible debugging of welding fixtures;

6. Strong compatibility of battery models, equipped with universal welding fixtures;

7. PC control operation is convenient, with trajectory teaching function, and easy to use;

8. Equipped with three axes as standard, it can be expanded to four axis linkage to achieve any three-dimensional welding in space;

9. Touch screen human-machine dialogue interface, user-friendly operation, simple and intuitive.

4Main component brands

No

Name

Brand

Main function

Qty/Unit

1

Laser source

6000W fiber laser host connected

Electro-optical energy conversion core

1 set

2

Energy transmission system

Mitsubishi 5m optical fiber

Energy transfer

1 set

3

Welding head

Jiaqiang QBH welding head

Energy release and control of weld spot size

1 set

4

Red light indication system

Self-produced

Indication programming

1 set

5

Welding detection system

Self-produced

CCD real-time detection of welding effect

1 set

6

Energy detection system

Self-produced

Detect energy fluctuations

1 set

7

Cooling system

Boding 3P dual temperature and dual control chiller

Cooling cycle

1 set

8

Workbench

Standard four axis workbench

Motion control

1 set
