Vacuum Filling and Degassing Machine

Laboratory Vacuum Filling and Degassing Machine for Battery Electrolyte Injection and Degas

  • Model Number:

    TMAX-ZY65
  • Compliance:

    CE Certified
  • Warranty:

    Two Year Limited Warranty With Lifetime Support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

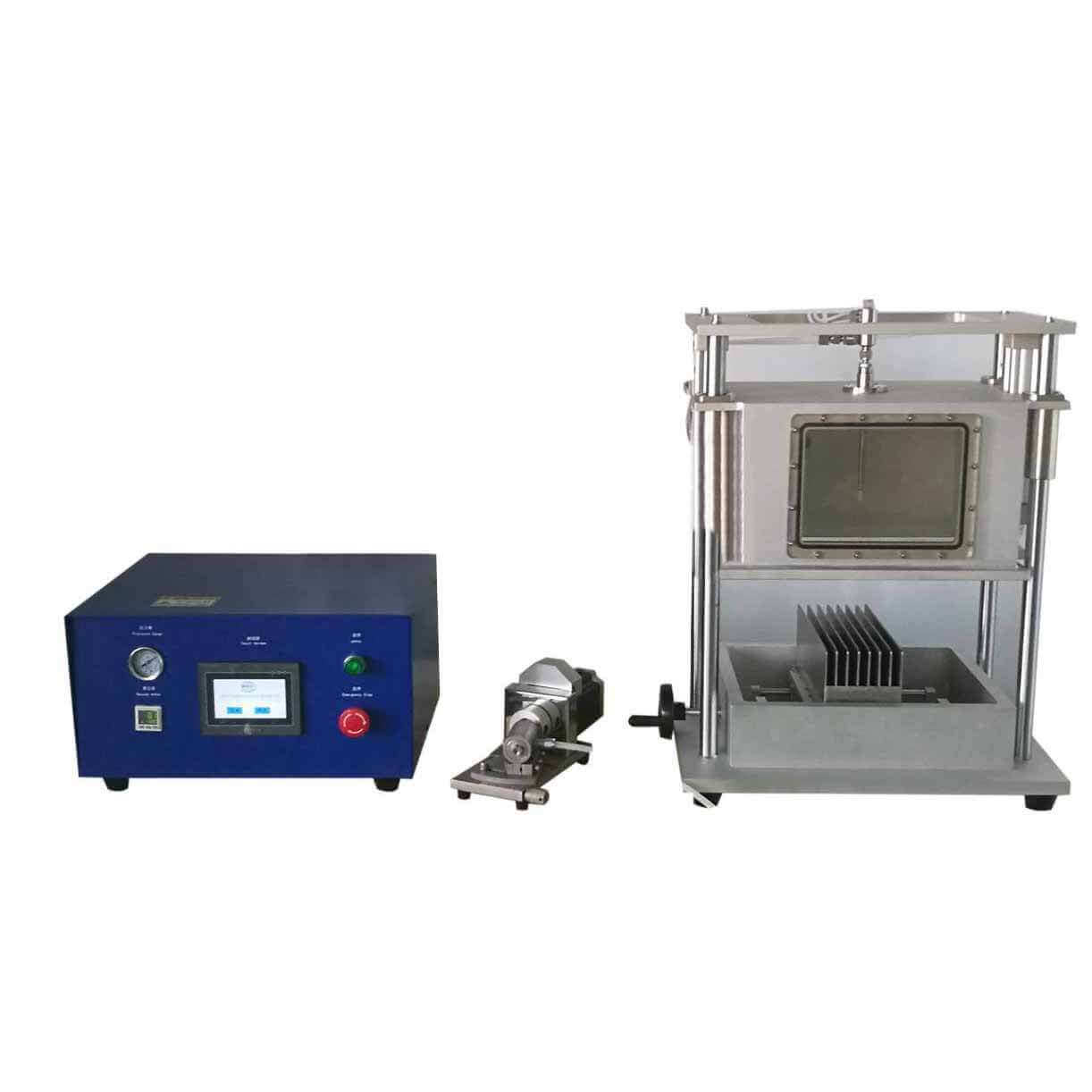

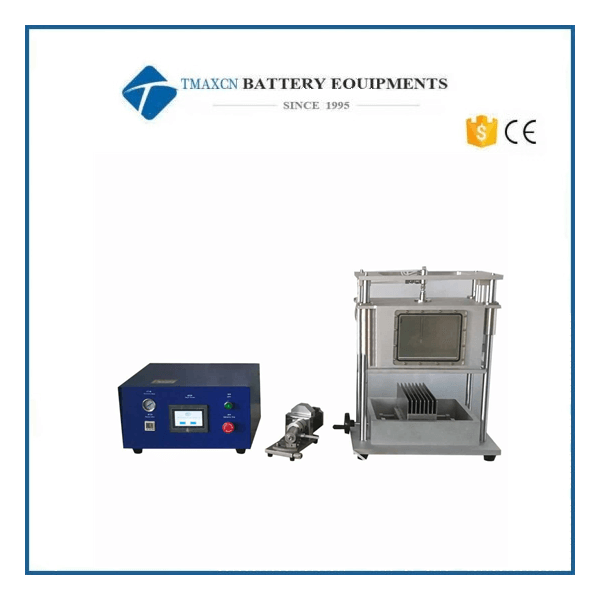

Laboratory Vacuum Filling and Degassing Machine for Battery Electrolyte Injection and Degas


It is suitable for the liquid injection and degassing procedures of battery capacitors. It adopts vacuum and then injects liquid and then degas still. The accuracy of the electrolyte, the consistency of absorption, and the high reliability are adopted.

*One machine includes liquid injection and degassing functions;

* Has extremely high measurement accuracy and repeat consistency;

* Vacuum first and then liquid injection, multi-station efficiency, accurate accuracy, convenient and reliable operation;

*High injection accuracy;

*The entrance and exit are connected by chemically resistant hoses;

*Can be operated in a glove box or a drying room;

*Exquisite and beautiful appearance, stable performance;

*PLC, touch screen operation, flexible parameters, high automation program;

*Put the product into the vacuum chamber;

*Press the start switch, press down on the transparent sealed upper cavity, so that the battery is in a sealed vacuum cavity;

* Vacuum, after reaching the vacuum degree and the set time, the liquid will be injected automatically. After the filling of one product, the hand-operated worktable will switch to another product to inject the liquid, multi-function analogy.

*Then the system will automatically degas still;

*After degassing still, take out the product to complete.

Remarks: The vacuuming time and degassing time can be set according to the situation.

*Compressed air: After drying, filtering and stabilizing: the outlet pressure is greater than 4.0kg/cm2; if it is placed in the glove box, the compressed gas used is the same as that in the glove box;

*Degassing, low and high vacuum and time can be adjusted, and each time can be set to a maximum of 9999min.

Battery application range

for cylindrical cells.

Capacity range

0.2ml~infinite, adjusted according to the injection pump.

Battery injection volume

0.2g~infinite, adjusted according to the injection pump.

Injection accuracy

±1%

Output speed

6ml/s adjustable

Inlet and outlet pipe

Φ6 pipe

Adjustable stroke

X axis maximum stroke 0~90mm (centering)

Key parts

Made of stainless steel 304, 316 corrosion-resistant materials

Straight cavity

It is welded with aluminum, and the corrosion-resistant structure is stable

Dimensions

L510mm×W400mm×H650mm

Configuration power supply

AC220V/50Hz/0.5KW

Weight

90kg
