pouch Battery Tester

Lithium Battery Forced Short Circuit Test Machine

  • Model Number:

    TMAX-FSCT
  • Dimension(L*W*H):

    1070x1010x1740mm
  • Net Weight:

    240kg
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

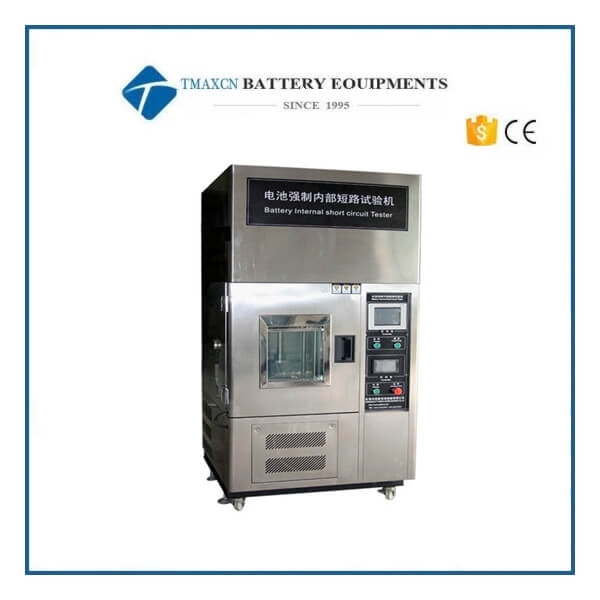

Lithium Battery Forced Short Circuit Test Machine

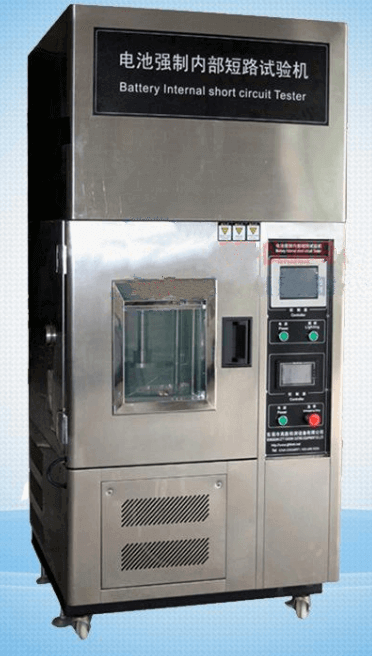

Battery forced internal short circuit tester is a simulated battery under  certain ambient temperature conditions for forced internal short circuit test, the test box for the stainless steel, the temperature uniformity, with exhaust function (that is, after the completion of the test exhaust emissions). Test  machine control system for the PLC touch screen menu type operation, collecting data frequency up to 100 times / sec, while programming through the PLC set test pressure , pressure holding time, measured pressure, battery voltage, battery temperature, pressure drop speed.


Specification

Model

TMAX-FSCT

Temperature Range

0℃ ~ +100℃(Controllable)

Resolution

0.01℃

Temperature Fluctuation

± 0.5℃

Temperature Uniformity

± 2.0℃

Max. Low Temperature

-5℃

Temperature Rising Rate

Ave.3℃/min(0℃ to 100℃,Nonlinear No-load)

Temperature Cooling Rate

Ave.1℃/min(100℃to 0℃,Nonlinear No-load)

Inner Chamber Dimension

400*500*500mm(W*D*H)

Safety device

First over temperature alarm, MCCB overload protection, etc.

Resolution

1/10000

Force Accuracy

≤0.5%

Displacement Resolution

1/1000

Displacement Accuracy

≤0.5%

Speed Range

0.01-20MM/S

Effective Range

0 ~ 150mm

Inner Chamber Material

Mirror stainless steel with bottom reinforcement

Outer Chamber Material

Stainless steel matte line treatment;

Insulation material: rigid polyurethane foam + high efficiency compressed glass wool;

Heater

Finned heat pipe shaped stainless steel electric heater;

Air supply circulation system: convection air supply circulation system;

Protection device

No fuse switch, over temperature protection switch, fuse, front open tempered glass observation window, installed explosion-proof lock;


Standards

IEC62133-2012   JISC8714-2007  GB 31241-2014  GB/T 18287 -2013  GB/T 8897.6-2008

GB/T 21966-2008   MT/T 1051-2007   YD 1268-2003




                   circuit tester

Cylindrical Cell Preparation

Pouch Cell Machine

 Coin Cell machine

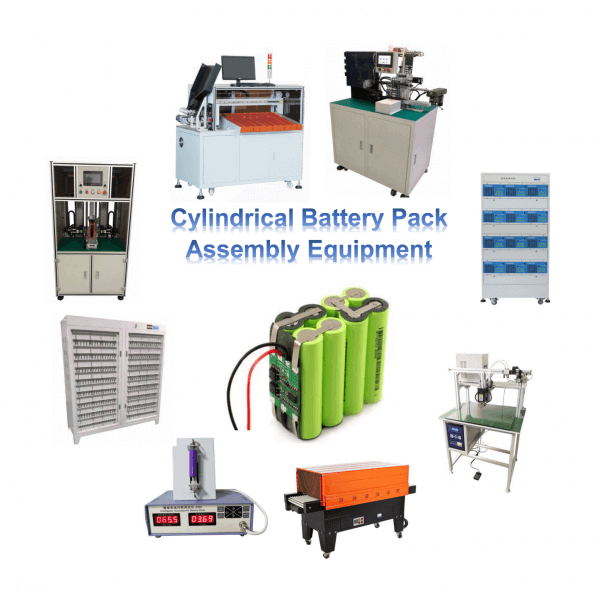

Battery Pack Assembly Line
