products
Lithium Polymer
Lithium Polymer Battery Assembly Line
Model Number:
TMAX-BAP-HCompliance:
CE CertifiedWarranty:
Two years limited warranty with lifetime technical supportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Versatile Roll-to-Roll Pilot Coating System with Optional Doctor Blade, Reverse Comma, Tape Cast, Slot Die, Micro Gravure Coating HeadsNext:
Automatic Electrolyte Filling Machine
Product Details

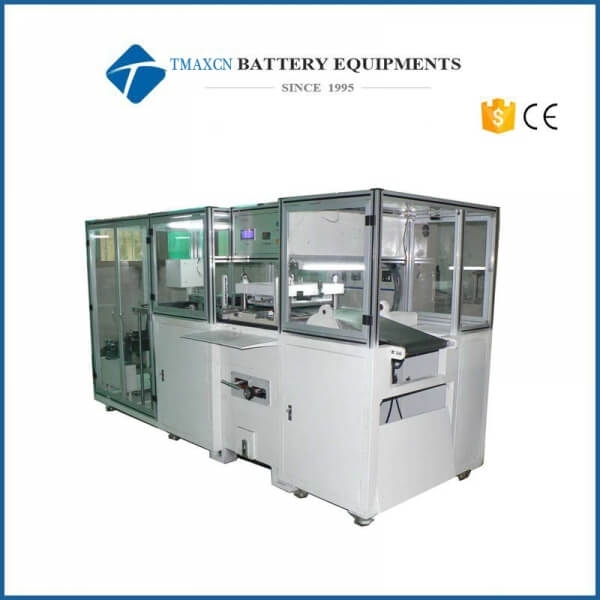

Lithium Polymer Battery Assembly Line
Product Description
| Main technical parameters |
Performance |
| Battery length |
55-140mm (±0.2mm) |
| Battery width |
30-70mm |
| Total battery length |
60-155mm |
| Battery thickness |
2-10mm |
| Aluminum-plastic composite film diameter |
φ450mm |
| Aluminum-plastic composite film thickness |
0.11-0.2mm |
| Gas-liquid pressurized cylinder |
10T |
| Punching servo |
15KW |
| Source voltage |
AC220V 9KW |
| Capacity |
4-14pcs/min |
| Air supply |
0.5-0.7Mpa 20L/S |
| Size (L*W*H) |
3600*3200*2000mm |
