Micrometer Film Applicator

Micrometer Adjustable Film Applicator - 150 mm Width

  • Model Number:

    EQ-Se-KTQ-150
  • Dimension(L*W*H):

    150 mm standard width
  • Net Weight:

    1kg
  • Compliance:

    CE Certified
  • Warranty:

    1 years limited warranty with lifetime technical s
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    7 day
  • contact now
Product Details

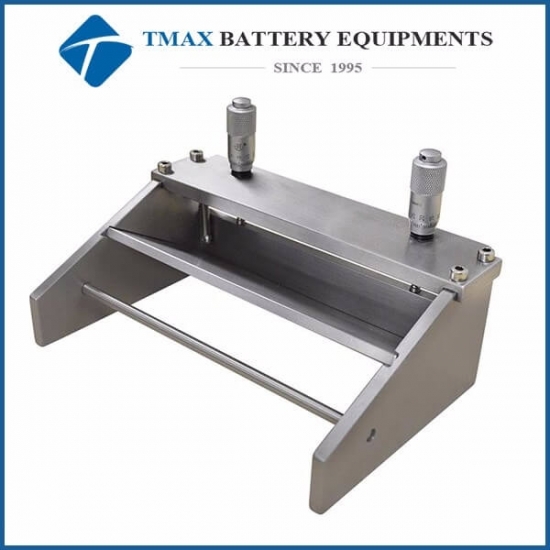

High Quality Micrometer Adjustable Film Applicator - 150 mm Width (film casting doctor blade) EQ-Se-KTQ-150

1. Adjustable Film Applicator - This unique wet film applicator features micrometer heads for knife blade adjustment.
2. The operator sets the blade clearance by adjusting the micrometers. This is excellent tool to make quality film for material research laboratories to make ceramic tape casting, battery electrodes, and various coating at lower cost. Stainless steel knife blade with precision ground edge.

SPECIFICATIONS:

Features

1.      150 mm standard width.

2.      Built in slurry guiding plate to make coating material evenly distributed ahead blade.

3.      Make wet film thickness between 10 - 5000 microns.

4.      Micrometer head's controllable accuracy is 10 microns.

5.      Slurry Capacity: 60 ml.

Compliance

CE Certified

Warranty

One years limited warranty with lifetime technical support

Net Weight

1kg

Detailed Images

                    Film casting doctor blade

Our Certifications



Cooperative Brand



Hot Sale Products

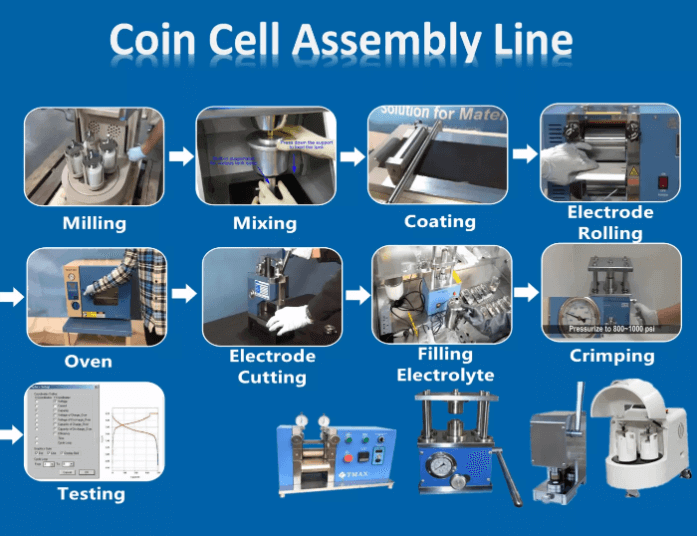

1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


Film casting doctor blade

Packing & Delivery


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
