Film Applicator

Micrometer Adjustable Film Applicator - 50 mm

  • Model Number:

    EQ-Se-KTQ-50
  • Dimension(L*W*H):

    50 mm standard width
  • Net Weight:

    1kg
  • Compliance:

    CE Certified
  • Warranty:

    1 years limited warranty with lifetime technical s
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    7 day
  • contact now
Product Details

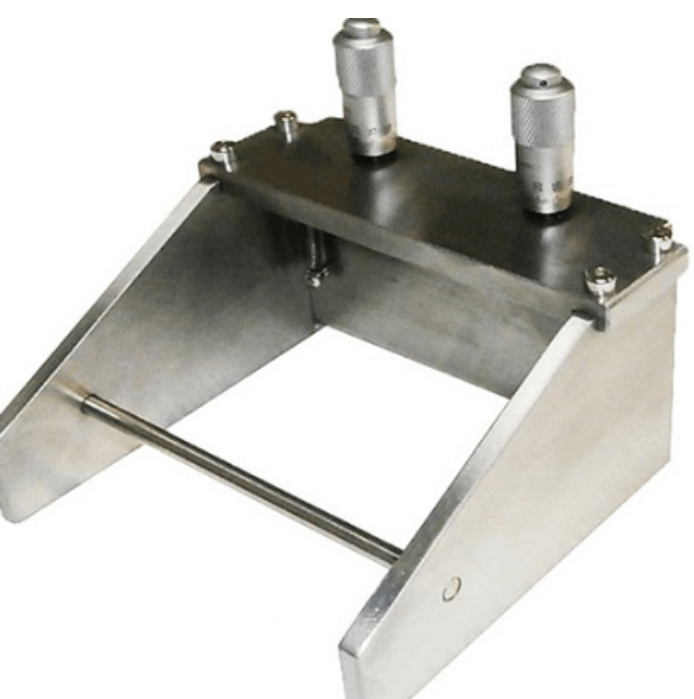

High Quality Micrometer Adjustable Film Applicator - 50 mm (Film Casting Knife) - EQ-Se-KTQ-50

Adjustable Film Applicator - This unique wet film applicator features micrometer heads for knife blade adjustment.
The operator sets the blade clearance by adjusting the micrometers. This is excellent tool to make quality film for material research laboratories to make ceramic tape casting, battery electrodes, and various coating at lower cost. Stainless steel knife blade with precision ground edge.

SPECIFICATIONS:

Features

1. 50 mm standard width
2. Make wet film thickness between 0 - 6000 microns
3. Micrometer head's controllable accuracy is 10 microns
4. Made of SS304 stainless steel

Compliance

CE Certified

Warranty

One years limited warranty with lifetime technical support

Net Weight

1kg

Detailed Images

                    Film casting doctor blade

Our Certifications



Cooperative Brand



Hot Sale Products


1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


Lithium Battery film applicator

Packing & Delivery


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
