Supercapacitor Assembly Machine Line, 60138 Cylinder supercapacitor production line

Rotary Pressure Sealing Machine

  • Model Number:

    TMAX-RSS
  • Compliance:

    CE Certified
  • Warranty:

    One years limited warranty with lifetime technical
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

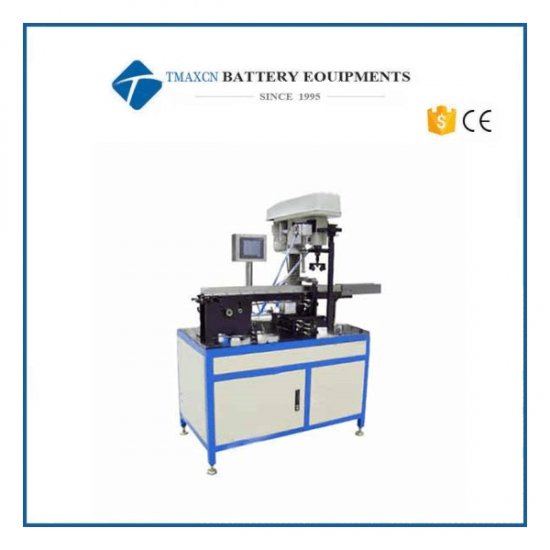

Rotary Pressure Sealing Machine

Functional overview

The machine is suitable for cylindrical battery, supercapacitor seal. The machine uses a touch screen, PLC communication control,through the implementation of pneumatic components feeding, the more bits, the seal, the material discharing etc.

Available sizes according to customer.


Technical parameters

For case diameter

φ20 to 120mm(customer specified)

For case height

50 ~ 250mm (customer specified)

Production capacity

 about 10 pcs/ min

Gas source

 0.4 ~ 0.7MPa

Operating voltage

Three-phase 380V / 50HZ

Total power

2KW

Dimensions (L * W * H)

1300 * 550 * 1350mm
