Supercapacitor Assembly Machine Line, 60138 Cylinder supercapacitor production line

Supercapacitor Case Channeling Machine

  • Model Number:

    TMAX-GC60-L
  • Compliance:

    CE Certified
  • Warranty:

    One years limited warranty with lifetime technical
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

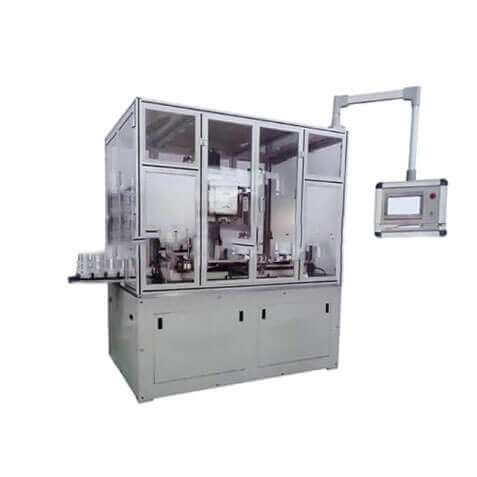

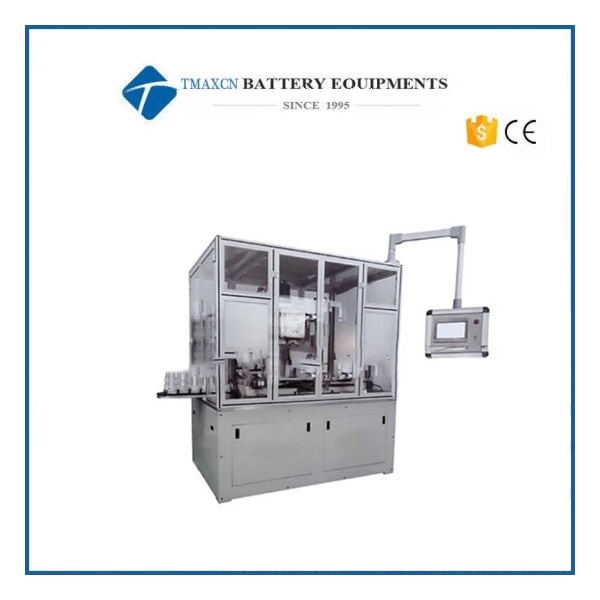

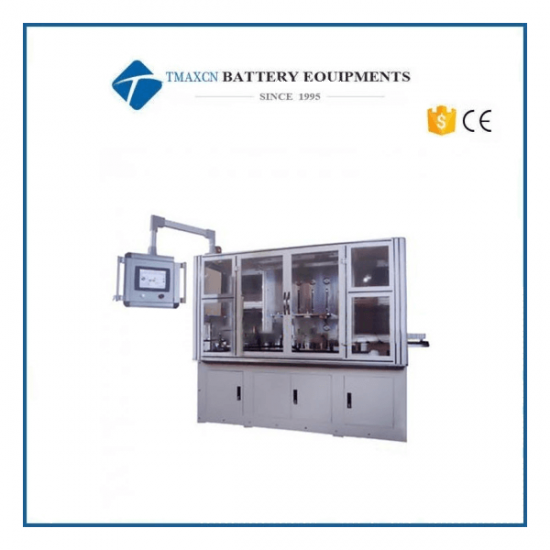

Supercapacitor Case Channeling Machine


Functional overview

The device is suitable for the channeling operation of cylindrical supercapacitor case.

Functional characteristics

1.Receiving or discharging product adopts ring guide rail, workstation conveying materials adopts servo ball screw.

2.Channeling and clamping device adopts cam mechanism, with stable Channeling depth and height, and high

 controllable precision.

3.Channeling depth and height are adjustable, and the adjusted numerical value can be observed on human-computer interface duly.

4.Equipped with the imported two-dimension bar code scanner. Data can be stored and derived,

for the convenience of quality control and traceability on product.

5.Equipped with security guard shield and safety light grid, with safe and reliable device operation.

6.Adopt the imported PLC. Touch screen displays operation, conveniently and quickly.

7.Case adopts dust-proof glass cover. The device is top-grade and dust-proof.


Technical parameters

Channeling Accuracy (W)

±0.05mm

Channeling Accuracy (L)

±0.05mm

Channeling Adjustment range

0~100mm

Mould adjusting precision

≤0.01mm

Power source

AC220W50Hz

Power

2.5kw

Air source

0.4~0.7MPa  5L/min

Overall dimensions (L*W* H)

1500 x 1000 x1650mm

Weight

750kg
