Microwave Sintering Furnace

High Temperature Up To 1600C Microwave Sintering Furnace For Lab Research

  • Model Number:

    TMAX-HAMiLab-M1500
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    30 day
  • contact now
Product Details

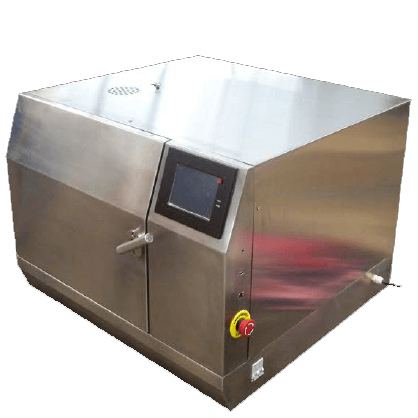

High Temperature Up To 1600C Microwave Sintering Furnace For Lab Research


1. Microwave heating.

2. Temperature up to 1600 degree.

3. Heating speed up to 50 degree per minute.

4. No pollution to material.



Description

HAMiLab-M1500 is our 3rd generation high temperature microwave laboratory system. HAMiLab-M1500 is a sophisticated upgrade to traditional muffle furnaces, with the high level of accuracy, control, and speed that are customary in Synotherm systems. Drying, binder burn-out, synthesis and sintering of powder and solid materials, metals, and glass can be completed in this system in a 3-4 hour period. HAMiLab-M1500 was designed to increase the productivity of solid state laboratories from one set of samples to 3-4 sets of samples per day, without having to continuously run the system during periods of inactivity.



Application field:

- Claiming / synthesis of powder or particle materials:

- Electronic ceramic powders: barium titanate, barium-strontium titanate, strontium titanate, barium zirconate titanate;

- Lithium ion battery anode materials: lithium cobaltoxide, lithium manganate;

- Various colorants, glaze material, inorganic pastel;

- Alumina, magnesium oxide, zinc oxide, manganese dioxide, manganous-manganicoxide, zirconia, ammonium metavanadate, vanadium pentoxide, titanium dioxide, zinc carbonate, manganese carbonate, aluminum hydroxide, magnesium hydroxide, lithium cobaltoxide, zinc ferrite, Tri-chromatic rare earth fluorescent powder (Red), cement.



Synthesis / sintering of devices:

- Electronic ceramics: Piezoresistive element, thermistor, piezoceramics, microwave medium ceramics;

- Magnetic materials: hard magnetic, Ni-Zn, gyromagnet ferrites;

- Honeycomb ceramics, daily-use ceramics and glass ware;

- Oxide ceramics and refractory materials: alumina, zirconia, magnesium oxide and other oxide composites;

- Incineration, cremation, scaling loss experiments

Technical specification

Model

Tmax-HAMiLab-M1500

Voltage

AC 220 plus/minus 10V; 50Hz/60Hz,

Rating power

4.0KW

Microwave output power

0.2-1.40KW continuously variable

Microwave frequency

2.45GHz plus/minus 25MHz

Max. sintering temperature

1600 Celsius degree

Temperature measuring way

IR thermometer

Temperature range

250 Celsius degree -1650celsius degree.

Temperature accuracy

plus/minus 0.5%

Atmosphere system

air

Max loading space

100x100x40mm (LxWxH)

Cooling

Water, 0.8 - 1m3/h at pressure > 0.15MPa

Cycle cooling water total hardness

less than 60mg/L

Protection and Safety

Anode over voltage, anode over current, anode power surpass, electromagnet watchdog, magnetron temperature, external interlock.

Control System

PLC (18 sections of temperature control), embedded system connected to laptop via USB, with data storage and printing functions.

Microwave Leakage

< 1mW/cm2 (Safety standard < 5mW/cm2)

System outside dimension

750x750x660mm (LxWxH)



Microwave Sintering Furnace






1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


laboratory muffle furnace


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
