products

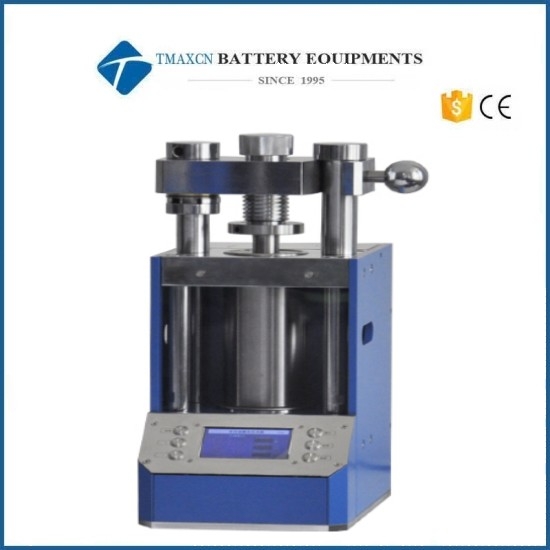

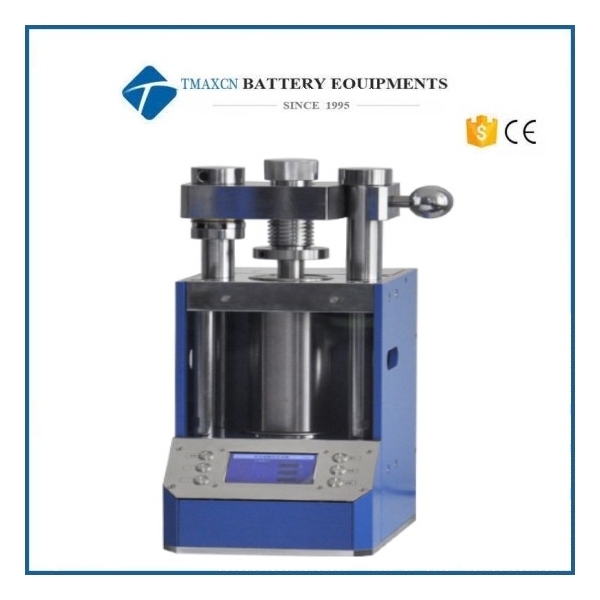

20T Automatic Isostatic Pressing Machine with 50mm Cylinder Stroke

Model Number:
TMAX-ZJYP-20T
Compliance:
CE Certified
Warranty:
One year limited standard warranty
Payment:
L/C D/A D/P T/T Western Union
Delivery Time:
5 days

WhatsApp : +86 13003860308
Email : David@tmaxcn.com
Email : Davidtmaxcn@gmail.com
Wechat : 18659217588

Product Details

Pressure20T Automatic Isostatic Pressing Machine with 50mm Cylinder Stroke

Parameter

Model	ZJYP-20T
Pressure range	0-20T
Piston diameter	Chrome-plated cylinder Φ110mm(d)
Pressurization process	Program pressurization - program pressure maintenance - timed pressure relief
Compress time	0-999.59 minutes
Pressure conversion	The program automatically converts the pressure on the sample
LCD	4.3 inch LCD screen
Equipment protection	Steel protection with plexiglass door
Isostatic pressure	300MPa
Isostatic chamber	Φ30150mm(MN)
Cylinder stroke	50mm(T)
Sample preparation characteristics	The upper plate rocker structure makes the operation more convenient
Dimensions	240390560(LWH)
Device power	220V/1500W
Equipment weight	120kg
Tablet press size diagram

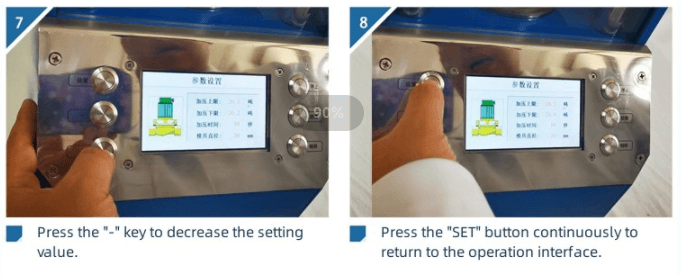

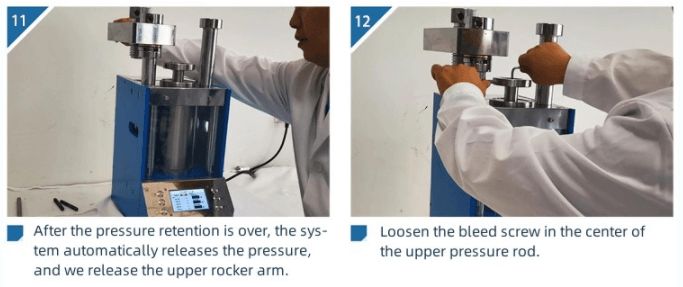

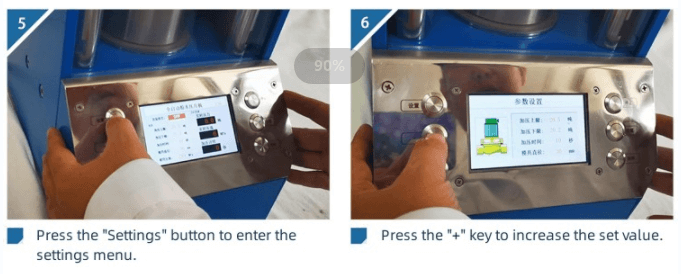

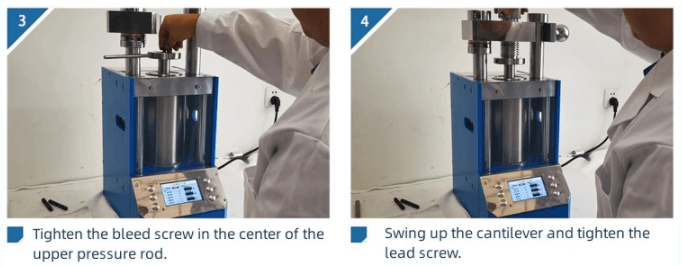

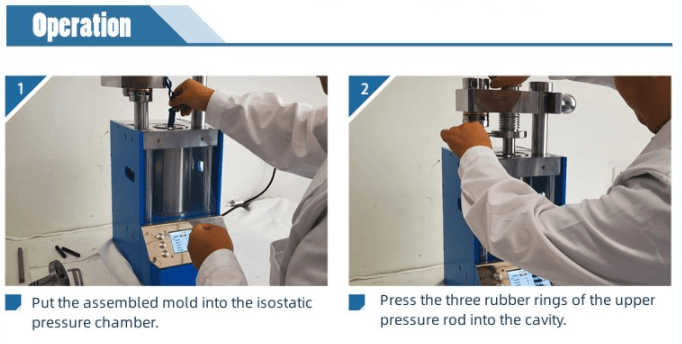

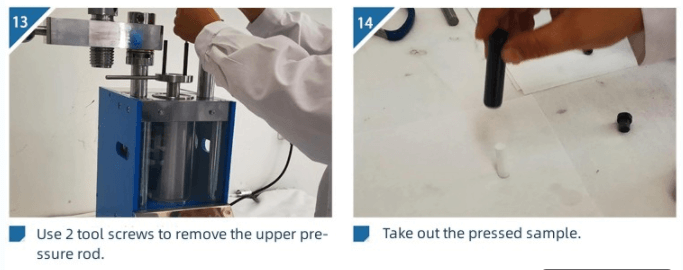

Operation
