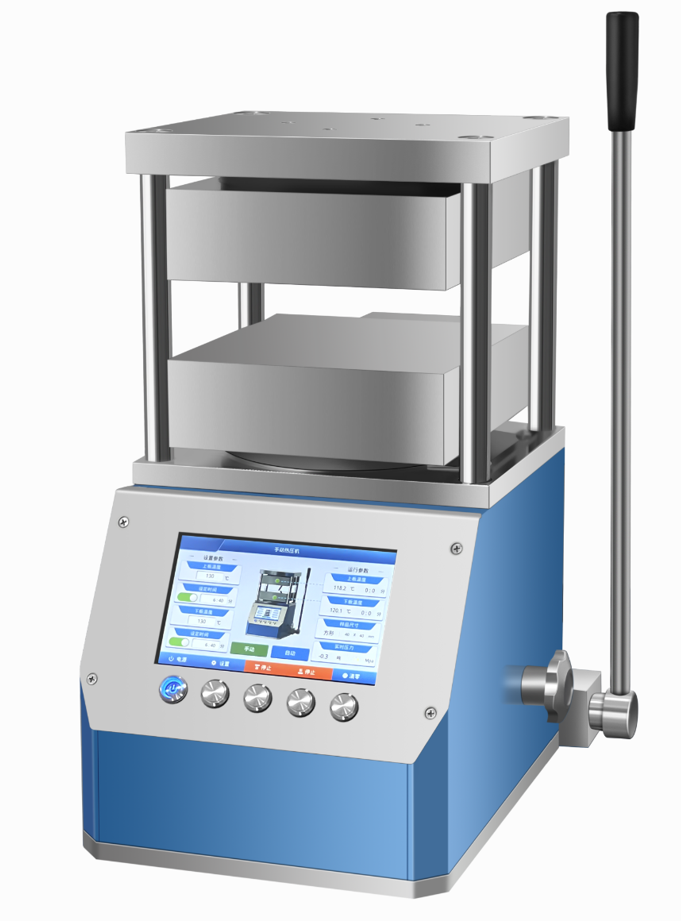

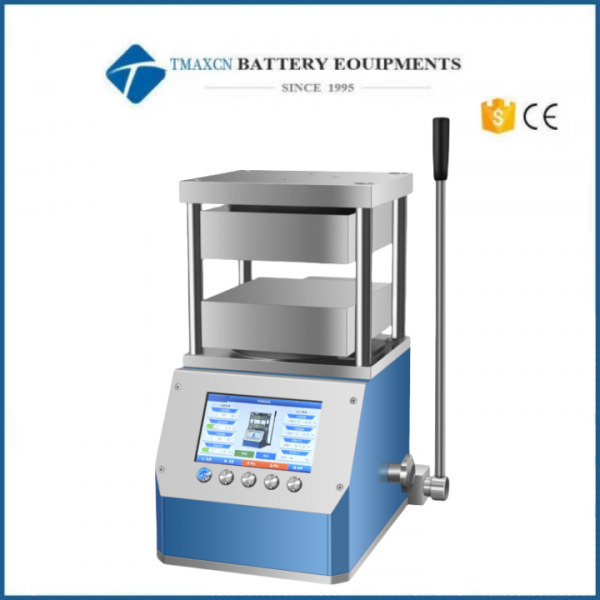

500°C 10T Manual Hydraulic Heat Press with Optional Water Cooler

Model Number:
TMAX-RYJ-600EG
Compliance:
CE Certified
Warranty:
One year limited standard warranty
Payment:
L/C D/A D/P T/T Western Union
Delivery Time:
5 days

WhatsApp : +86 13003860308
Email : David@tmaxcn.com
Email : Davidtmaxcn@gmail.com
Wechat : 18659217588

Product Details

500°C 10T Manual Hydraulic Heat Press with Optional Water Cooler

A. Parameter

Model	RYJ-600EG
Pressure range	0-10T
Pressure process	Manual pressure
Piston diameter	Chrome -plated Φ70mm
Temperature control	Room temperature -600℃
Mold heating temperature	Room temperature -500℃
The temperature control accuracy	0.1℃
Insulation method	Imported insulation board
Cooling method	Quick cooling of water cooling 【Optional Water Cooling Machines】
Mold size	180180mm 200200mm (M*N)
Overall size	280320520mm (LWH)
Power supply	220V/2500W

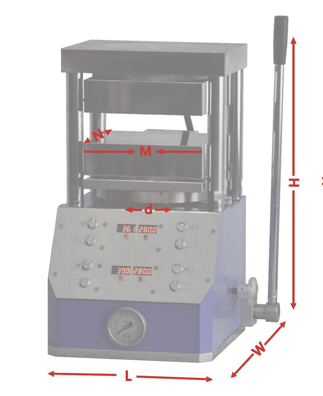

Dialogue of thermal compressor size

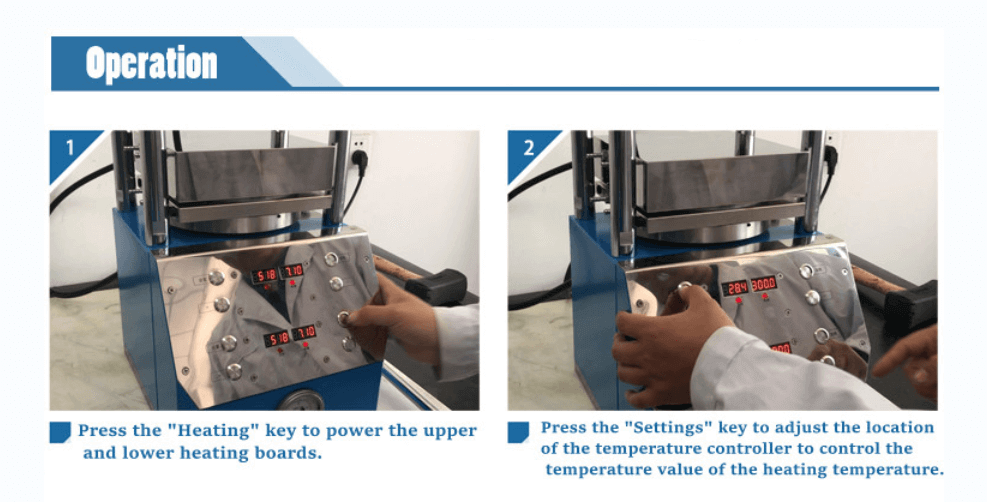

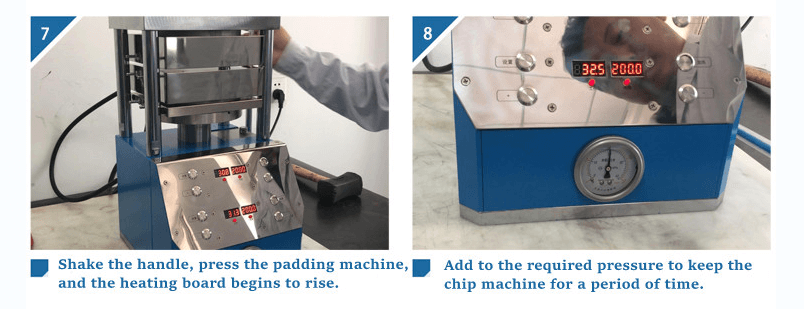

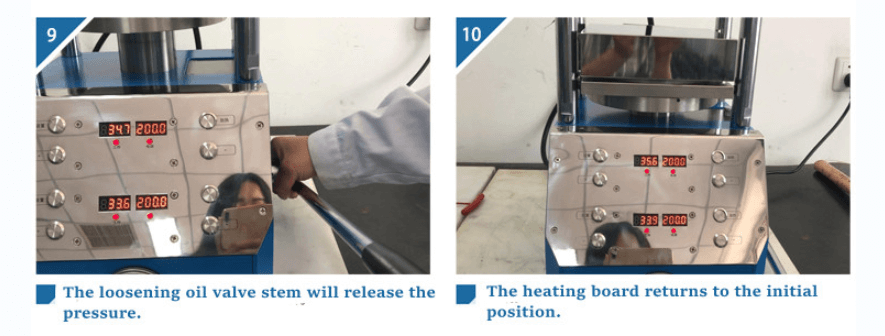

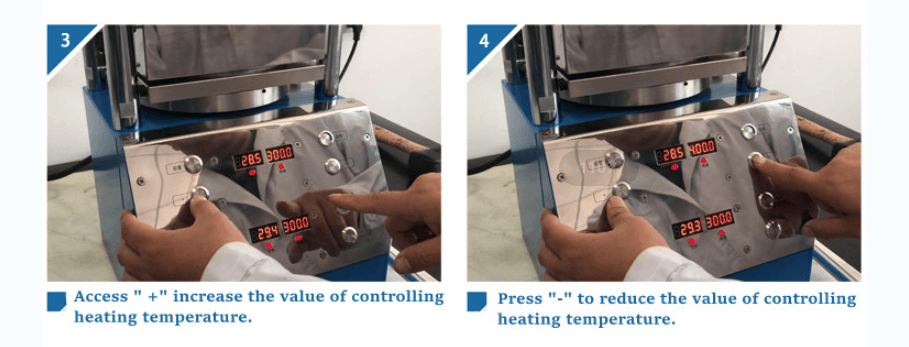

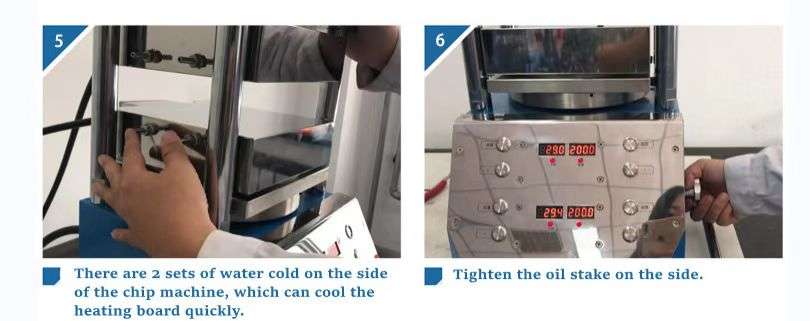

B. Operation
