Electricity requirement

110V AC or 220V AC selectable for universal use

Power Consumption

200W

Current

· Range: 6.0mA – 3000mA

· Accuracy: ±(0.05% of reading + 0.1% of range)

Voltage

· Range: 0.5 - 5V programmable

· Accuracy: ±(0.05% of reading + 0.1% of range)

Data register conditions

Time interval: 1 - 900s

Max. measurement cycles

9999 cycles

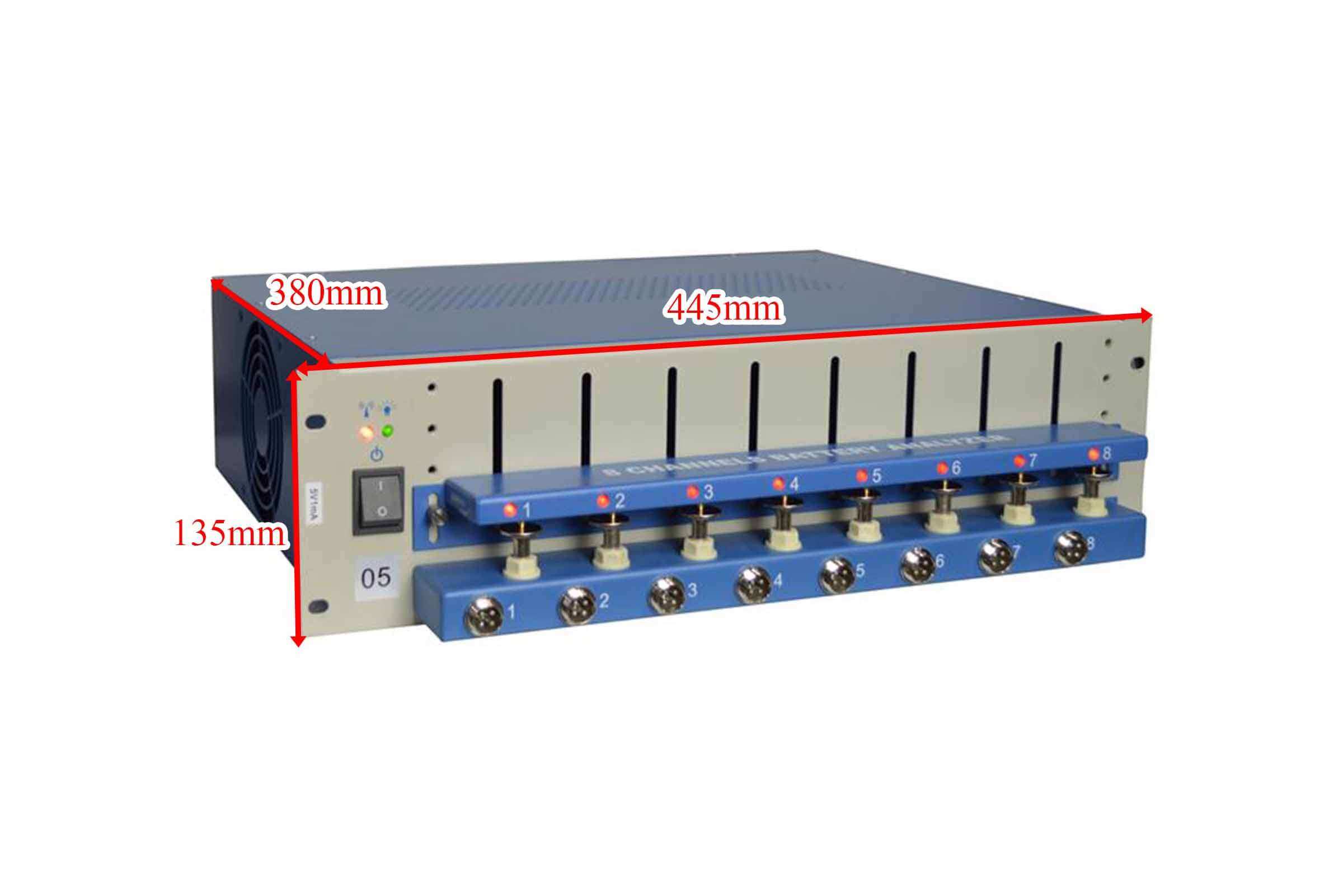

Product Dimensions

445mm(L) x 380mm(D) x 135mm(H)

Channels

· Eight independent programmable channels

· Each channel can set different working modes and functions independently

Programs & Software

· The software (TC5.3) with calibration function is included to set various working modes for measuring capacity and lifecycle for all types of rechargeable batteries

· Working modes Include constant current discharge, constant current charge, constant voltage charge, constant resistance discharge, rest, cycles, etc.

· Limited threshold conditions include voltage, current, time, capacity, negative voltage slope, etc.

· With real-time monitoring windows and integrated graph/data windows, the testing process can be observed more directly and efficiently

· During the test, the software will provide instructions and warnings for assistance

· The calibration software can be used to calibrate the analyzer

· MS Excel 2013 30 days free trial is pre-installed for you to output the Excel data file. (Note: Updated information on 5/21/2015)

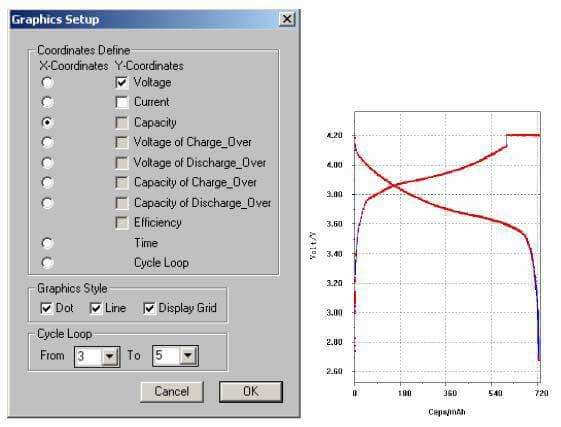

Test Reports and Curves for analysis

· Different types of curves can be created by software base on user definition. (Voltage-time curve, current-time curve, capacity-voltage curve, loops times charge/discharge capacity curve, loops times charge/ discharge efficiency curve, etc)

· Data reports are created by software. User can easily compare the performance of the batteries tested in channels both visually and statistically

Protection and Auto-recover

If the power failure occurs during testing, the system will shut down all operating channels. Once power is recovered, the system will automatically resume those stopped channels and ensure that the test is normally conducted, so that no cases will lose any data.

Battery Holders

Two types of battery holders are included in the BST8-3 standard package:

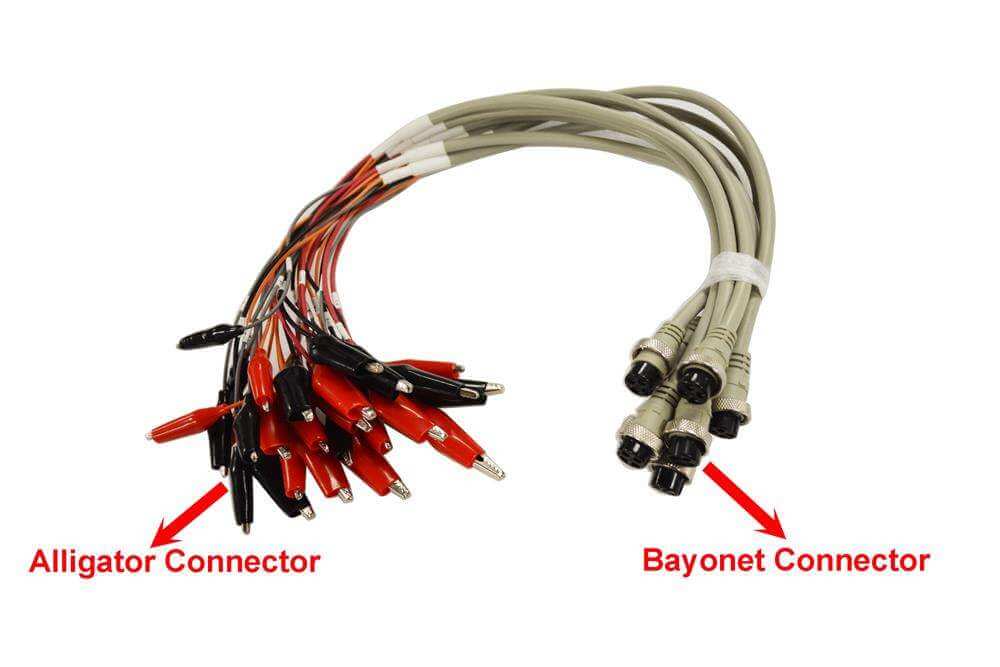

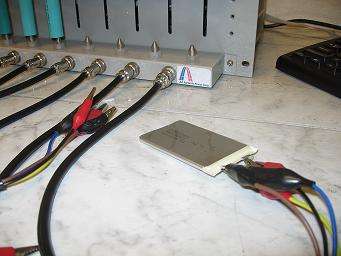

· 8 alligator clips with cable for universal connecting (please click the first picture below to enlarge)

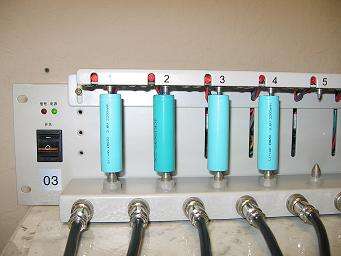

· 8 spring load holders with adjustable length for measuring cylinder battery up to 70mm(H) (please click the second picture below to enlarge)

Compliance

· CE Certified

· MET, TUV, CSA, UL certification are available upon request at extra cost

Warranty

Two Year limited warranty with lifetime support for the battery analyzer.

Application Notes

· The customer can easily combine up to 20 battery analyzers (0.002-1mA, 0.1-10mA, 6mA-3000mA) by using normal Ethernet cable connector via one computer.

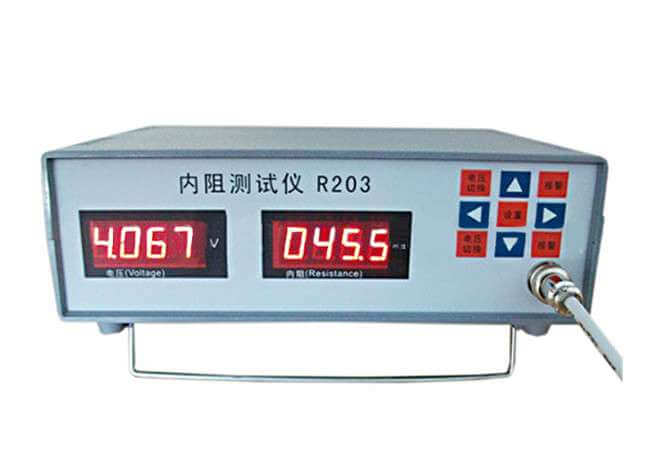

· You may order internal resistance tester to measure DC resistivity (click the second and third picture below for more information)

Net Weight

11.5 kg (26 lbs)

Shipping Weight

18 kg (40 lbs) / Analyzer only: 25lbs

Shipping Dimensions

610mm(H) x 510mm(W) x 356mm(H) (24" x 20" x 14")
