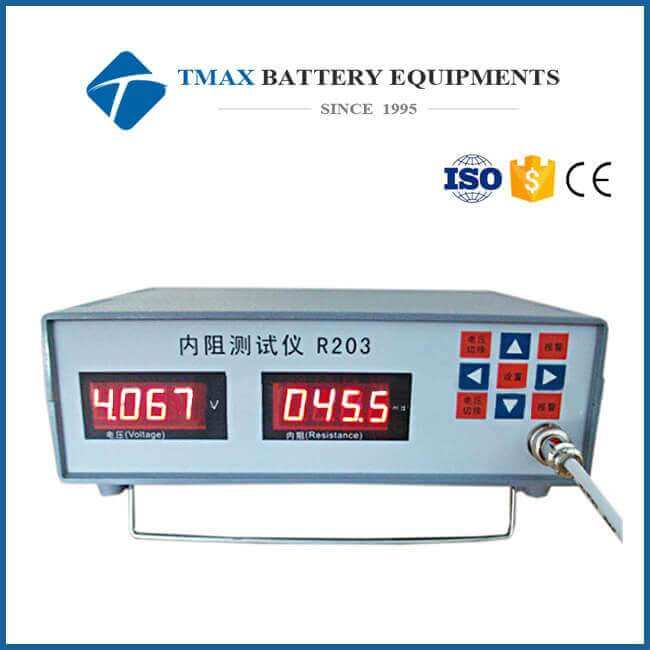

High Accuracy Battery Internal Resistance Tester For Lab R&D
Model Number:
TMAX-R-203Dimension(L*W*H):
250*190*90mmNet Weight:
2kgCompliance:
CE CertifiedWarranty:
1 Year limited warranty with lifetime supportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
High Precision Tester Instrument For Mobile PhoneNext:
512 channel polymer capacity battery tester machine

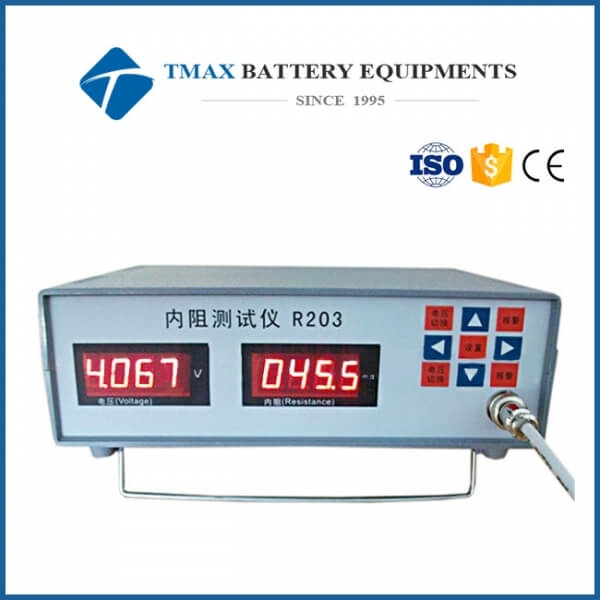

High Accuracy Battery Internal Resistance Tester For Lab R&D
SPECIFICATIONS
1 Usually
the smaller resistance for the battery or battery core, the higher quality for
the battery.
So testing
battery resistance is a rapid and accurate method to check battery performance.
2 TMAX-R203
Battery internal resistance tester adopts four line acquisition method, can
test the resistance orimpedance with or without power supply.
3 This
battery internal resistance tester is widely used for battery manufacture and
battery sellers to check the battery performance. Learn more about Battery Capacity Tester here!
Machine model |
Battery internal resistance tester TMAX-R203 |
Source voltage |
AC110V-240V, 50/60HZ |
Power |
10-30W |
Testing speed |
100ms |
Advantages |
Can connect with computer Suitable varies kinds battery and battery core Buzzer alarm |
Voltage test V1 |
Voltage range : 0-4.999V |
Minimum resolution : 0.001V |
|
Accuracy : ±0.002V |
|
Voltage test V2 |
Voltage range : 0-29.99V |
Minimum resolution : 0.01V |
|
Accuracy : ±0.01V |
|
Resistance test R1 |
Resistance range : 0.1—200 mΩ |
Minimum resolution : 0.1mΩ |
|
Accuracy : ±0.5 mΩ |
|
Resistance test R2 |
Resistance range :1—2000 mΩ |
Minimum resolution : 1mΩ |
|
Accuracy : ±2 mΩ |
|
Suitable batteries |
Lithium battery, lithium pouch cell(Lithium polymer battery), Nickel metal hydride, nickel cadmium battery, lead-acid battery and so on. |
Dimension |
250*190*90mm |
Weight |
2kg |
Warranty |
One Year limited warranty with lifetime support |
