capacity battery tester

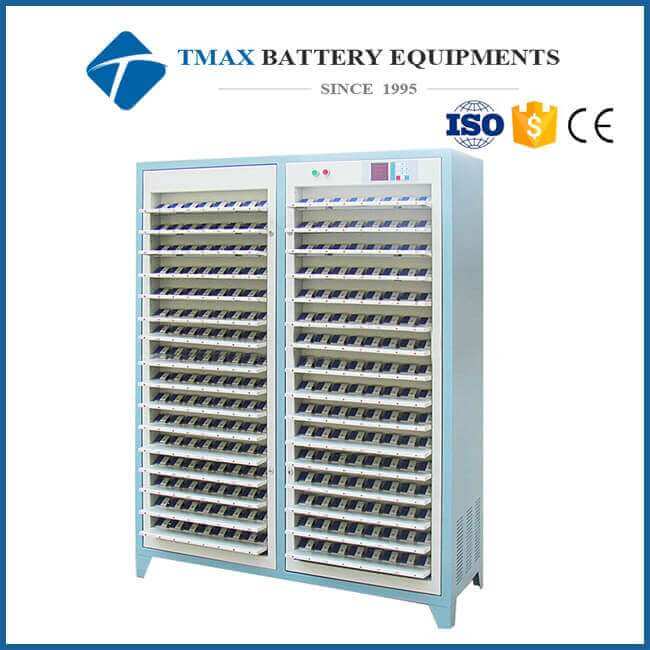

512 channel polymer capacity battery tester machine

  • Model Number:

    TMAX-BT0502-512-LP
  • Input Power:

    7000w
  • Dimension(L*W*H):

    1500*1500*1900mm
  • Compliance:

    CE Certified
  • Warranty:

    1 Year limited warranty with lifetime support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

BT0502-512-LP POLYMER BATTERY TESTER


       This equipment mainly constitute by the computer system and control software, communication interface and battery detecting cabinet. Battery detecting cabinet comprises a fixture and placed the plate body of the fixture, charging, constant current and constant voltage source discharge constant current source, storage control circuit, current sampling circuit, voltage sampling circuit, the main control CPU, data memory, microcontroller programming and control panel.



FUNCTION

1. specially used for chemical and capacity separation of polymer lithium ion batteries.

2.per device consists of a set of completely independent MCU control system, using double-sided structure for our customers to save plant area, the whole equipment can test constant current charging and constant voltage of 512 monomer lithium ion battery;

3. using a unique constant current constant voltage power, constant current to constant voltage switch without impact, especially suitable for lithium ion battery charging and discharging requirements;

4.device can control center by using P89C668 single chip computer, device can control by upper computer or break away it with the external sampling circuit to complete constant current constant voltage charging, constant current discharge test, capacity sorting work.

5. each battery test station has independent constant current and constant voltage power.

Contact us for more details about Battery Charge Tester!



SPECIFICATIONS

Project index

Parameter index

Model

TMAX-BT0502-512-LP

Demension

1500*900*1900(mm)

Working power supply

AC 220V ±5%  50HZ

Max Power Dissipation

10000w

Channel no

512

Support battery height range

10-95mm( stepless adjustment)

Clamp spacing

35mm

Voltage measurement range

DC100~4500mV

Voltage accuracy

±0.1%FS ±0.1%RD
<![if !supportLineBreakNewLine]>
<![endif]>

Voltage measurement range

  DC100-4500mV

Voltage resolution

 1mV

Constant voltage range

 DC2000~4500mV

Minimum discharge voltage

 2000mV

Charge discharge current range

 DC5~3000

Current accuracy

  ±0.1%FS ±0.1%RD

Current  resolution

  1mV

Time measurement range

 999min/step

Time measurement erro

  ±0.1%

Working temperature

0~40

Relative humidity

≤85%
