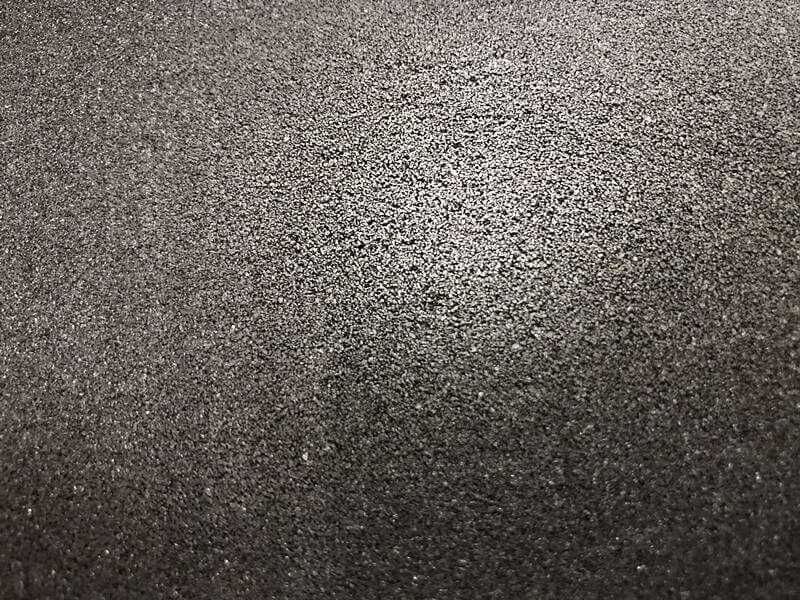

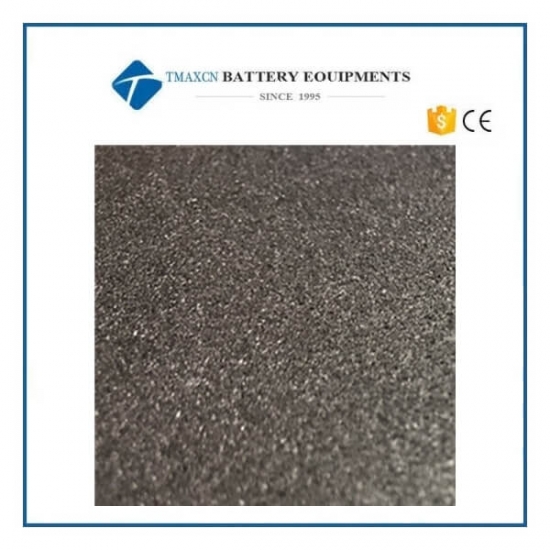

0.6-3 mm Thickness Titanium Foam Ti Metal Foam

Introduction

Titanium foam with high purity titanium powder as raw material, after screen, cold isostatic pressing molding, high temperature, high vacuum sintering.Thus titanium filter with its high-tech materials and special molding process, has the unique excellent properties

Color : Light grey

Dimension : 200mm*300mm or customized as request

Thickness : 0.6-3.0mm

Excessive precision (The aperture) : 5um-100um、

Filtration accuracy: 0.45um-100um

Temperature resistance : 800 ℃

Porosity: 28-50%
Transmittance rate: 0.02-20M3cm/m2h.mmH2O
Maximum working pressure range: 0.6Mpa
Compressive strength: 0.5-1.5Mpa

Titanium filter with its unique performance, can be widely used in pharmaceutical industry, water treatment industry, food industry, biological engineering, chemical industry, petrochemical industry, metallurgical industry and gas purification field.Is one kind has broad prospects for development of new materials

Reference dimensions
