Roll Ball Mill Machine

100-2000L Large Roll Ball Mill Machine

  • Model Number:

    TMAX-QM-500L
  • Input Power:

    0.75KW
  • Dimension(L*W*H):

    750*470*564mm
  • Net Weight:

    80KG
  • Compliance:

    CE Certified
  • Warranty:

    One years limited warranty with lifetime technical
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

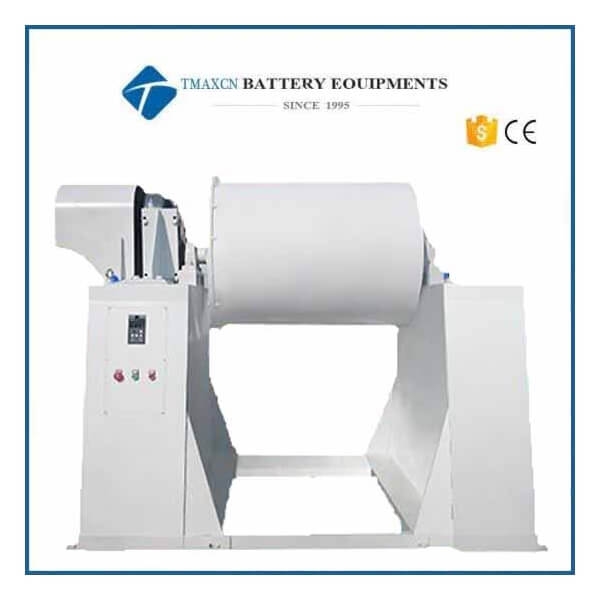

100-2000L Large Roll Ball Mill Machine


Large roll ball mill is a kind of equipment used for ultra-fine grinding and mixing for batch production, which is also called rolling machine altar. The machine is preferred equipment for scientific research, teaching, experiment and production due to its advantages such as beautiful design, compact structure, easy operation, high efficiency, and uniform granularity. It is widely applied to industries of electronic material, magnetic material, biological medicine, ceramic glaze, metal powder, nonmetallic minerals, new materials and etc.


Roll Ball Mill

Working Principle
When ball mill works, the grinding media and the materials of the cylinder are rotated to a certain height. Due to the gravity, they fall down from the tube wall. The materials are crushed by impact action of the grinding media, and friction and shearing action of grinding media’s rolling and sliding.

Advantages
Optimal design of rotating speed is adopted in the machine, where mill jar is dragged to rotate by rubber roller, balls inside the jar make incline flow movement and disperse materials, thus it obtains best effects of grinding. As result, materials are ground to micron powder. Timing control panel is adopted in the machine with controlling functions of pausing and cumulative timing, and you may set working time according to requirement at any time. It saves time and labor, and is easy for operating.

 Roll Ball Mill

Feature
The machine is extensively applied to in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection etc.

Application Cases of Planetary Ball Mill

Large Roll Ball Mill

Main Parameters of Large Roll Ball Mill

Model No.

Volume
(L)

Rotate Speed Range
(rpm)

Material Capacity
(L)

Power Supply

Available Jars

Feed Size
(mm)

Output Granularity
(mesh)

Adjustable Mode of Rotate Speed

QM-100L

100

20~45rpm

35

2.2KW/380V

Carbon Steel,
Stainless Steel,
Nylon Liner,
Alumina Ceramic Liner,
PU(polyurethane) Linner,
PTFE Liner.

≤20

≥300

Frequency adjuster
or Fixed setting for buyer's options

QM-200L

200

20~40rpm

70

4KW/380V

≤20

≥300

QM-300L

300

20~38rpm

105

5.5KW/380V

≤20

≥300

QM-500L

500

20~36rpm

175

7.5KW/380V

≤20

≥300

QM-1000L

1000

20~34rpm

350

11KW/380V

≤30

≥300

QM-2000L

2000

20~34rpm

700

22KW/380V

≤30

≥300


Besides the planetary ball mill machine, our factory provides all kinds of mill potslike stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls,tungsten mill balls, etc.

Large Roll Ball Mill

Suggestions for Matching Solution About Mill Jars & Materials

Large Roll Ball Mill

We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.


Large Roll Ball Mill

Suggestions for Matching Solution About Grinding Medium & Materials

Large Roll Ball Mill

Large Roll Ball Mill
