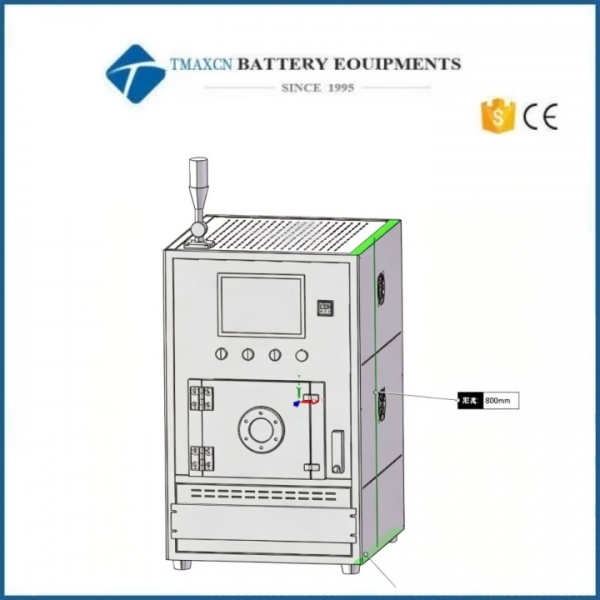

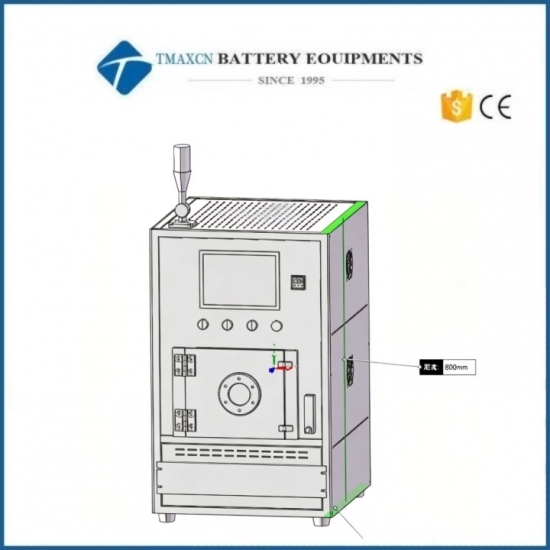

10L Vacuum Plasma Cleaning System with PLC Based Automatic Control

Product Introduction:

The plasma cleaning machine is a high-tech dry processing equipment that uses plasma to clean, activate, etch and modify the surface of materials. It is widely used in precision manufacturing, semiconductors, healthcare, electronics and new energy fields. It can handle various materials such as metals, plastics, rubber, glass and high-molecular materials. It enhances surface performance: not only can it clean, but also can improve the wettability, adhesion and coating adhesion of the materials.

The plasma cleaning machine is mainly composed of three parts:

2) (Buttons, PLC, touch screen, etc.).

3) Vacuum chamber: Made of stainless steel, it is used to hold samples and maintain a vacuum environment.

4) Vacuum pump: It is divided into dry pump and oil pump, which are used to draw vacuum to support plasma generation. Advantages:

Environmental protection: No use of harmful solvents, no liquid discharge, it belongs to green cleaning technology.

Efficiency: The cleaning process only takes a few minutes and can reach deep into the micropores and internal parts of complex structures.

Safety: It avoids the harm to the human body caused by chemical reagents.

1. Chamber size: 220*260*200mm

2. Tray size: 220*230mm (two layers of trays)

3. Chamber material: 304 stainless steel with surface treatment

4. Overall size: approximately 650*550*440mm

5. Chamber volume: 10L

6. Power frequency: 40KHz

7. Power supply capacity: 0~1000W adjustable continuously

8. Flow meters: two high-precision float flow meters

9. Control process: fully automatic or manual (PLC human-machine interface)

10. Control system: 7-inch display, PLC control

11. Cleaning time: adjustable from 0 to 99999 seconds

12. Vacuum degree: 1~30Pa

13. Chamber temperature: <60℃

14. Power supply voltage: 220V

15. Vacuum pump: 8L/s (oil pump)
