110000pcs/h Automatic Rotary Tablet Compression Press Machine

110000pcs/h Automatic Rotary Tablet Compression Press Machine

Introduction

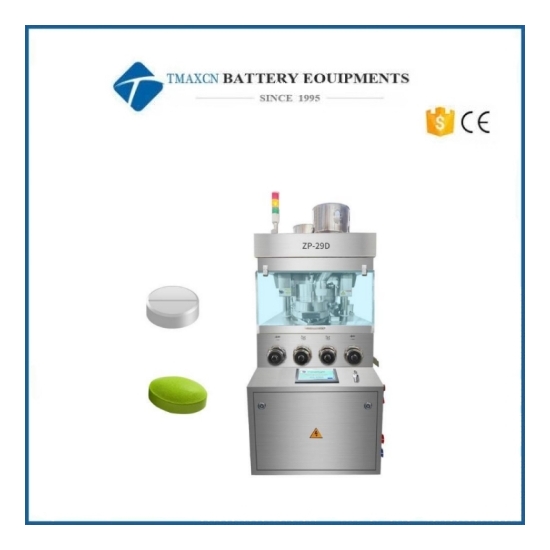

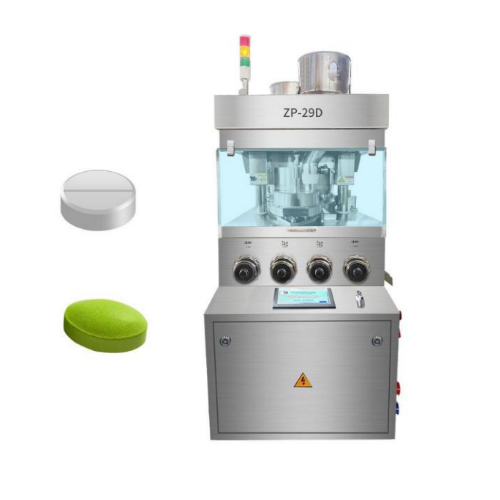

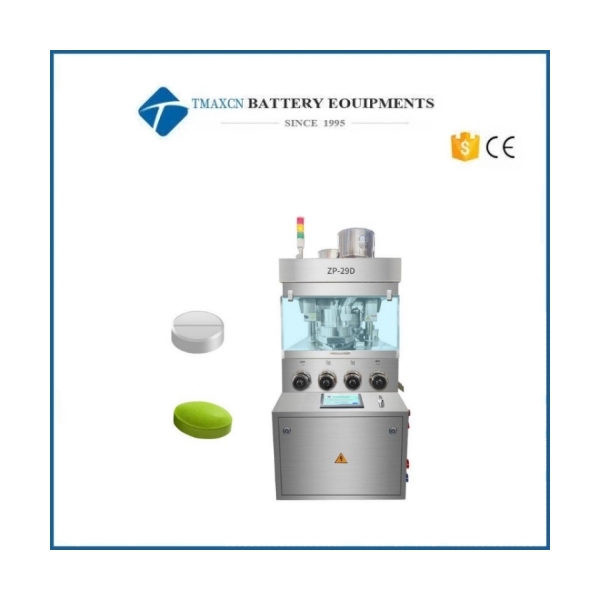

ZP-29D is a new model double pressure rotary tablet press machine,and is suitable for continuously pressing powder and particle into round tablets, special-shaped tablets, double color and annular tablet.maximum press diameter 24mm, maximum pressure 100kn, maximum capacity 110,000 pcs/h, maximum press thickness 12mm,it is suitable for pressing that material that is difficult formed into tablet,meet the requirements of cGMP production.

Main Features

• This machine adopts double pressure, with 29 sets of mold,At the same speed,the output is twice the single pressure.Maximum press diameter 24mm, maximum capacity 110,000pcs/h, maximum press thickness 12mm.

• The turntable is made of nodular cast iron and strictly implemented for 12 months,which is hard, wearable,non-toxic and smooth,which fully meets the requirements of cGMP.

• The upper and downlink rail motion adopts the cosine curve, the turntable add damping structure, the acceleration is 0, no jump and more stable operation.

• The sensitivity of the hand wheel is 0.1mm, and adjust the pressure, filling volume more accurately.

• Lower pressure wheel shaft and the lower rail guide are installed with the casting subtraction structure (new patent), which is convenient for disassemble, maintenance and repla cement.

Technical parameters
