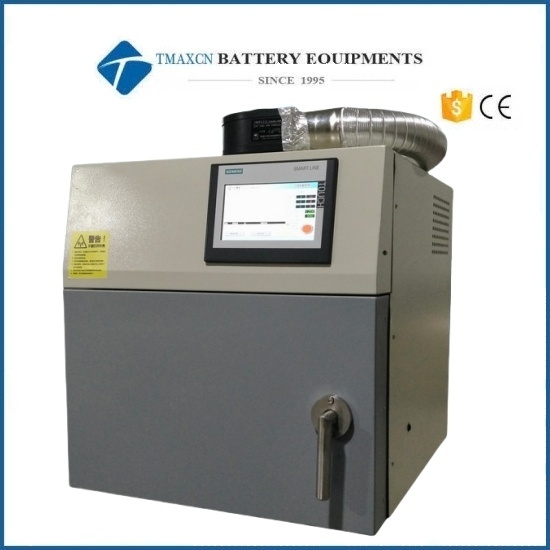

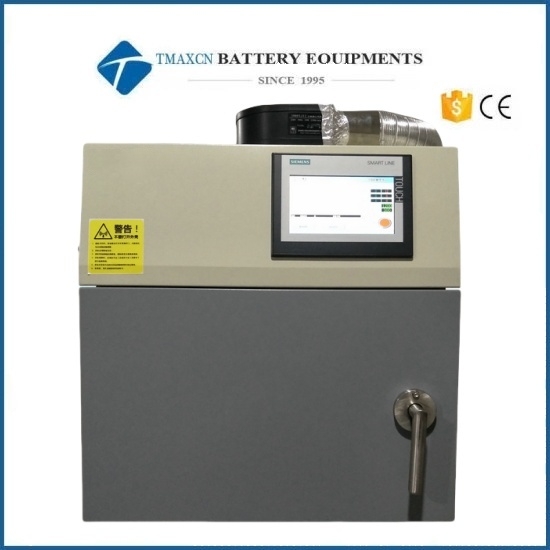

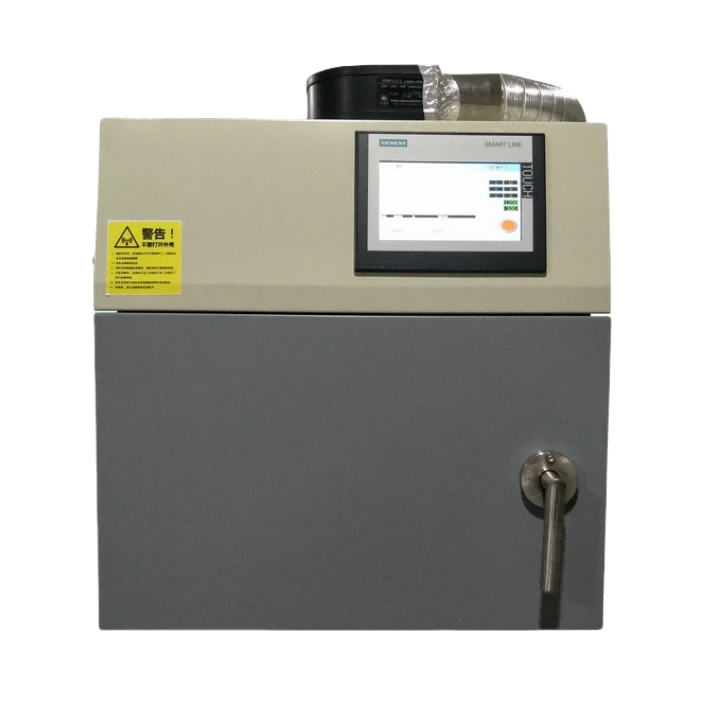

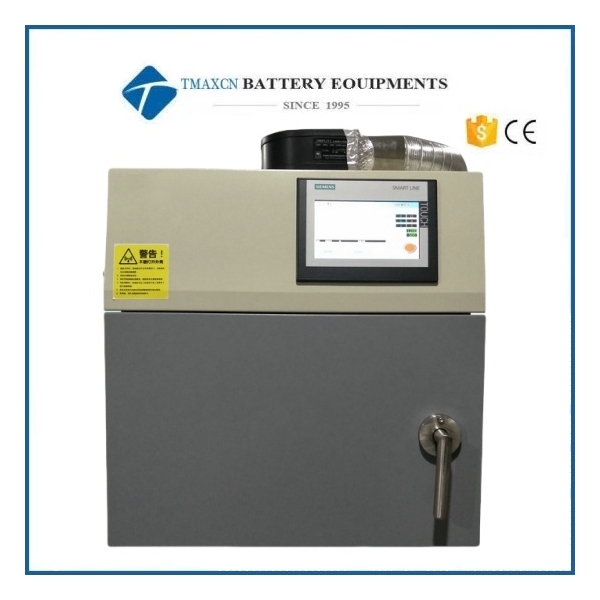

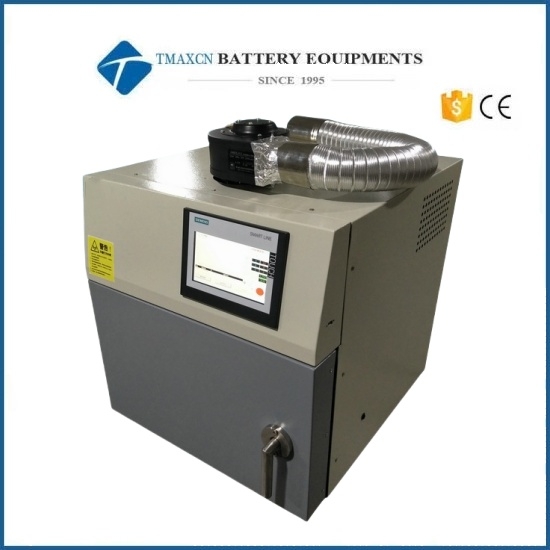

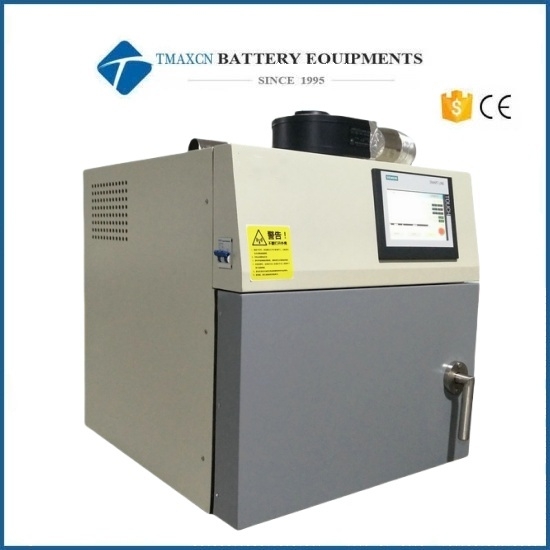

1100C Microwave High Temperature Ashing Furnace

Product application

The CY-HF1000C-M microwave high-temperature furnace is an air furnace with rapid microwave heating, suitable for high-temperature calcination, calcination, thermal decomposition, solid-state reaction, recrystallization experiments, etc. in the laboratory

Product features

● International brand control system, stable and reliable

Industrial-grade microwave system, with stable operation and long service life, integrated design, compact and lightweight structure

● The material heating rate is fast, reaching up to 100℃/min, and the heating time is shortened to 1/5 to 1/10 of the original

● During the heating process in the furnace, the temperature is uniform, and the ceramics can be sintered rapidly without cracking

● Vacuum-formed thermal insulation fiber lightweight structure, energy-saving and highly efficient

● Power off when opening the door and delay power restoration to ensure safety

The 7-inch large touch screen operation is simple and convenient

● Non-contact heating, no pollution to materials

● Four sets of processes are pre-stored and can be directly called up and modified at any time

Product safety

● Microwave leakage ≤0.05mw/cm² (lower than the average leakage value of mobile phones)

● Alarm: Equipment overheating, furnace door not closed tightly, magnetron overheating, microwave system failure

● Model: CY-HF1000C-M

Equipment structure: Desktop (placed on the laboratory bench)

● Voltage: 220±10V, 50Hz

● Rated power: 5KW

● Microwave power: Continuously adjustable from 0.01 to 2.8kW

● Microwave frequency: 2.45GHz

● Operating temperature: ≤1000℃

● Heating space: 225×120×225mm(6L)

● Heating rate: ≤100℃/min

● Temperature control accuracy: ±2℃

● Control program: Manual, constant temperature, automatic control, with data storage and export of experimental data; The curve is displayed in real time, with multiple settable process parameters. Four groups of processes are pre-stored and can be directly called up and modified at any time

● Control mode: 7-inch touch screen +PLC

● Microwave leakage: < 0.05mw/cm ²

● Alarm: Equipment overheating, furnace door not closed tightly, magnetron overheating, microwave system failure

● Equipment dimensions: 650×660×800mm(length × width × height)

Equipment configuration

1. 304 stainless steel furnace body (1 set), carbon steel powder-coated protective cover (1 set)

2. Industrial-grade microwave heating system (1 set)

3. Insulation module (1 set), strong wave absorption bearing plate (6 pieces), partition (1 piece), crucible (6 pieces)

4. Mitsubishi brand PLC (1 piece), 7-inch Siemens touch screen (1 piece)

5. Handheld microwave leak detector (1 piece), microwave jammer (1 piece), operation gloves (1 set), crucible tongs (1 pair)

Fragile items

1. Insulation module

2. Strong wave absorption load-bearing plate

3. Partition

4. Crucible
