Muffle Furnace

1200°C Muffle Furnace w/ Kanthal (Sweden) Heating Elements

  • Model Number:

    TMAX-1200Muffle
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    15 day
  • contact now
Product Details

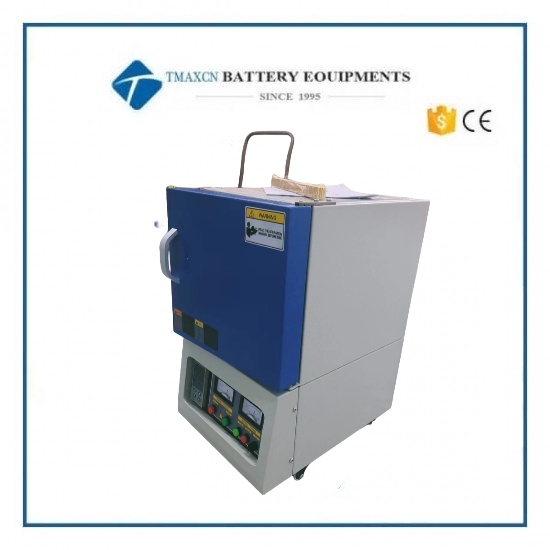

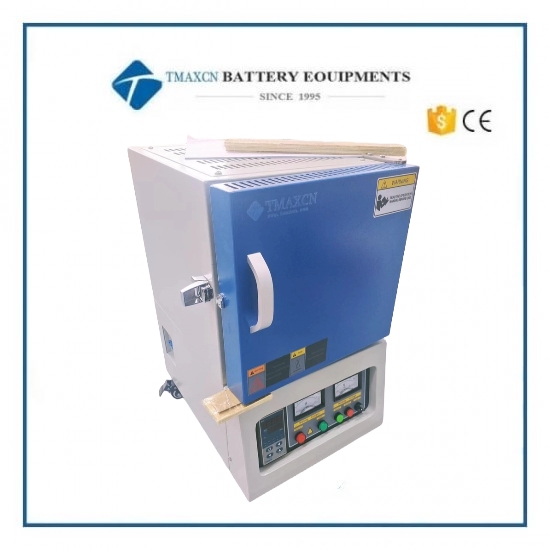

1200°C Muffle Furnace w/ Kanthal (Sweden) Heating Elements

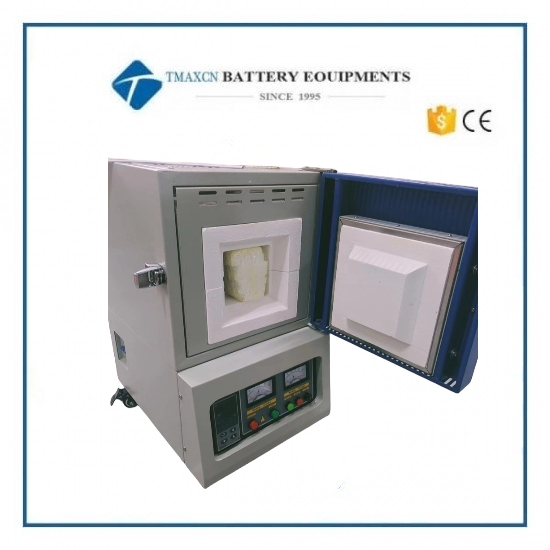

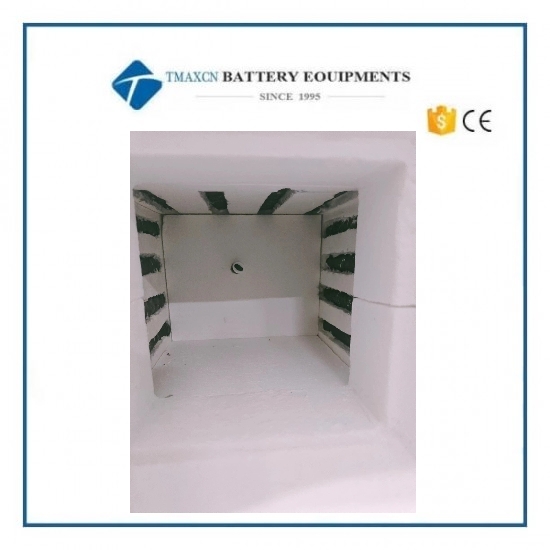

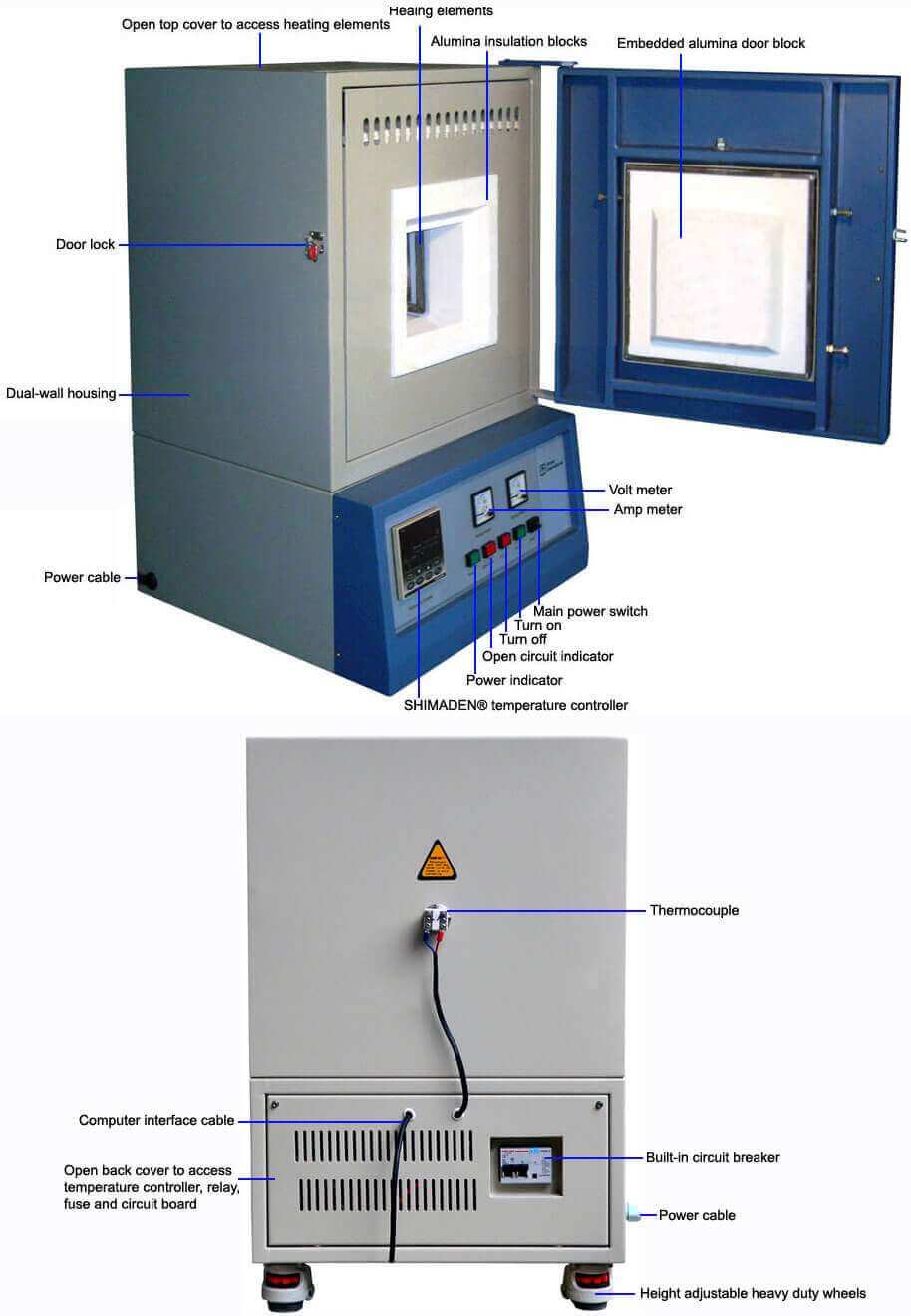

TMAX-1200Mufflemuffle furnaces feature the famous Kanthal(Sweden) spiral wire coils embedded in Mitsubishi (Japan) high quality alumina fiber insulation. A double walled steel internal housing helps minimize heat loss to exterior surface.

Furnace operation is controlled by Shimaden (Japan) 40-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.


Features

1        Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.

2        Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.

3        Built-in computer interface.

4        Long life type K thermocouple.

5        CE compliant

Safety

1        Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.

2        Power failure protection resumes furnace operation right after the point of failure when power is reestablished.

Muffle Furnaces

Specifications

 Electrical requirements110

-240VAC, 50/60Hz, single phase

 Min. working temperature

 Ambient

 Max. working temperature

 1200°C (2192°F)

 Max. constant working temperature

 1100°C (2012°F)

 Refractory lining

 Mitsubishi (Japan) high quality 1500 grade fiber alumina

 Heating element type

 Kanthal (Sweden) resistance coil wire

 Thermocouple type

 K

 Temperature controller

 Shimaden fp93 (Japan) with 4 programs and 40 segments
 (ie. 4 x 10 segments or 2 x 20 segments)

 Max heating / cooling rate

 < 15°C (59°F) / min

 Temperature accuracy

 +/- 1°C

 CE compliance

 Yes


Size comparison

 Chamber size (DxWxH)

 12x8x8"

 16x12x12"

 Usable chamber space (DxWxH)

 10x7x7"

 14x11x11"

 Chamber capacity (cu ft)

 0.44

 1.33

 Maximum output

 4 kW

 9 kW

 Furnace dimensions (LxWxH)

 22x25x34"

 26x29x39"

 Shipping dimensions (LxWxH)

 28x28x36"

 34x37x46"

 Unit/shipping weight (Lb)

 530/620

 600/700



Standard Package



Part description





  Quantity





Part image



muffle furnace

 1 pc



 Type K thermocouple

 1 pc

 Stainless steel tongs

 1 pc

 Alumina thermal cushion block

 1 pc

 Thermal gloves

 1 pair

 Spare fuse

2 pcs

 USB/RS485 computer interface kit

 1 set






1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


laboratory muffle furnace


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
