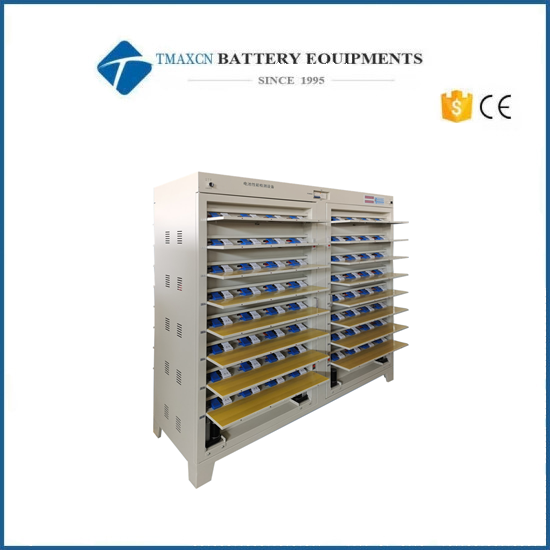

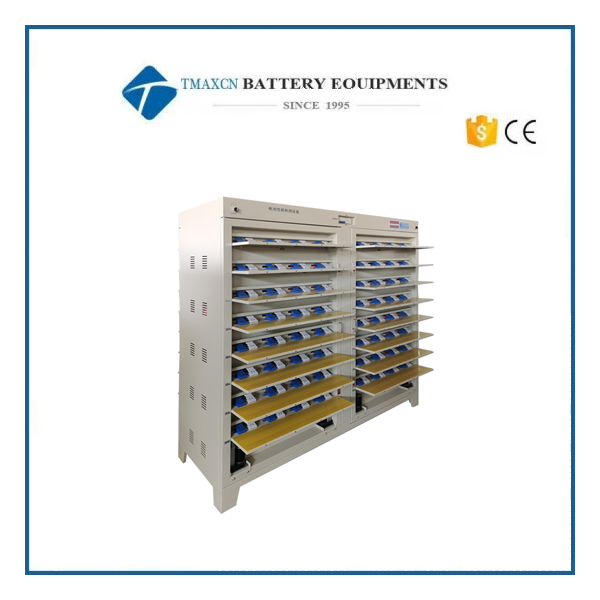

128 Channel 5V 10A Pouch Cell Tester

Model Number:
TMAX-S14-128-10A
Input Power:
11KW
Dimension(L*W*H):
L1680*W930*H1840mm
Compliance:
CE Certified
Warranty:
1 Year limited warranty with lifetime support
Payment:
L/C D/A D/P T/T Western Union
Delivery Time:
25 days

WhatsApp : +86 13003860308
Email : David@tmaxcn.com
Email : Davidtmaxcn@gmail.com
Wechat : 18659217588

Next:
5V 10A 196 Channel Battery Tester Charging and Discharging Machine for Prismatic Battery

Product Details

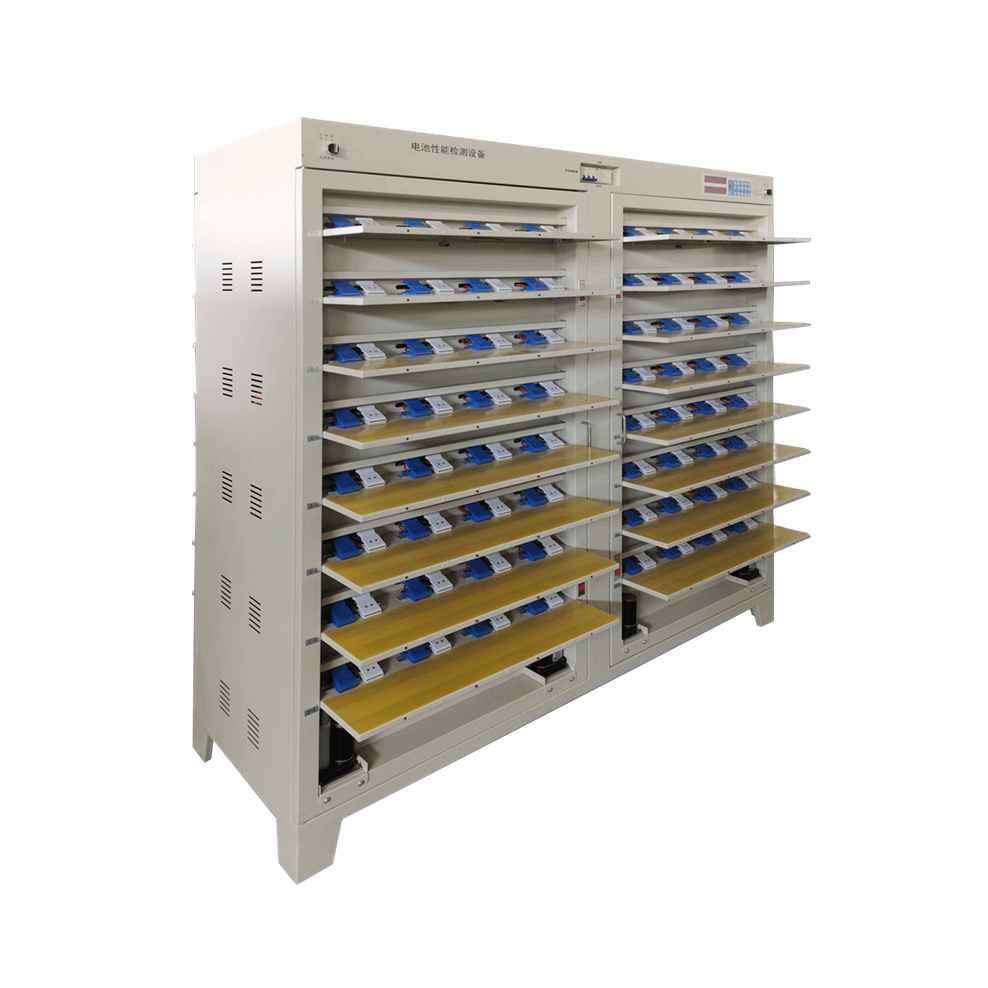

128 Channel 5V 10A Pouch Cell Tester

Conventional Battery Capacity Tester Structure:

Number of Equipment Channels: 128 channels in total

Overall Dimension: L1680*W930*H1840mm

Chassis Color: Standard off white (customizable)

Fixture Form: Automatic clamp opening, 80 split rail polymer clamp

Clamp spacing: 150mm

Supporting Battery Specification: Polymer, soft pack battery

Working Power Supply: Three phase five wire AC380V±10%,50HZ

Working Power Consumption: ≤11KW

Working Environment: Temperature 0-40 ℃, relative humidity ≤ 80%

Heat Dissipation Mode: Natural air inlet and upward exhaust

Parameters:

Voltage Measurement Range: 0-5V

Battery Voltage Range: Charging 0-4.5V; Discharge 4.5-2V

Constant Voltage Range: 2.5-4.5V

Voltage Accuracy: ±( 1‰ reading + 1‰ full scale)

Voltage Resolution: 1mV

Voltage Stability: ≤ 1‰

Current Range: Charge 100mA-10A; Discharge100mA-10A

Current Accuracy: ±( 1‰ reading + 1‰ full scale)

Current Resolution: 10mA

Current Stability: ≤ 1‰

Software Function:

Control Mode: Software installation, computer connection, equipment work, whole cabinet control

Communication Mode: Serial port, baud rate 57600

Process Setting: Up to 32 steps and 256 cycles can be set

Charging Mode: Constant current, constant voltage, constant current and constant voltage

Charging Cut-off Conditions: Voltage, current, time, capacity.

Discharge Mode: Constant current

Discharge Cut-off Conditions: Voltage, time, capacity

Protection Function: Over voltage, under voltage, over current, under current,over capacity protection, power-off protection,data breakpoint recovery.

Time Range: Any setting within 0-30000 minutes, time unit: min

Time Accuracy: ≤ ± 1‰

Sampling Inspection Period: ≤4s

Minimum Data Recording Frequency: ≤ 5S

Battery Sorting: Sorting according to capacity, time, open circuit voltage,discharge platform, etc.

Data processing: It can record voltage, current, time, capacity and other data,automatically calculate constant current charging ratio, capacity loss,discharge efficiency, average voltage, median voltage and other data, and provide data curve and cycle diagram;It can output text, Excel, word or MDB database format file.
