Battery Charger

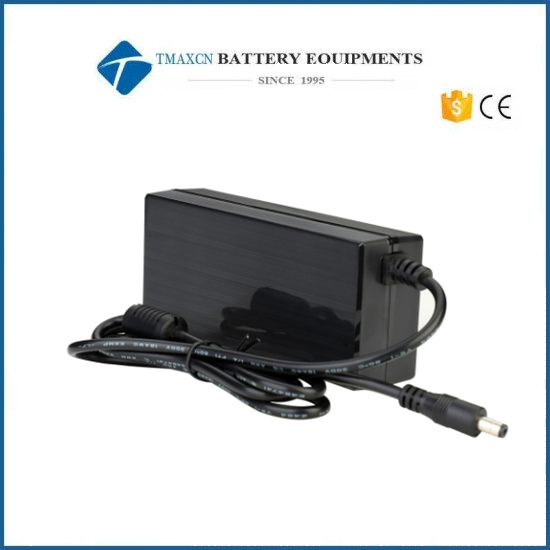

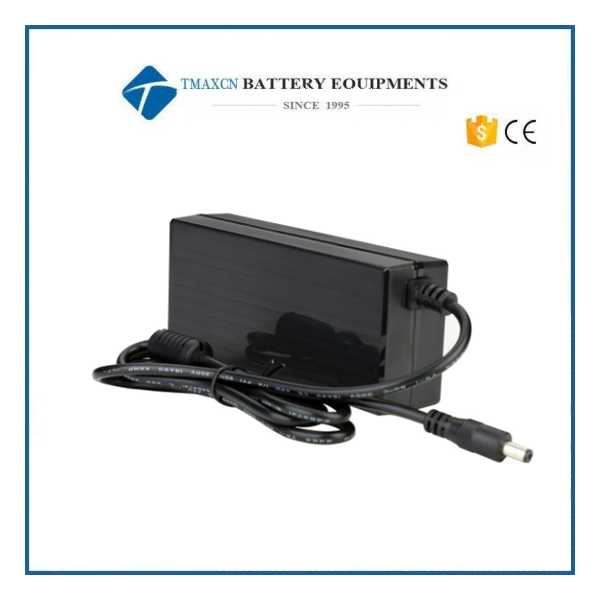

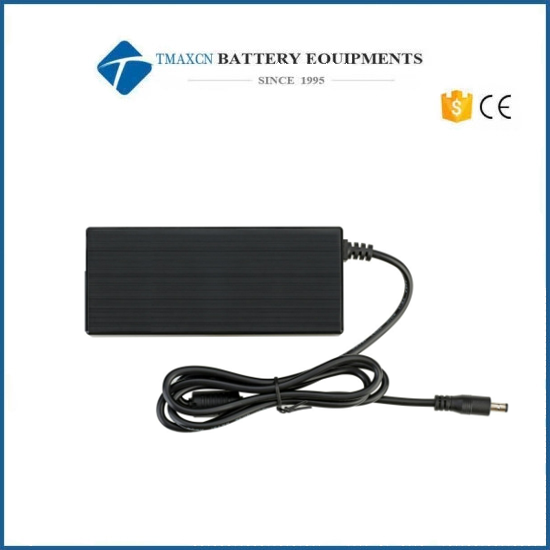

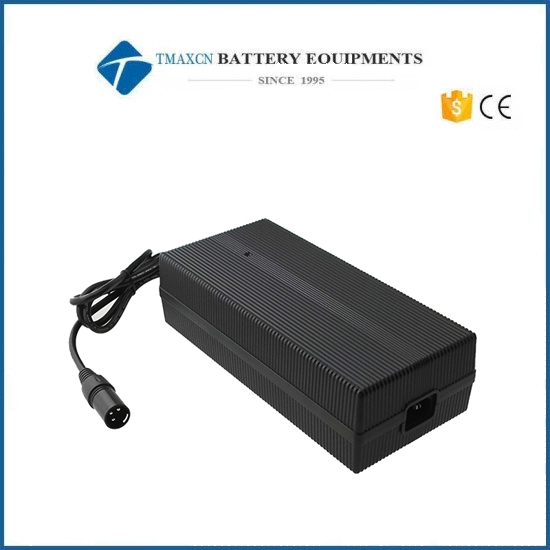

12V 6A 8A 12A 16A 15A 25A Battery Charger EV Battery Pack Charger Lithium Battery Charger

  • Model Number:

    TMAX-12V-Charger

  • Compliance:

    CE Certified

  • Warranty:

    One year limited with life time support

  • Place of Origin:

    China

  • Shipping Port:

    Xiamen

  • Delivery Time:

    5 days
Product Details

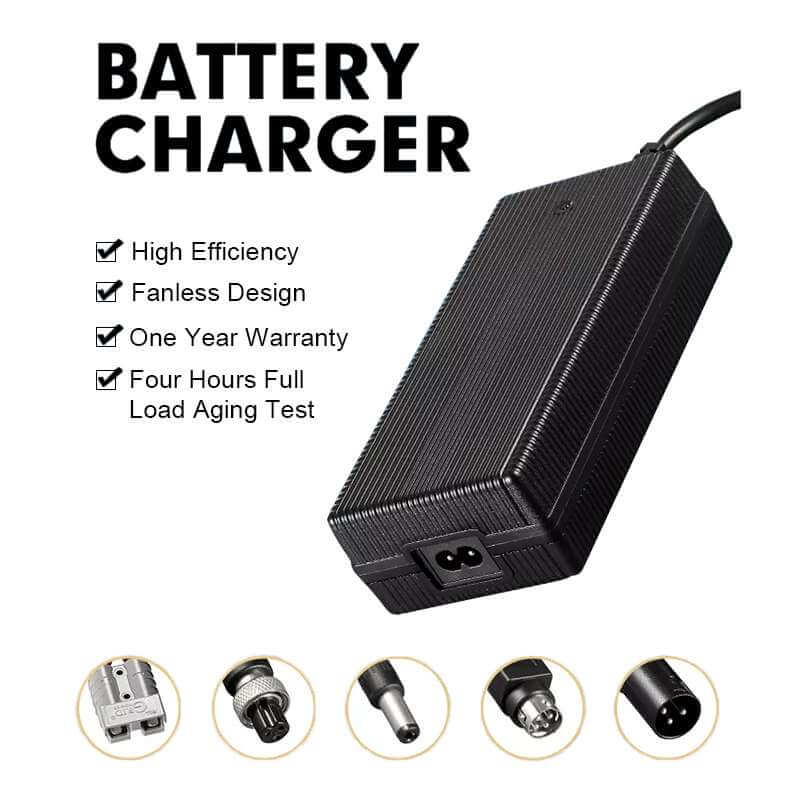

12V 6A 8A 12A 16A 15A 25A Battery Charger EV Battery Pack Charger Lithium Battery Charger



Fast input charger can be for lifepo4 batteries, lead acid batteries, lithium ion phosphate battery pack, and so on.


Application:

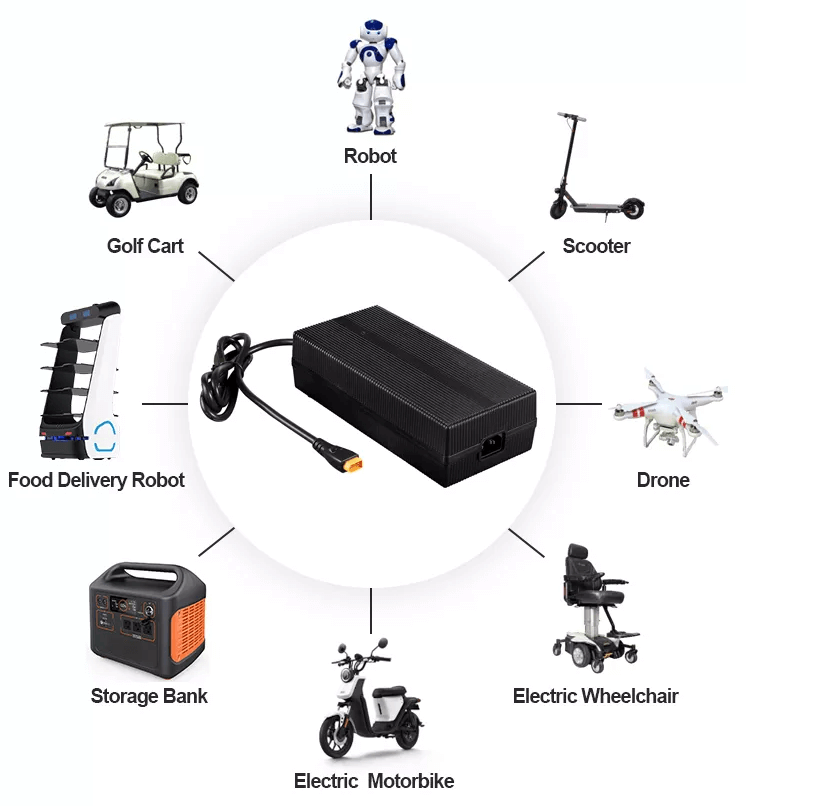

auto car,small toy bike, electric bicycles,trailer, tricycles, scooters, power tools forklift, ground washer, motorcycle, marine boat, mobile phone, golf cart, lawn mower,sightseeing car, cleaning car, low speed car and various other kinds of devices.

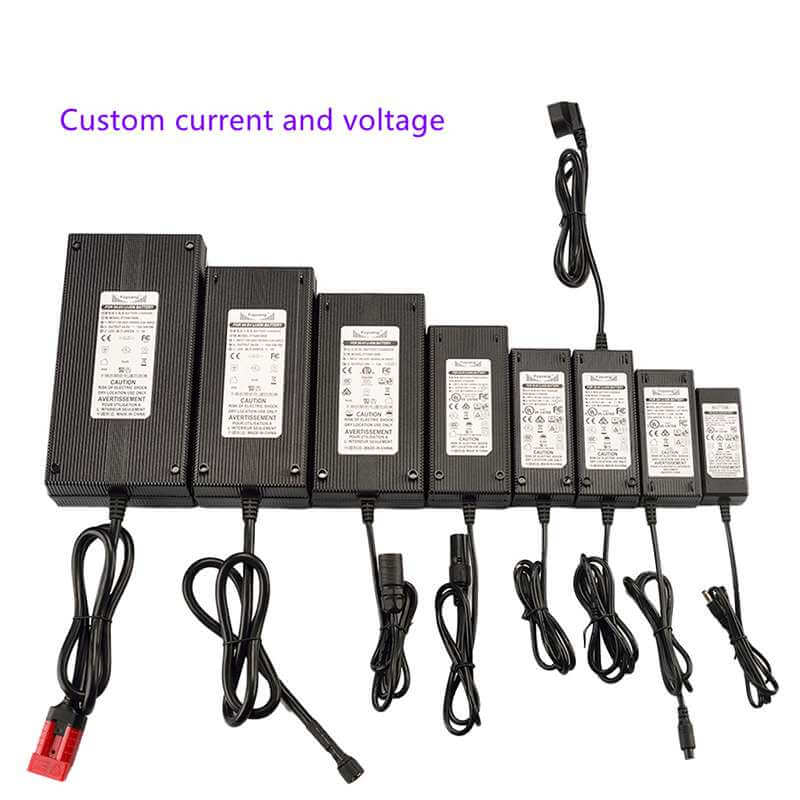

Bellowing is our main 12V battery chargers for your reference:

90W battery charger: mainly output is 12V 6A

120W battery charger: mainly output is12V 8A

180W battery charger: mainly output is 12V 12A

240W battery charger: mainly output is 12V 16A

360W battery charger: mainly output is 12V 15A

600W battery charger: mainly output is 12V 25A

900W-1500w battery charger: mainly output is 12V 60A


Types of 12V Battery Charger

90W 12V 6A Battery Charger:

Charger Model

AC Input Voltage

Battery Voltage

Max Voltage(V)

Max Current (A)

AP-PN90CH01460070

100-240

12

14.6

7

AP-PN90CH02920030

100-240

24

29.2

3

AP-PN90CH04200020

100-240

36

42

2

AP-PN90CH05460015

100-240

48

54.6

1.5

AP-PN90CH01200070

100-240

12

14.7

7

AP-PN90CH02400030

100-240

24

29.4

3

AP-PN90CH03600020

100-240

36

42

2

AP-PN90CH04800015

100-240

48

58.8

1.5

INPUT

AC Input Voltage Range

100V ~ 240V



AC Input Frequency

45~65HZ



AC Power Factor Correction

≥0.98

OUTPUT

Output Voltage Range

12~60V



Output Power Range

7A（Max）

VIBRATION

10～50HZ 2G 10 minutes，X，Y，Z /60 minutes

DIMENSIONS(mm)

(L)141х(W)60х(H)32

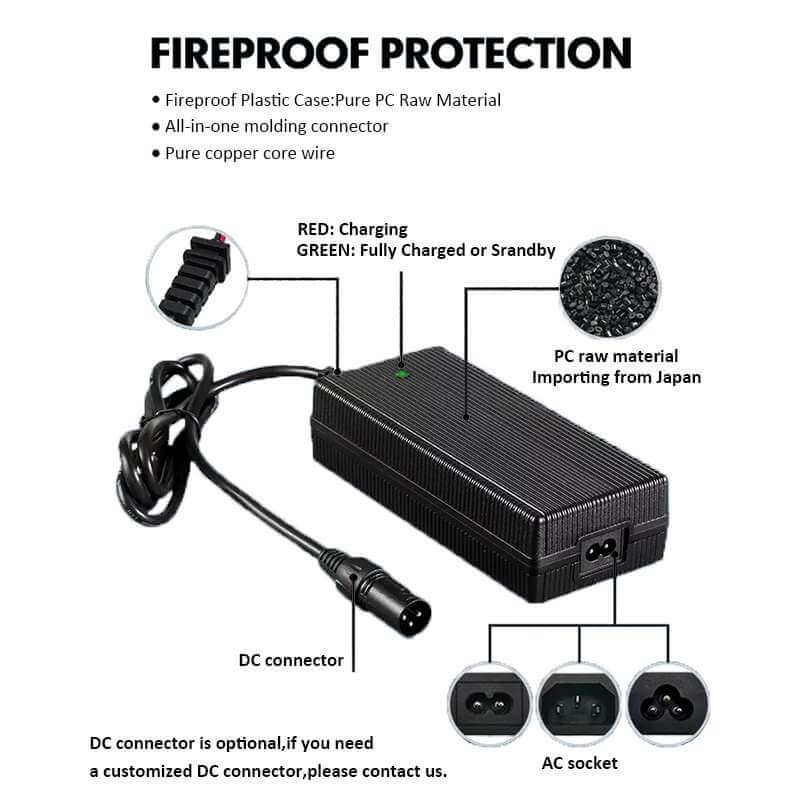

Protections

Over current protection ,Over Voltage Protection ,Short- circuit Protection Reverse Connection Protection ,Battery open-circuit protection

CERTIFICAZTIONS

CE ROHS

PACKING DETAILS

0.35kg/pcs

24pcs/Carton

Carton size: 470*365*190MM

120W 12V 8A Battery Charger:

Charger Model

AC Input Voltage

Battery Voltage

Max Voltage(V)

Max Current (A)

AP-PN120CH01460080

100-240

12

14.6

8

AP-PN120CH02920040

100-240

24

29.2

4

AP-PN120CH04200030

100-240

36

42

2.5

AP-PN120CH05460020

100-240

48

54.6

8

AP-PN120CH01200080

100-240

12

14.7

8

AP-PN120CH02400045

100-240

24

29.4

4

AP-PN120CH03600030

100-240

36

42

2.5

AP-PN120CH04800020

100-240

48

58.8

2

INPUT

AC Input Voltage Range

100V ~ 240V



AC Input Frequency

45~65HZ



AC Power Factor Correction

≥0.98

OUTPUT

Output Voltage Range

12~60V



Output Power Range

8A（Max）

VIBRATION

10～50HZ 2G 10 minutes，X，Y，Z /60 minutes

DIMENSIONS(mm)

(L)162х(W)70х(H)35

Protections

Over current protection ,Over Voltage Protection ,Short- circuit Protection Reverse Connection Protection ,Battery open-circuit protection

CERTIFICAZTIONS

CE ROHS

PACKING DETAILS

0.4kg/pcs

24pcs/Carton

Carton size: 470*365*190MM


180W 12V 12A Battery Charger:

Charger Model

AC Input Voltage

Battery Voltage

Max Voltage(V)

Max Current (A)

AP-PN180CH01460120

100-240

12

14.6

12

AP-PN180CH02920060

100-240

24

29.2

6

AP-PN180CH04200040

100-240

36

42

4

AP-PN180CH05460030

100-240

48

54.6

3

AP-PN180CH01200120

100-240

12

14.7

12

AP-PN180CH02400060

100-240

24

29.4

6

AP-PN180CH03600040

100-240

36

42

4

AP-PN180CH04800030

100-240

48

58.8

3

INPUT

AC Input Voltage Range

100V ~ 240V



AC Input Frequency

45~65HZ



AC Power Factor Correction

≥0.98

OUTPUT

Output Voltage Range

12~60V



Output Power Range

12A（Max）

VIBRATION

10～50HZ 2G 10 minutes，X，Y，Z /60 minutes

DIMENSIONS(mm)

(L)190х(W)80х(H)42

Protections

Over current protection ,Over Voltage Protection ,Short- circuit Protection Reverse Connection Protection ,Battery open-circuit protection

CERTIFICAZTIONS

CE ROHS

PACKING DETAILS

0.54kg/pcs

24pcs/Carton

Carton size: 470*365*190


240W 12V 16A Battery Charger:

Charger Model

AC Input Voltage

Battery Voltage

Max Voltage(V)

Max Current (A)

AP-PN240CH01460160

100-240

12

14.6

16

AP-PN240CH02920080

100-240

24

29.2

8

AP-PN240CH04200060

100-240

36

42

6

AP-PN240CH05460040

100-240

48

54.6

4

AP-PN240CH01200160

100-240

12

14.7

16

AP-PN240CH02400080

100-240

24

29.4

8

AP-PN240CH03600060

100-240

36

42

6

AP-PN240CH04800040

100-240

48

58.8

4

INPUT

AC Input Voltage Range

100V ~ 240V



AC Input Frequency

45~65HZ



AC Power Factor Correction

≥0.98

OUTPUT

Output Voltage Range

12~60V



Output Power Range

16A（Max）

VIBRATION

10～50HZ 2G 10 minutes，X，Y，Z /60 minutes

DIMENSIONS(mm)

(L)203х(W)81х(H)47.5

Protections

Over current protection ,Over Voltage Protection ,Short- circuit Protection Reverse Connection Protection ,Battery open-circuit protection

CERTIFICAZTIONS

CE ROHS

PACKING DETAILS

1.2kg/pcs

1pcs/Carton

Carton size: 203*81*47.5mm


360W 12V 15A Battery Charger:

Charger Model

AC Input Voltage

Battery Voltage

Max Voltage(V)

Max Current (A)

AP-PN360CH01460150

100-240

12

14.6

15

AP-PN360CH02920100

100-240

24

29.2

10

AP-PN360CH04200070

100-240

36

42

7

AP-PN360CH05460060

100-240

48

54.6

6

AP-PN360CH01200150

100-240

12

14.6

15

AP-PN360CH02400100

100-240

24

29.2

10

AP-PN360CH03600070

100-240

36

42

7

AP-PN360CH04800060

100-240

48

54.6

6

INPUT

AC Input Voltage Range

100V ~ 240V



AC Input Frequency

45~65HZ



AC Power Factor Correction

≥0.98

OUTPUT

Output Voltage Range

12~60V



Output Power Range

15A（Max）

VIBRATION

10～50HZ 2G 10 minutes，X，Y，Z /60 minutes

DIMENSIONS(mm)

(L)183х(W)122.5х(H)69

Protections

Over current protection ,Over Voltage Protection ,Short- circuit Protection Reverse Connection Protection ,Battery open-circuit protection

CERTIFICAZTIONS

CE ROHS

PACKING DETAILS

2kg/pcs

12pcs/Carton

Carton size: 580*480*185mm


600W 12V 25A Battery Charger:

Charger Model

AC Input Voltage

Battery Voltage

Max Voltage(V)

Max Current (A)

AP-H/LF600CH01460250

110/220

12

14.6

25

AP-H/LF600CH02920200

110/220

24

29.2

20

AP-H/LF600CH04200150

110/220

36

42

15

AP-H/LF600CH05460120

110/220

48

54.6

12

AP-H/LF600CH07140100

110/220

60

71.4

10

AP-H/LF600CH08400080

110/220

72

84

8

AP-H/LF600CH01200250

110/220

12

14.7

25

AP-H/LF600CH02400200

110/220

24

29.4

20

AP-H/LF600CH03600150

110/220

36

44.1

15

AP-H/LF600CH04800120

110/220

48

58.8

12

AP-H/LF600CH06000100

110/220

60

73.5

10

AP-H/LF600CH07200080

110/220

72

88.2

8

INPUT

AC Input Voltage Range

100V ~ 240V



AC Input Frequency

45~65HZ



AC Power Factor Correction

≥0.98

OUTPUT

Output Voltage Range

12~60V



Output Power Range

15A（Max）

VIBRATION

10～50HZ 2G 10 minutes，X，Y，Z /60 minutes

DIMENSIONS(mm)

(L)183х(W)122.5х(H)69

Protections

Over current protection ,Over Voltage Protection ,Short- circuit Protection Reverse Connection Protection ,Battery open-circuit protection

CERTIFICAZTIONS

CE ROHS

PACKING DETAILS

1.8kg/pcs

12pcs/Carton

Carton size: 535*315*280mm

Battery Charger



Application:




battery Charger
