1400C Atmosphere furnace

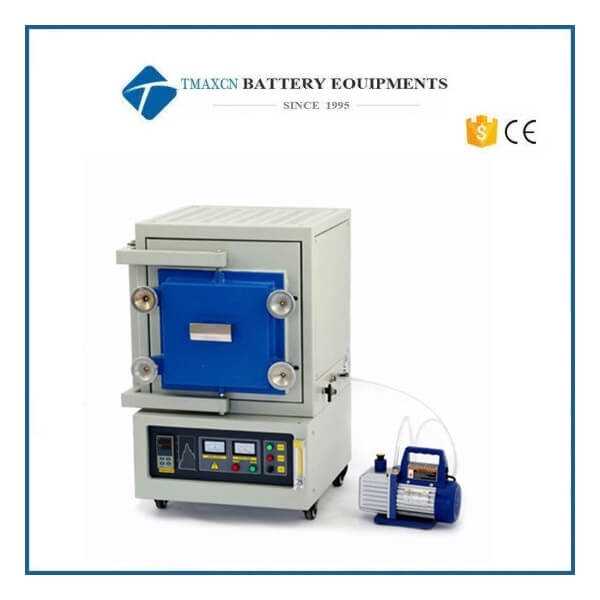

1400°C Atmosphere Muffle Furnace

  • Model Number:

    TMAX-1400CAtmosphere
  • Dimension(L*W*H):

    Size can be customized
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Shipping Port:

    Xiamen
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

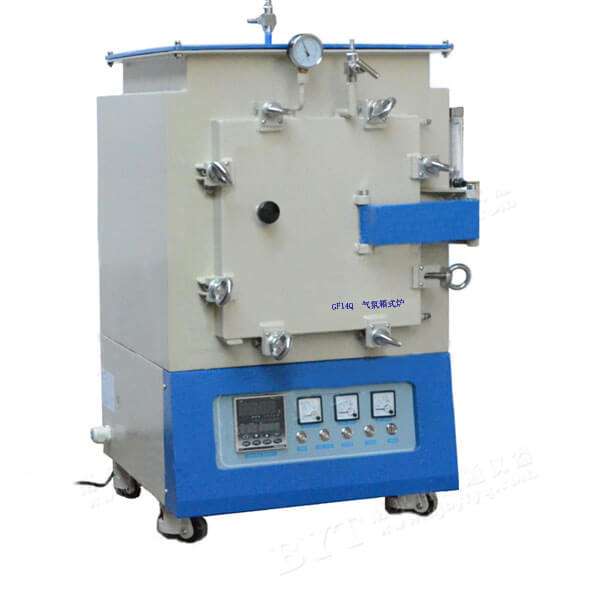

1400°C Atmosphere Muffle Furnace



TMAX-1400C Atmosphere has many advantages of uniform temperature field,low surface temperature,heating or cooling promptly and so on. it isthe ideal atmosphere muffle furnace for atmosphere protection sintering,atmosphere reducing in Industry, Scientific research institutes, Universities,which offer Heating element of Sic and double layer housing,phase-shift trigger,controlled silicon. Operation system is Shimaden 40-segments digital controller imported from Japan. The chamber is made of Polycrystalline alumina fibre. There is wind cooling system between the double walled housing to help the furnace heat or cool promptly. Sealed housing,silicon gel sealed cover,sealed door with silicon gel gasket and water cooling system,gas float through flow meter,then come out from back side, there are many gas inlets and gas outlets on the furnace with burning mouth,which can pre-vacuum and pass H2,Ar,N2,O2,CO,NH3 and so on.



Here is the video link for your reference:

https://www.youtube.com/watch?v=HB39SnDonGQ&feature=youtu.be

Features:

1.Temperature controller: Shimaden FP93

 40 programmable segments (Shimaden fp93 made in Japan), It can separate into 4,2,1

     programs, ie. 4x10 segments.

 FP93 have 6 PID controls, different PID are used for low,middle,high temperature for

     precise control.

 Over-temperature and over-current protection, shutdown automatically when

     thermocouple is broken( it will shut down power when temperature is higher than

        1420or thermocouples is broken, "ON" on the board is off and "OFF" is on)

 There is Fahrenheit (F) and Celsius (C) for option.

 With 485 communication interface: which can stop the furnace automatically.

2.Cover opening protection system: overtravel-limit switch is installed to protect user, it will cut

  off power when the cover is opened.

3.Chamber:it is imported from Japan,  good performance of heat preservation, high

  reflectivity, even temperature field, good ability of anti thermal expansion and cold contraction.

4.Heating elements:This furnace is installed with Sic to ensure uniform temperature field and long

  service life.

5.Leakage protection function:the furnace is installed with leakage air switch, it will cut off power

  Automatically when electricity leak or current exceed rated current.

6.Software controlling system:this furnace can control every parameter directly and observe PV

  and SV on the computer by communication interface and software, computer can draw and save

  actual heating curve, it is convenient to call these dates at any time.

7.Controlling system:

  Power control: Chint; Controlled silicon:Germany Semikron 106/16E; Trigger:Phase-shift trigger

8.Gas system:floating flow meter or digital flow meter is for option to control gas Speed.

9.Vacuum system: Vacuum level can be 10-1 or 10-4 with German molecular pump. TW-1.5

  vacuum pump is for option.Pre-vacuuming can help remove air in the chamber quickly.



 Parameters

Item No.

I

II

III

IV

V

VI

Chamber size

 (DxWxH)

150X160X160

mm

200X200X200

mm

300X200X200

mm

300X250X250

mm

400X300X300

mm

500X400X400

mm

Power

3KW

5KW

7KW

9KW

13KW

18KW

Voltage

220V

380V

Phase





Max. Temperature

1400

Constant temperature

1350

Thermocouple

Type S

Heating Element

Sic

Heating Rate

≤30 /min

Recommended Heating Rate

≤15 /min

Temperature Accuracy

+/- 1°C

Temperature Controller

Shimaden fp93 (imported from Japan) with 4 programs and  40 segments

 (ie. 4 x 10 segments or 2 x 20 segments)

Chamber Material

Polycrystalline 98% alumina fibre.Imported from Japan

Trigger

Phase-shift trigger


Configuration

Part name

  Quantity

GF Series atmosphere furnace

 1pc

Thermocouple

GF11Q-B: Type K

GF11Q:  Type K

GF14Q:  Type S

GF16Q:  Type B

GF17Q:  Type B

 1pc

Alumina cushion block

 1pc

Furnace door block

 1pc

Stainless steel clamp

 1pc

Thermal gloves

 1pair

Alumina crucible

 5pcs

Heating element

GF11Q-B: Kanthal resistance wire

GF11Q:  Kanthal resistance wire

GF14Q:  Sic

GF16Q:  MoSi2

GF17Q:  MoSi2

 2pcs

Spare fuse

2pcs

485 computer interface port

 1set

Water pump

 1pc

Owner manual

 1pc

Shimaden fp93 temperature controller software and manual

 1pc





Atmosphere furnace
