Φ15 mm Aluminum Foil Coated Lithium Iron Phosphate (LFP) Circular Single-Sided Electrode Sheet
TMAX provides the dry electrode film for supercapacitors manufacturing and research.
Electrode Sheet
Application: Lithium-ion Battery Cathode Material
Product Code & Packaging
| Product Code | Packaging |
|---|---|
| 01013602 | Φ15 mm / 100 pcs per box |
Description:
Main Specifications
Item |
Specification |
Electrode Size |
Φ15 mm |
Coating Type |
Single-sided coating (calendered) |
Total Thickness |
70–90 μm |
Current Collector Thickness |
16 μm |
Coating Areal Density |
13.5 ± 0.2 mg/cm² |
Current Collector Areal Density |
4.22 mg/cm² |
Active Material Content |
95.4 wt.% |
Voltage Range |
2.5–3.7 V |
Specific Capacity |
150 mAh/g (0.1C) |
Compaction Density |
2.0 ± 0.1 g/cm³ |
Packaging and transportation
Packaging material: cardboard box.
Packaging method: Vacuum sealed packaging.
Pay attention to moisture-proof, waterproof, and light proof storage.
Transportation requirements: prevent collision, compression, moisture, sun protection, and damage.
Storage environment(electrode packaging in sealed state)
Temperature: -40 ℃~60 ℃
Relative humidity: 75% RH Max
The shelf life: 12 months.

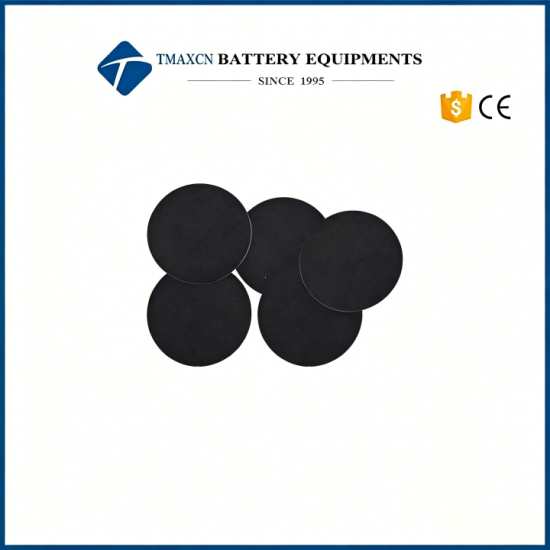

Product Display：
Production Machine:
Package:
