Quenching Tube Furnace

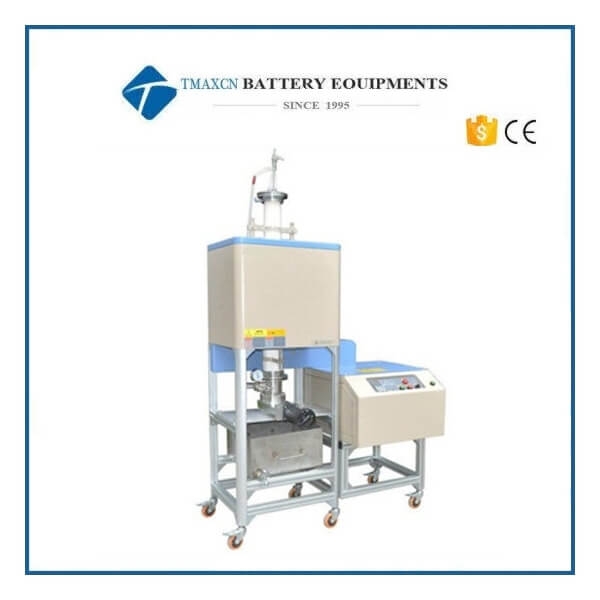

1500 Quenching Tube Furnace for Laboratory Material Phase Transformation Study

  • Model Number:

    TMAX-VTL1500
  • Dimension(L*W*H):

    1100*800*1900mm
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details


1500 Quenching Tube Furnace for Laboratory Material Phase Transformation Study


Specification

Model

VTL1500-I

VTL1500-II

VTL1500-III

Power

6KW

6KW

6KW

  Tube size

Dia60(OD)X1000mm

Dia80(OD)X1000mm

Dia100(OD)X1000mm

Dimensions(LXDXH)

1100*800*1900

1100*800*1900

1100*800*1900

Supply voltage

220V/380V

Phase

single phase

Heating element

 silicon carbide rod

Tube

Corundum tube: high purity AIO ceramics (containing) 99.5%

Control mode



 Use Yudian program temperature control instrument (standard)

1. 30-segment program temperature control intelligent PID adjustment.

2. With over-temperature protection, the electric furnace heating circuit will be automatically cut off when the temperature is over-temperature or when the couple is broken. ON, the ON light on the panel is off, the OFF light is on, and the electric furnace is limitedly protected).

3. With 485 communication interface (standard with optional software)

4. It has a power failure protection function, that is, when the furnace is powered on after the power is turned off, the program does not start from the initial temperature, but starts from the furnace temperature when the power is turned off.

5.The meter has the function of temperature self-tuning

1500 1700C Quenching Tube Furnace for Laboratory Material Phase Transformation Study

(replacement of imported instruments requires additional payment and purchase)

1500 1700C Quenching Tube Furnace for Laboratory Material Phase Transformation Study

FP93 control instrument(SHIMADEN)       EUROTHERM      touch screen

Break couple protection

and display

Yes

Over-temperature protection

Yes

Overcurrent protection

Yes

Control precision

+/- 1 ℃

Flip-flop

·                               Phase-shifted trigger

Electric appliance

Zhejiang chint

Silicon controlled

·                                    106/16E SEMIKRON

Max. temp

1500 ℃

Rated temp

1450 ℃

Heating rate

≤20 ℃/ Min (can be modified as required)

Recommended heating rate

≤5℃/ Min

·Thermocouple Type

S type

Heating length

390mm

Electrical certification

CE

Ambient surface temperature

≤45℃

Vacuum seal flange and valve

1.A stainless steel sealing flange and stainless steel needle valve are installed on the top of the furnace body

2.The bottom of the furnace body is equipped with a flapper valve, a non-mechanical pressure gauge, and a KF25 vacuum interface for connecting a vacuum pump

3. Vacuum degree: The vacuum degree of the mechanical pump can reach below 1Pa. If you want to obtain a higher vacuum degree, you can choose a domestic or imported high vacuum unit.

Optional: The following accessories increase vacuum efficiency

4.KF25 stainless steel bellows, KF25 quick remover clamp

5. Optional anti-corrosion digital vacuum gauge with a measurement range of 3.8x10-5 to 1125Torr. No need for coefficient conversion due to different types of measurement gases

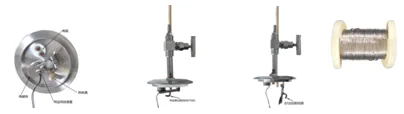

6. At the top of the flange is installed an electromagnet sample hanging device that can withstand a maximum of 1000g. As shown in Figure 1, the sample is hung on the hook through the hanging wire, as shown in Figure 2. Click the control button of the sample hanging device of the electromagnet. The hanging wires fall together into the quenching box, as shown in Figure 3. Before releasing the sample, 5 PSI of argon must be flushed in and the manual flapper valve at the bottom of the furnace tube opened. Figure 4 is the hanging wire



   Pic 1               Pic 2                   Pic 3               Pic 4

Quenching container



1.A stainless steel box for quenching liquid is fixed at the bottom of the furnace tube

2. A large manual plug valve is installed between the bottom of the furnace tube and the liquid box

Guarantee period

One year warranty, lifetime technical support

Special Note:

1. Consumable parts such as heating elements, furnace tubes, sample crucibles, etc. are not under warranty.

2. Damage caused by the use of corrosive gases and acid gases is not covered by the warranty.



Precautions

1. The air pressure in the furnace tube cannot be higher than 0.02MPa.

2. Due to the high internal pressure of the gas cylinder, when introducing gas into the furnace tube, a pressure reducing valve must be installed on the gas cylinder. In order to ensure safety, it is recommended to use a pressure lower than 0.02 MPa.

3. When the furnace tube used is corundum tube, when the furnace temperature is higher than 1500 ° C, the furnace tube cannot be in a vacuum state, and the pressure in the furnace tube must be equal to the atmospheric pressure.

4. The gas flow into the furnace tube needs to be less than 200SCCM to avoid the impact of the cold air flow on the hot furnace tube.

5. For the experiment of sample heating, it is not recommended to close the suction valve and inlet valve of the flange end of the furnace tube. If you need to close the gas valve to heat the sample, you must always pay attention to the indication of the pressure gauge. If the air pressure is greater than 0.02MPa, the exhaust valve must be opened immediately to prevent accidents (such as furnace tube rupture, flange flying out, etc.).

6. Do not use graphite crucibles in alumina tubes.

7. MoSi2 heating element should not be used at low temperature (400 ℃ -700 ℃) for a long time, otherwise the heating element may be damaged.

 8. The sample is fixed on a suspension hook at the bottom of the flange by a high temperature resistant wire. (Remarks: The maximum use temperature of the wire that is standard with the equipment of our company is 1200 degrees. If the customer's use temperature is above 1200 degrees, you can buy our company's special high temperature resistant wire, please contact us for details)

tube furnace
