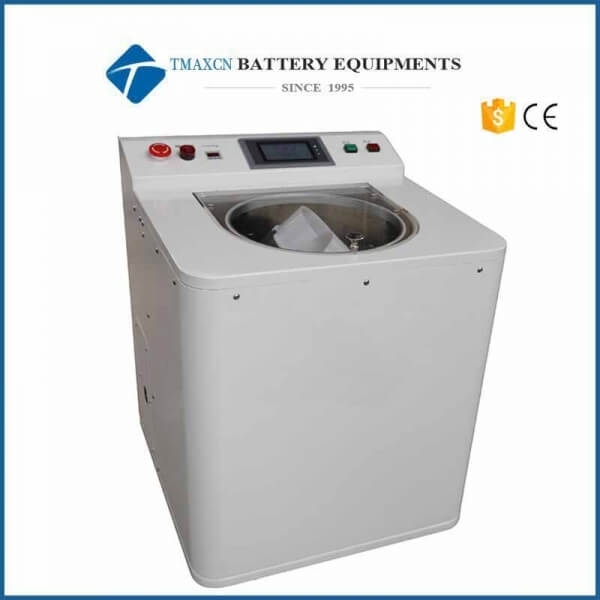

Vacuum Centrifugal Mixer

1500mL Vacuum Planetary Centrifugal Mixer for Lithium Battery& Mixer with Two jars & Independent Speed Controlled & Mixer with Two jars

  • Model Number:

    TMAX-ITT1500S
  • Dimension(L*W*H):

    585L*705W*800H
  • Net Weight:

    150KG
  • Compliance:

    CE Certified
  • Warranty:

    One year limited with lifetime support
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

1500mL Vacuum Planetary Centrifugal Mixer for Lithium Battery& Mixer with Two jars & Independent Speed Controlled & Mixer with Two jars



Product description:

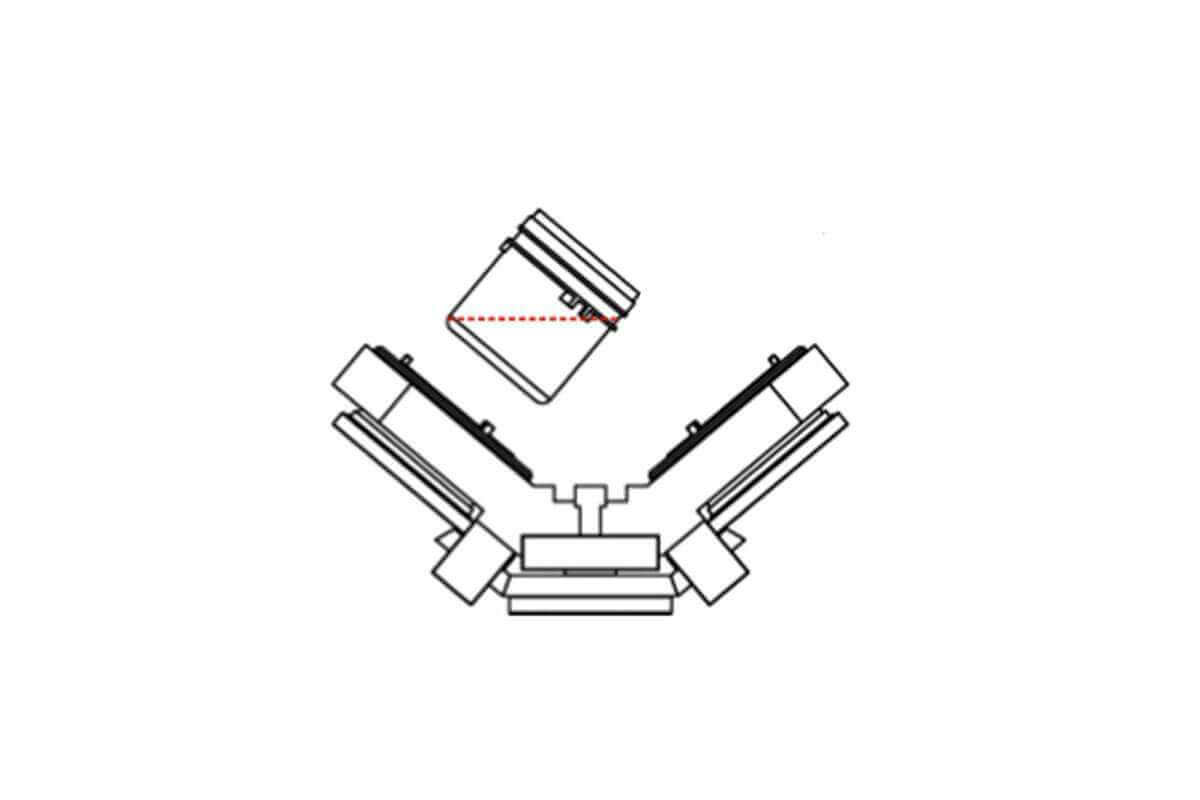

1: The material is evacuated while rotating and revolving in the container, and the mixing, dispersion and defoaming of high-viscosity materials can be realized in a few minutes.

2: Spiral bevel gear transmission: its stable and low-noise mechanical transmission. The machine has a low failure rate and a long life.

3: The overall boom is easy to maintain.

4: Rodless mixing is pollution-free and does not damage the material properties.

5: Standard machine 0~2000RPM, high speed and high efficiency. Special requirements can be customized up to 3000RPM machine.

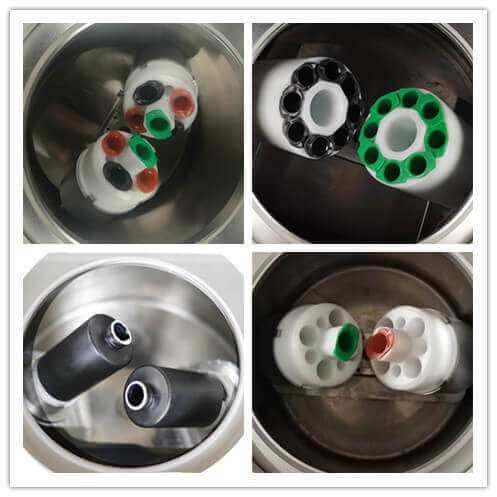

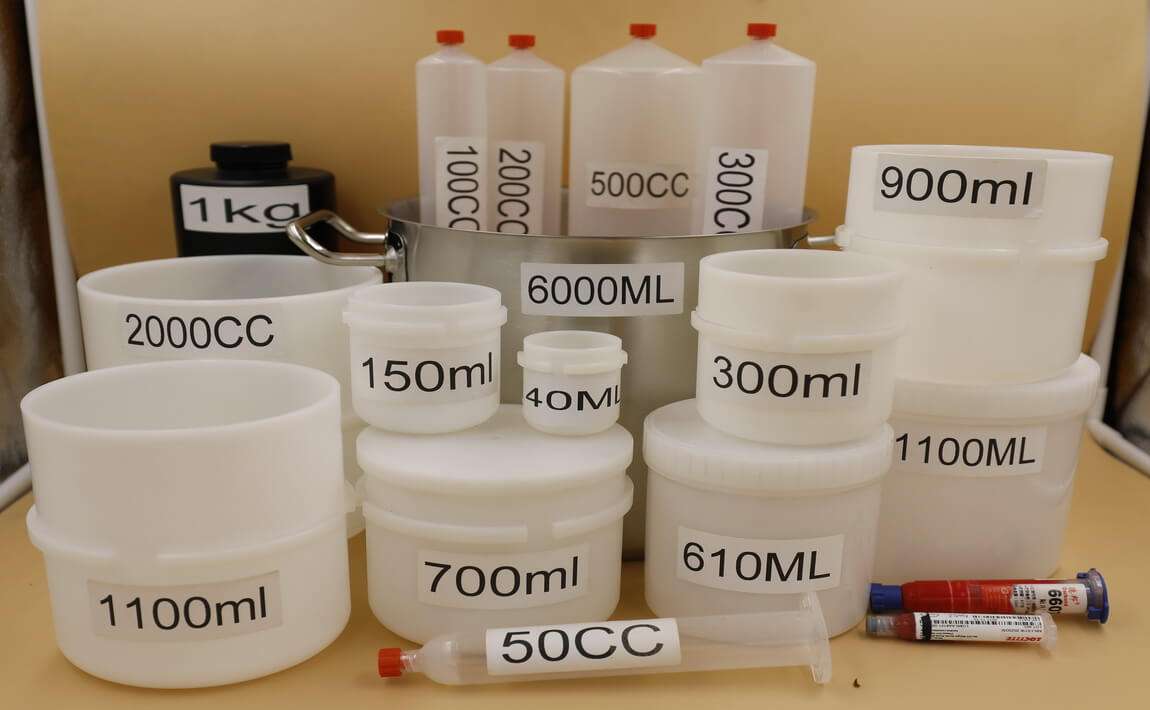

6: Various fixtures can be customized according to customer requirements to meet customers' requirements for direct use of different packaging.

Applicable industries: semiconductor lighting (LED), photovoltaics, lithium batteries, capacitors, fine chemicals, etc.

Applicable materials: various particles (fluorescent powder, chemical powder, metal micro particles, etc.), liquid glue (silica gel, various adhesives, conductive glue, printing ink, etc.), metal paste (silver paste, aluminum paste, etc.).



Features introduction

1. Main shaft: Made of Swiss ASSAB S136 mirror die steel, after multiple heat treatments, the overall hardness reaches HRC62 degrees. The shaft is integrally ground, and the total runout does not exceed 1 wire. The sealing surface is then mirror-grinded to achieve a surface roughness of 0.02um mirror effect. The friction coefficient is extremely low, and the wear of the sealing ring due to its own super wear-resistant is minimal, and the high sealing performance of long life is realized. This is one of the magic weapons for many of our customers to maintain negative pressure above -98Kpa after several years of use.

2. Sealing ring: The ultra-wearable sealing ring of German Bayer company is adopted, and the wear resistance can reach a line speed of 40M/S. The line speed of our equipment is only 4M/S at 2000 rpm. The pressure can withstand 20KG/c. This is the second magic weapon for many of our customers to maintain negative pressure above -98Kpa after several years of use.


3. Vacuum pump: a pump with forced oil circulation lubrication after adopting international advanced technology to improve, with good lubrication, low wear and long life. This is the third magic weapon for many of our customers to maintain negative pressure above -98Kpa after several years of use.

4. Gear wheel: adopts automobile spiral bevel gear structure, smooth running, low noise and long life.

5. Rotating arm: It adopts an integral rotating arm, which is all made of American imported aviation magnesium-aluminum 7075, which ensures the accuracy and stability of the product, and the center error is not more than ±0.02. The interchangeability is high, the machine arms of the same model can be interchanged at will, and the maintenance is convenient.



Specification parameter

Name

Vacuum centrifugal stirring defoaming machine

Equipment type

ITT-1500S two cups

Container  Capacity

1500ml*2Cup)

The optimal capacity of mixing material

100-900ml*1Cup)

Operation  Type

Human-machine   Interactiom Mode

Revolution Speed

100-2000RPM

Rotation Speed

Invariablenes

Vacuum

240L/Minute,APROX.-98KPa

Storage Program

5 storage programs   (each program can be set to five steps)

Protection

Door Cover,Breakdown,   Overload

Dimension (mm)

585L*705W*800H

PowerVoltage

0.5-1.0KW,220V

Weight

Net Weight:150 KG

Power  Supply

Uniphase),AC220V.50-60Hz

Clamp

Option

Syringe

Max 50CC
