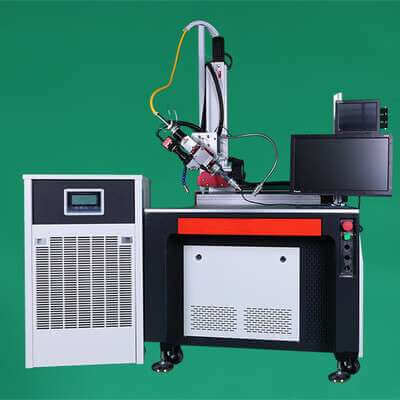

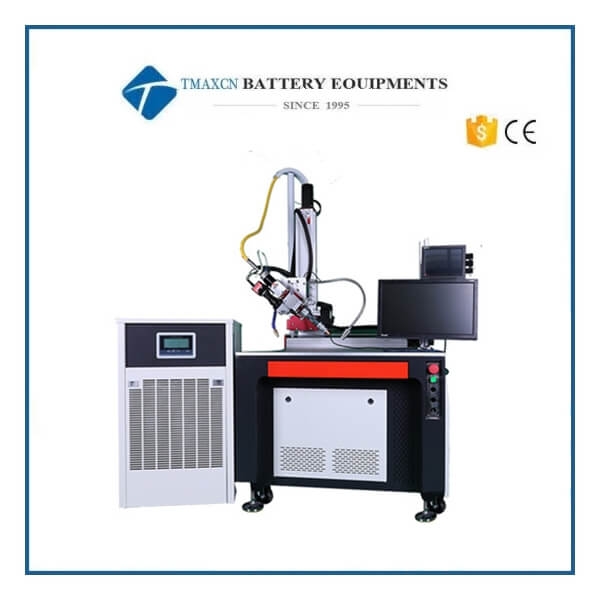

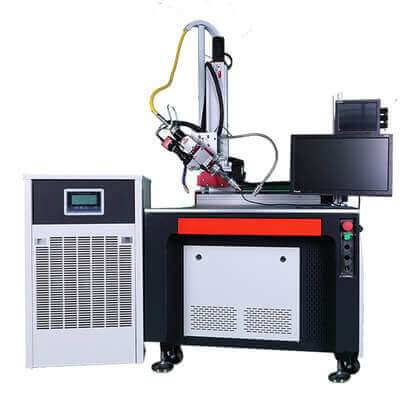

1500W Fiber Laser Welder for Thick Nickel Strip Welding

The laser adopts high-performance fiber laser with excellent optical mode, which can easily obtain very high focus optical power density and is more conducive to the realization of welding. Perfect protection device, continuous pulse output mode modulation, laser average output power 1500W.

Specifications

Rated output power (W)	1500W
Operating mode	continuous
Power adjustment range (%)	0～100
Center wavelength (nm)	1080
Welding thickness: carbon steel plate (235)	0.5～5.5mm
Welding thickness: stainless steel (304)	0.5～5mm
Welding thickness: galvanized sheet	0.5～4.5mm
Output power stability	<3%
Maximum modulation frequency (kHz)	continuous
Indication red light output power (mW)	0.5～1
Beam quality (㎡)	<1.2
Divergence angle (rad)	<0.1
Fiber core diameter (μm)	100
Output fiber length (m)	15
Maximum power consumption (W)	5600
Machine size (mm)	950*600*750
Weight (kg)	<260
cooling method	Water cooling
Electricity running cost (8 hours / day)	56kwh
Consumables running cost (8 hours / day)	0
