Humidity Alternating Temperature Test Chamber

150C Humidity Alternating Temperature Test Chamber

  • Model Number:

    TMAX-408-D
  • Compliance:

    CE Certified
  • Warranty:

    One year limited with lifetime support
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details


150C Humidity Alternating Temperature Test Chamber

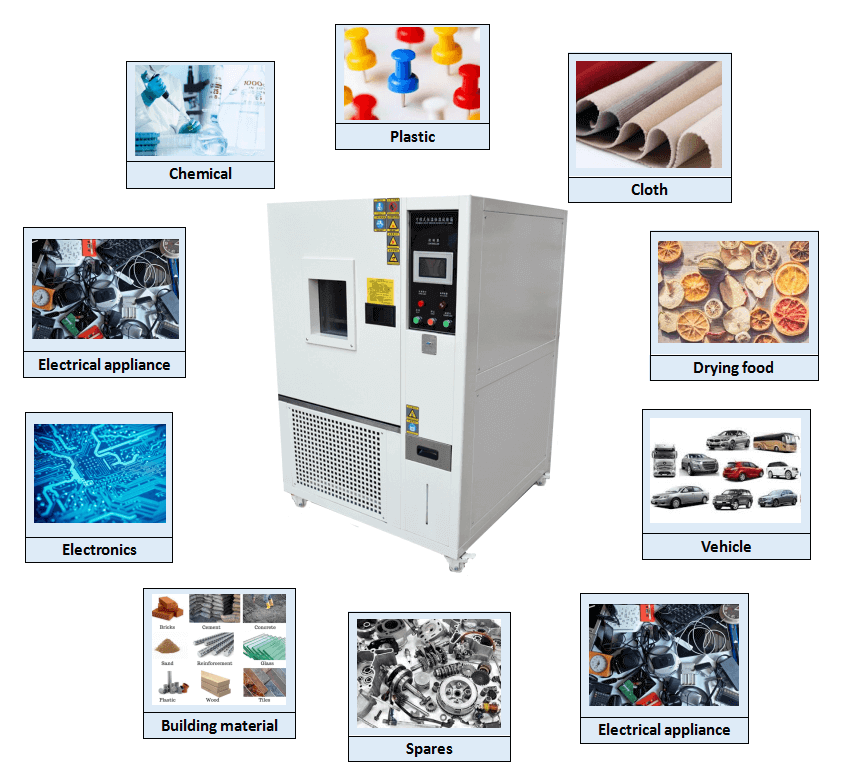

The temperature and humidity test chamber can accurately simulate the complex natural environment of low temperature, high temperature, high humidity, low temperature and low humidity, which is suitable for the product detection of plastics, electronics, food, clothing, vehicles, metals, chemicals, building materials and other industries.

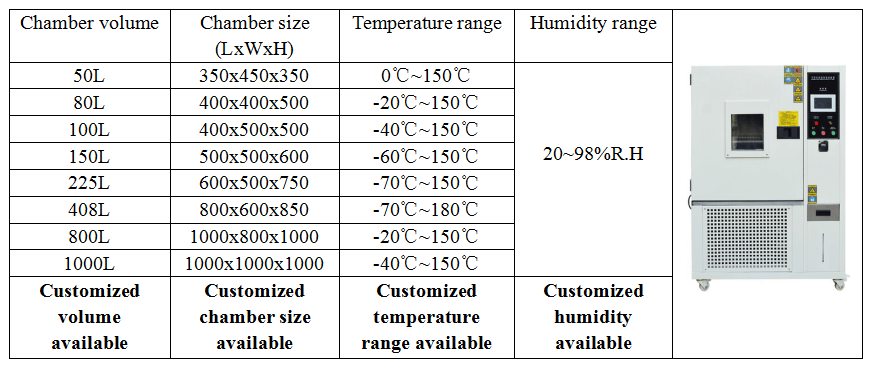

Technical parameter

Model

TMAX-50L

TMAX-80L

TMAX-225L

TMAX-408L

TMAX-800L

TMAX-1000L

Inner chamber size (CM)

35*45*35

50*40*40

50*60*75

80*60*85

80*100*100

100*100*100

Power (- 40 ℃)

4.5(KW)

5.0(KW)

6.0(KW)

7.0(KW)

8.5(KW)

9.5(KW)

Performance











Temperature range

A:-20℃~150℃

B:-40℃~150℃

C:-60℃~150℃

D:-70℃~150℃

E:-70℃~180℃

Customized temperature is available

Humidity range

20~98%R.H

Customized humidity is available

Fluctuation / uniformity

±1.5℃/±2℃

Humidity deviation

±3%R.H

Heating rate

About 1.0~3.0℃/min

Cooling rate

About 0.5~1.0℃/min

Control system

















Controller

"Temi" brand programming temperature instrument, HD real color LCD touch screen

Accuracy range

Setting accuracy: temperature 0.1 ℃, humidity 1% R.H,

Indication accuracy: temperature 0.1 ℃, humidity 1% R.H

Temperature

and humidity sensor

Platinum resistor PT100Ω/MV

Heating system

Fully independent system, Ni Cr alloy electric heating heater

Humidification system

External isolation type, all stainless steel shallow surface evaporation humidifier

Dehumidification system

Adopt the dew point temperature laminar contact dehumidification method of evaporator coil

Water supply system

Humidification water supply adopts automatic control, and can recover residual water, save water and reduce consumption

Refrigeration system

French "Tecumseh" totally enclosed air-cooled single-stage or cascade compressor refrigeration mode

Circulation system

Motors with low noise and temperature resistance - multi blade centrifugal fans

Materials







Outer box material

High quality carbon steel plates. Phosphorized electrostatic spray or SUS304 stainless steel

Inner box material

Stainless steel high quality mirror plate

Thermal insulation material

Polyurethane rigid foam / superfine glass fiber wool

Door frame insulation

Double layer high and low temperature aging resistant silicone rubber door sealing strip

Standard configuration

Multi layer heating defrosting with lighting glass window 1 set, test sample rack 2, test lead hole 1

Safeguard

Leakage, short circuit, overtemperature, water shortage, motor overheating, compressor overpressure, overload, overcurrent protection

Supply voltage

AC220Vor 380V±10% 50±0.5Hz

Operating ambient temperature

5℃~+30℃ ≤85%R.H
