Cold Isostatic Pressing

15T CIP (Cold Isostatic Pressing) with 22mm ID Vessel

  • Model Number:

    YLJ-CIP-15
  • Net Weight:

    90 Lbs
  • Compliance:

    CE Certified
  • Warranty:

    One year limited standard warranty
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

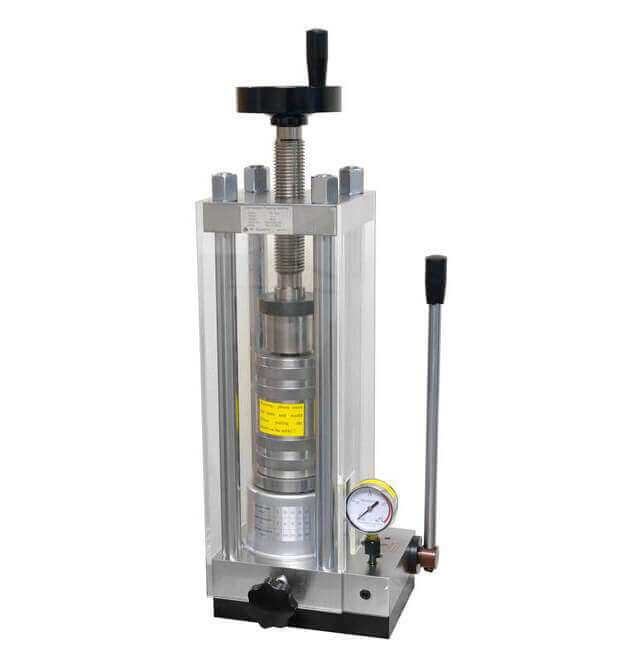

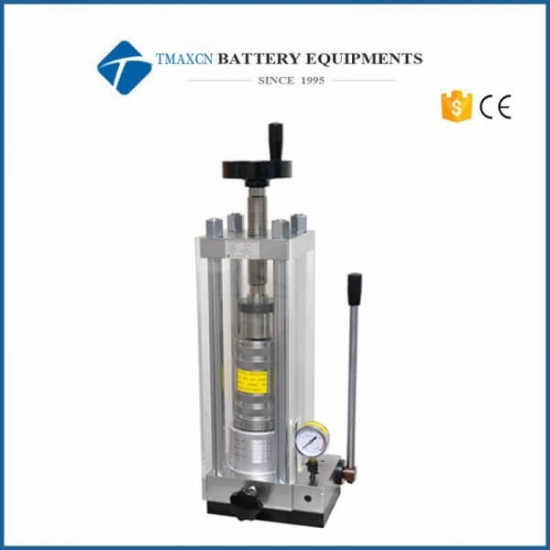

15T CIP (Cold Isostatic Pressing) with 22mm ID Vessel


YLJ-CIP-15 is a CE Certified and the smallest cold isostatic pressing (CIP) in the world.  It has a 22mm ID hydraulic chamber made by ultra strength alloy, which can provide isostatic pressure up to 300 Mpa via a 15T hydraulic press.  It is an excellent tool to prepare high-density compound pellet and small diameter rod.  CIP-15 has the small footprint and can be placed in glove-box to prepare air-sensitive materials.  A plastic protection cover is included.


Specifications:

Pressure Vessel

  • 22mm ID. x 90mm Height
  • max available sample height 70mm
  • Made of high strength alloy with stainless steel protective jacket

Max. Hydraulic Pressure in Chamber

300 Mpa ( 43500 PSI)

Gauge Pressure Value to
Force Conversion


Gauge Displayed Pressure Value (Mpa) for 87 mm Dia. Hydraulic Press

5

10

15

20

Actual Force Applied on the Hydraulic Press (Ton)

3

6

9

12

Pressure Applied to CIP Vessel ( Mpa) vs 22mm vessel cylider

77

155

232

310

  • Notes:
    • The actual force applied on the Vessel Cylinder (Ton) equal to the force applied to your working piece
    • For calculating the actual pressure (Mpa) applied on your working piece, please follow the equations in below:

          P = T/πr^2 x g x 10

  • P: Pressure (Mpa) applied on your working piece
  • T: Force (metric ton) Applied on the Pressure Vessel Cylinder
  • g: Standard gravity. g ≈ 9.8 m/s2
  • π: ~3.14
  • r: Radius (cm) of the Pressure Vessel (1.1 cm)
  • *1000 Kg = 1 Metric Tone; 1 Mpa ≈ 10 Kg/cm2

Hydraulic Machine

15T

Botton Cylinder Traveling Distance

20mm maximum

Operation Temperature

10 - 40°C

Dimension of Working Space


 D1: 100mm   D2: 85mm   D3: 90mm
 H1: 310mm       H2: 290mm

Overall Dimension
(including 15T Presser)

    265mm (W) x 230mm (D) x 650mm (H)

Net Weight

 90 Lbs

Compliance

 CE Certified

Warranty

 One year limited with lifetime support

Application Notes

  • You may use the liquid rubber to seal the sample to be CIP
  • You may use the machine as a dry pressing to order pressing die

Warning

  • Never let the press hold the target pressure be longer than 8 minutes,
  • It's normal that the target pressure decreases a little bit during the pressure holding time, so never press the red nor the green button in this period.
  • Pressure must be completely released first, then make sure the hand wheel and the pressure release valve has been tightened before pressing
  • Do not raise the bottom cylinder (piston) more than it's maximum traveling distance. (20mm)

Packing List:

Name

Qty

1

Main machine (15T Electric hydraulic pressing machine)

1 unit

2

Cold isostatic pressing dies (locating plate, top and bottom pressing die)

1 set

3

Seal kits

1 set

4

Black Rubber Rings O.D 7/8"

3 pcs

5

Pushing Rod Handwheel

1 pc

6

Hydraulic pressing oil

1 bottle

7

Socket Head Screw Driver

1 pc


Cold Isostatic Pressing
