165000pcs/H High Speed Automatic Rotary Tablet Press Forming Machine

165000pcs/H High Speed Automatic Rotary Tablet Press Forming Machine

Introduction

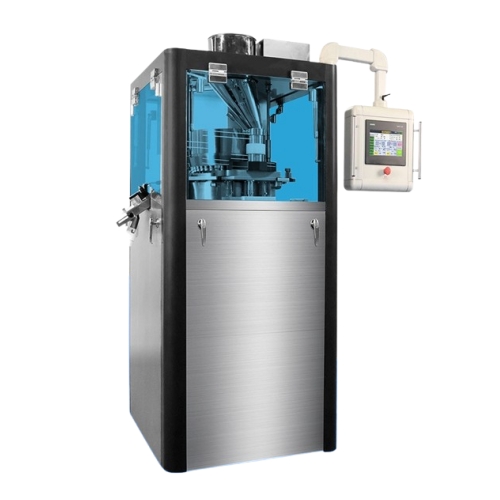

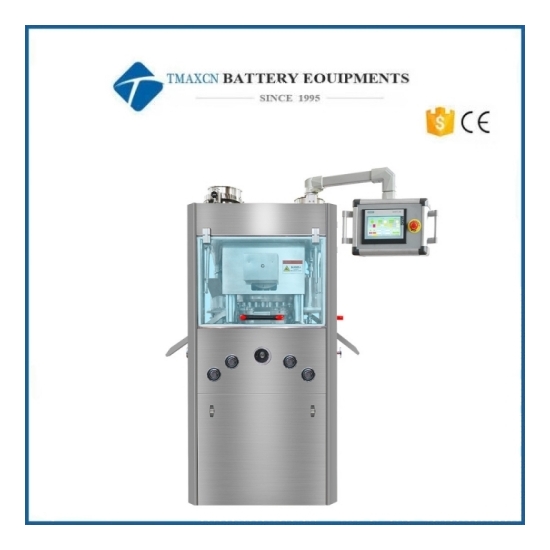

ZP-26/40D is a seventh-generation fully automatic high-speed tablet press that continuously presses powders and granules into round tablets, special-shaped tablets, two-color tablets, and ring tablets. It is an industrial 4.0 version of the intelligent tablet press that integrates automatic adjustment of powder filling volume, real-time pressure monitoring, recycling of excess powder, and rejection of single tablets, and meets cGMP production requirements.

Main Features

• Automatic tablet weight adjustment system. The servo motor controls the filling track without handwheel adjustment. The system can automatically increase or decrease the filling amount according to the set value, and the average tablet weight accuracy is <±2%.

• The real-time online detection and rejection system to automatically identify and promptly reject products with unqualified tablet weight, which can achieve continuous rejection and accurate single-piece rejection.

• The machine has extremely high processing accuracy, fast running speed and low noise. The turntable runout is <0.04mm, the upper and lower mold hole diameter tolerance is<0.013mm, the surface roughness is <0.8um, the middle mold hole diameter tolerance is <0.017mm, and the production qualified product rate is 10o%. Material loss is <1%.

Technical parameters
