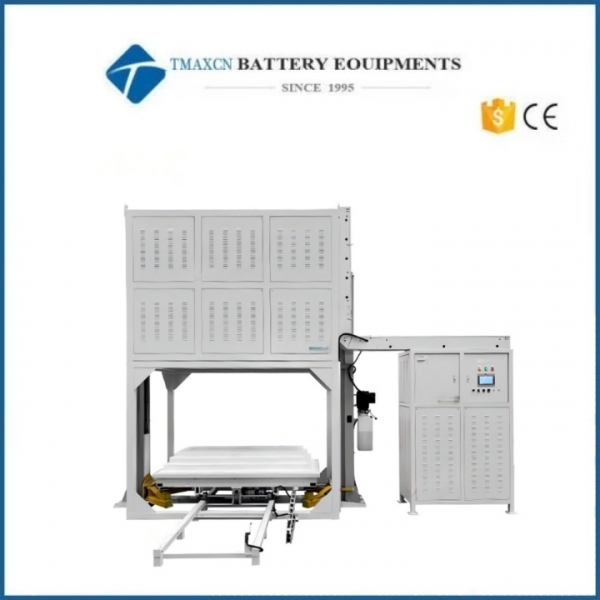

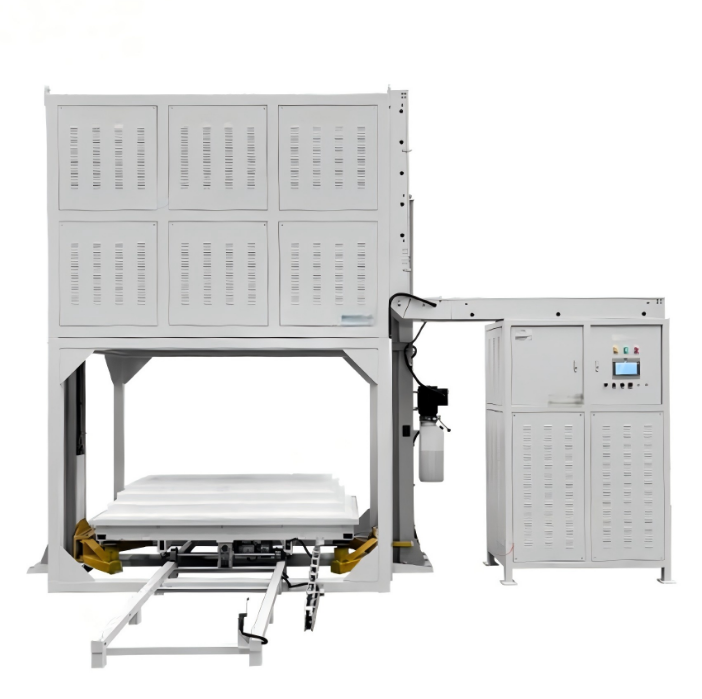

1700C Vertical Bottom Loading Elevator Sintering Furnace





The picture is just for reference



Main parameter	PN: SX2-XY-17TP Max.design Temp: 1700C Continue working temperature:0-1600C  Chamber size:D600*W600*H600mm Voltage:380V 3 phase 50/60HZ Heating rate:suggest 0-5C/min, Power:96kw(subject to design) Heating element: high quality y Mosi2 heating element(four sides heating) Thermocouple：B type Temperature accuracy: ±1℃
Furnace Door Loading	Electric Bottom Furnace Door Lifting Material can be manually removed from the furnace along the track (in front of the furnace) for loading and unloading.
Furnace Chamber material	Adopt the advanced light alumina ceramic fiber, with excellent thermal insulation effect, light weight, high temperature resistance. The energy saving effect is 60-80% of the old electric furnace.
Furnace chamber design	Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace.
Furnace shell  structure	Electric furnace shell material is carbon steel materials,adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury.
Temperature controlling	Adopt international advanced temperature controller, You can set 10 programs with 30 segments, view historical records and curves, and export historical data using a USB drive with PID self-tuning, automatic temperature rise, automatic temperature drop, no duty.
Temperature control security	The electric furnace adopts integrated circuit, module control, double circuit protection (ultra-high temperature protection, coupling protection, overcurrent protection, and other protection functions) to make the electric furnace work stable and reliable, safe.
Warranty	One year limited warranty with lifetime support, excluding heating element,cooling fans,thermocouple damaged by user. Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.
Standard Package Accessories:
Electric Furnace		1 set
High temperature gloves		1 pair
Spare Heating element		2pcs
Crucible clip		1 pc
User manual		1 book
Temperature controller cabinet		1set
