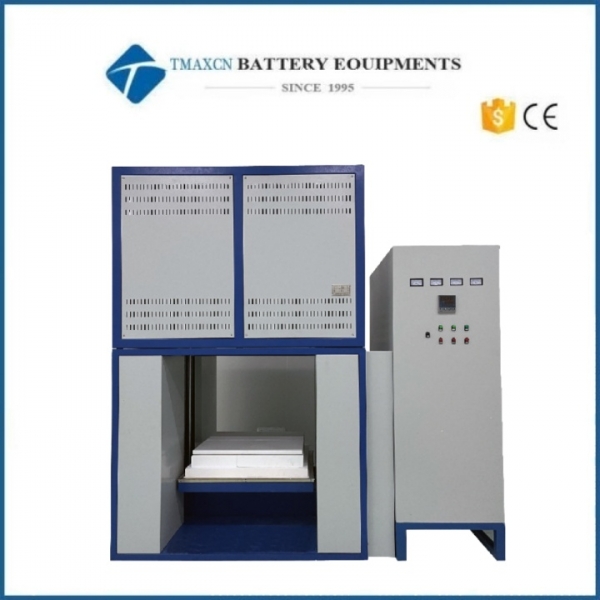

1800C 125L High Temperature Vertical Elevator Type Furnace



The picture is just for reference



Main parameter	PN: SL2-17TP Max.design Temp:1800C Working temperature:0-1700C Chamber size:D500*W500*H500mm(125L)   Voltage:380V 3 phase Heating rate:0~5  Degree/Min Heating element:Mosi2 heating element Thermocouple：B type Temperature accuracy: ±1℃
Loading way	Bottom loading,Electric button lift
Appearance design	The electric furnace adopts humanized design, beautiful and easy to operate, and the outer layer of paint is sprayed with high temperature baking technology. High temperature resistance, oxidation resistance, acid and alkali resistance. Color selection is aging resistant tone, will not cause the appearance color fade due to a long time of use.

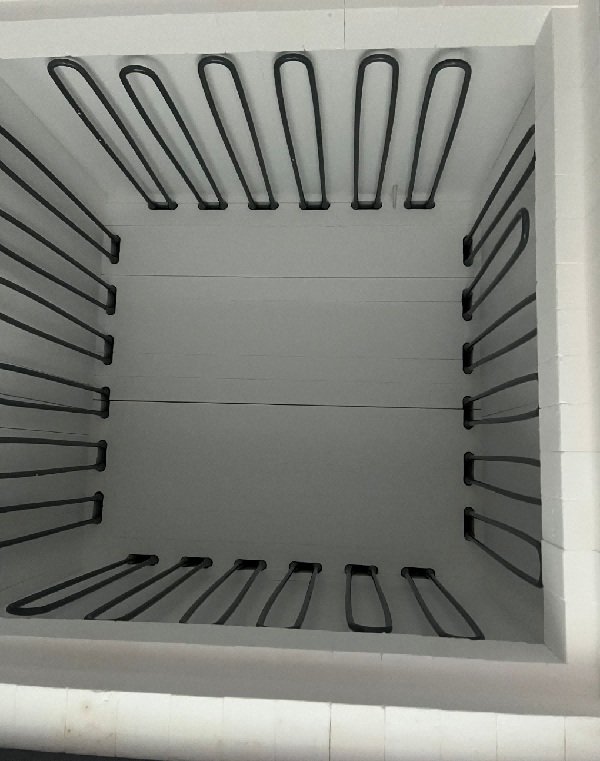

Furnace Chamber material	Adopt the advanced light alumina ceramic fiber, with excellent thermal insulation effect, light weight, high temperature resistance, The energy saving effect is 60-80% of the old electric furnace.
Furnace chamber design	Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace.
Furnace shell  structure	Electric furnace shell adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury.
Temperature controlling	Adopt international advanced temperature controller, with 30 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty.
Temperature control security	The electric furnace adopts integrated circuit, module control, double circuit protection (ultra-high temperature protection, coupling protection, overcurrent protection and other protection functions) to make the electric furnace work stable and reliable, safe.
Warranty	One year limited warranty with lifetime support, excluding heating element,cooling fans,thermocouple damaged by user. Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.
Standard Package Accessories:
Electric Furnace		1 set
High temperature gloves		1 pair
Crucible clip		1 pc
Spare heating element		2pc
User manual		1 book
