Vacuum Filling Machine

18650 21700 Cylindrical Cell Electrolyte Filling Machine

  • Model Number:

    TMAX-JK-ZYJ-02
  • Input Power:

    1500W
  • Compliance:

    CE Certified
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

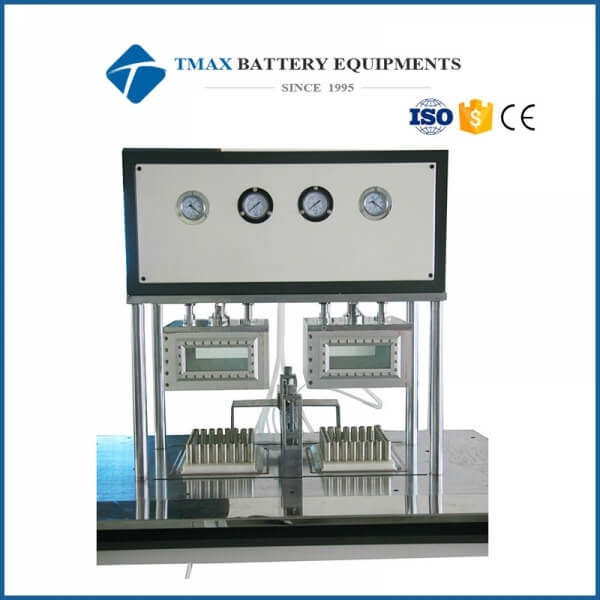

18650 21700 Cylindrical Cell Electrolyte Filling Machine


Ⅰ、Introduction

1 TMAX-JK-ZYJ-02 Vacuum linear filling machine is used for lithium battery electrolyte injection with high precision and simple operation.


2 This vacuum filling machine can be used for various cylindrical cell cases including CR123,18650 26650, 32650 and AA with changing clamps.


Ⅱ、Specification

Model

Vacuum Filling Machine TMAX-JK-ZYJ-02

Source voltage

110V-220V AC, 50/60Hz Single Phase

Power

1500W

Warranty

One year limited and lifetime support

Suitable battery model

18650 / 26650 / 32650, For all kinds of cylindrical battery

Advantages

1 Customized die for all kinds of cylindrical cell types is available according to request

2 Adopt PLC and man-machine interface centralized control, easy operation.

3 Filling speed and times can be set

4 All the parameters such as vacuum time, air input time,

filling quantity and battery distance can be adjusted freely.

5 Vacuum box for static control independently

Vacuum filling accuracy

±0.02g

Vacuum filing time

1-10times adjustable

Vacuum filling quantity

0-7g

Vacuum degree

-0.1Mpa

Air supply

0.3-0.6MPa

Working clamps

18650 clamps battery tray 10 rows 8 columns (It can be customized)
