2 to 8 Workstation Jar Miller with Timing Control Function

Product introduction

The jar mill ball mill, also known as the roller mill, is a super-fine grinding and mixing equipment used in laboratories and small-batch production. This machine is aesthetically pleasing and novel, with a compact structure, convenient operation, high working efficiency and uniform grinding particle size. It is an ideal equipment for scientific research, teaching, experimentation and production. It can be widely used in industries such as electronic materials, magnetic materials, biomedicine, ceramic glazes, metal powders, non-metallic minerals, and new materials. This machine has a novel appearance, an advanced structure and is easy to use. The tank speed of this machine is optimally designed. The tank is driven to rotate by rubber rollers, which enables the medium balls inside the grinding tank to form a inclined flow motion to disperse the materials and achieve an appropriate grinding effect. The jar mill (roller mill) is controlled by a digital time controller. The working time can be set at any time as needed, and it has the functions of pause and accumulation timing control. The operation is time-saving and labor-saving, and it is easy and convenient.

Working principle

When the tank mill ball mill is in operation, the grinding media and materials inside the cylinder are lifted to a certain height along with the rotation of the cylinder. Due to the effect of gravity, they fall off the cylinder wall along a parabolic trajectory. Under the impact of the grinding media and the friction and shearing effects generated by the rolling and sliding of the grinding media, the materials are crushed.

Product feature

1. Multiple samples can be ground simultaneously.

2. It can be operated intermittently or continuously.

3. It can be set to operate at regular intervals as per requirements.

4. It is suitable for fine grinding of materials, with high crushing efficiency.

5. The load-bearing rubber rollers of the tank are made of special materials and are durable.

Product parameter

Remarks:
1. Customized model in different sizes is acceptable.
2. Customized model with safety cover is available.

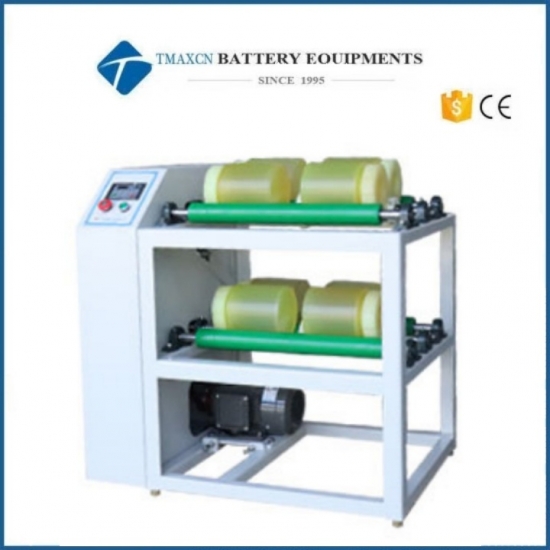

Product Picture
