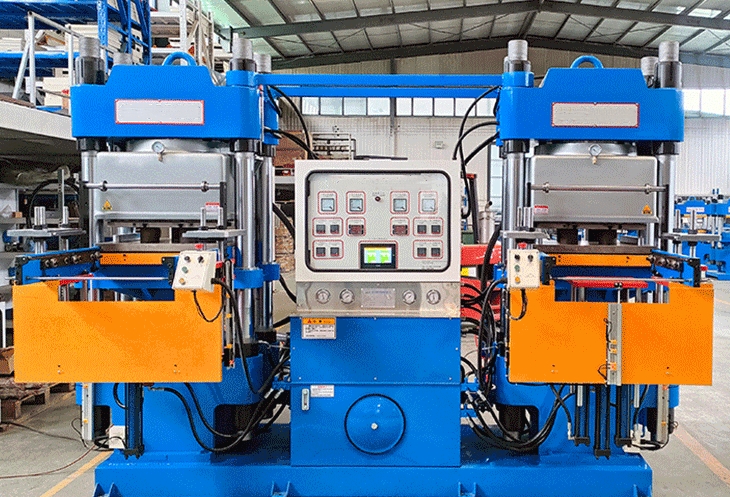

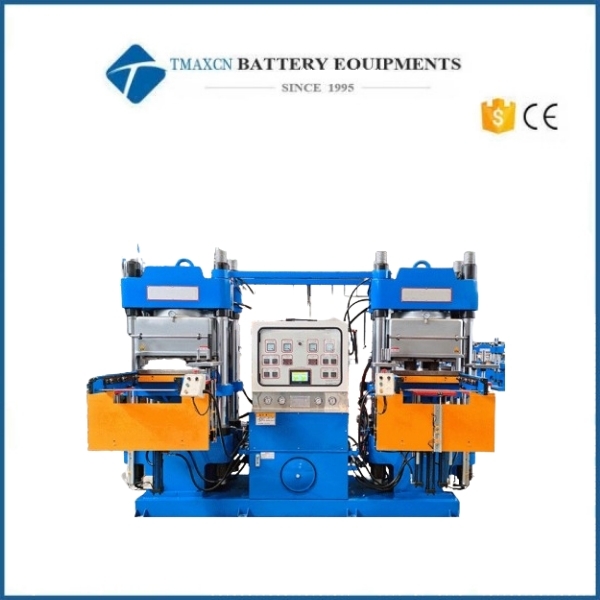

200T-350T Automatic Solicone Moulding Flat Vulcanizer Press Machine With Double Workstation

Clamping force (T)

200

250

300

350

Stroke (mm)

300

300

300

300

Hot plate distance (mm)

300-430

300-430

300-430

300-430

Work platform (mm)

Upper: 510*510

Lower: 560*560

Upper: 600*600

Lower: 650*650

Upper: 600*600

Lower: 650*650

Upper: 700*700

Lower: 750*750

Main cylinder diameter (mm)

360

400

450

475

Vacuum chamber travel (mm)

200

200

200

300

Motor power (KW)

9.5*2

9.5*2

9.5*2

11*2

Electrical power (KW)

16*2

18*2

18*2

21*2

Vacuum pump (KW)

Double heads(200m2/h)

Single  heads(100m2/h)

~

~

~

Weight (KG)

Double head 9000

11300

13300

16500

Type of mold opening

Rise/Fall - Mold entry and exit - front ejection mold opening - (Middle mold opening - ejection device)

Dimensions (L*W*H, m)

3.2*2.4*2.6

3.45*2.6*2.75

3.45*2.6*2.75

4.5*2.8*2.95
